    Paper Printing Data Colour Spectrophotometer Handheld Elegant Appearance

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NS800
    Certification : CE, TUV, FCC, ISO9001, RohS
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 500 Units per Month
    Delivery Time : 2-5 work days
    • Product Details
    • Company Profile

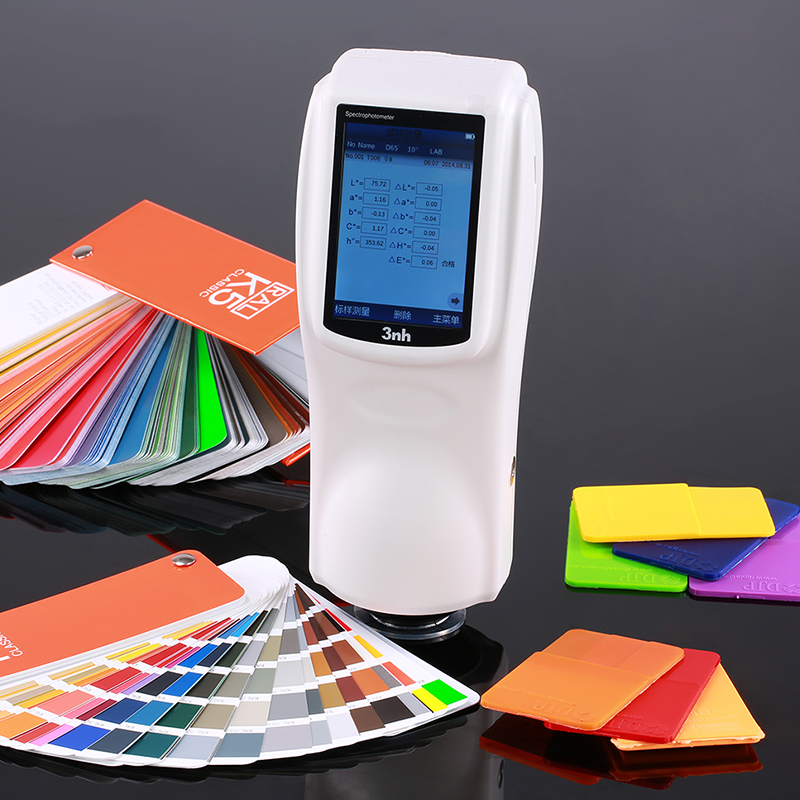

    Paper Printing Data Colour Spectrophotometer Handheld Elegant Appearance


    45°/0 Paper Printing Handheld Spectrophotometer with Color Managerment Software SCQ8 NS800


    NS800 spectrophotometer has 45°/0 optical geometry structure conforming to the standards CIE, ISO, ASTM, DIN, all of which make its accuracy incomparable. It is compatible to get a very good test result with BYK 6801 spectrophotometer.


    The 3.5" ultra-large display with touch-screen function makes the operation of NS800 quite simple, the interface quite friendly. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld spectrophotometer.


    NS800 spectrophotometer adopts a 58mm ultra-large integrating sphere which can homogenize light better, and configured with 2 types of observer angles, 2° and 10°, multiple light source types, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NS800 can excellently fulfill all kinds of requirements for color measurements in different industries.


    With a powerful PC software SQC8 which includes more extended functions, customers would do much easier measurement on software just with a mouse and a beautiful report will let it more professional.


    Technical Specification


    ParametersSpectrophotometer NS800
    Optical Geometry45°/0
    Inte-grating Sphere SizeΦ58mm
    Measuring ApertureΦ8mm
    RepeatibilityΔE*≤0.04
    Inter-instrument AgreementΔE*≤0.2
    Observer Angle2° & 10°
    Wavelength Range400-700nm
    Wavelength Pitch10nm
    Reflectance Range0-200%
    Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV
    Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v
    Displayed DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
    Other Chromaticity DataWI(ASTM E313, CIE/ISO, AATCC, Hunter),
    YI(ASTM D1925, ASTM 313),
    TI(ASTM E313, CIE/ISO),
    Metamerism Index (Mt),
    Color Strength, Color Stain, Color Fastness
    IlluminantD65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
    Illuminant DeviceCombined LED Light
    Illuminant Lifespan5 years, More than 1.6 million measurements
    SensorSilicon Photoelectric Diode Array
    Data Storage1000 Standards, 15000 Samples
    Data PortUSB
    Display SizeTFT 3.5"
    Touch-ScreenYes
    Working Temperature0~40℃(32~104℉)
    Storage Temperature-20~50℃(-4~122℉)
    PC SoftwareSQC8
    Weight600g
    Dimension90*77*230mm
    Battery3200mAh Large Capacity Li-ion Battery
    Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
    Optional AccessoryUniversal Test Components, Micro Printer, Powder Test Box

    45°/0 Paper Printing Handheld Spectrophotometer with Color Managerment Software SCQ8 NS800
