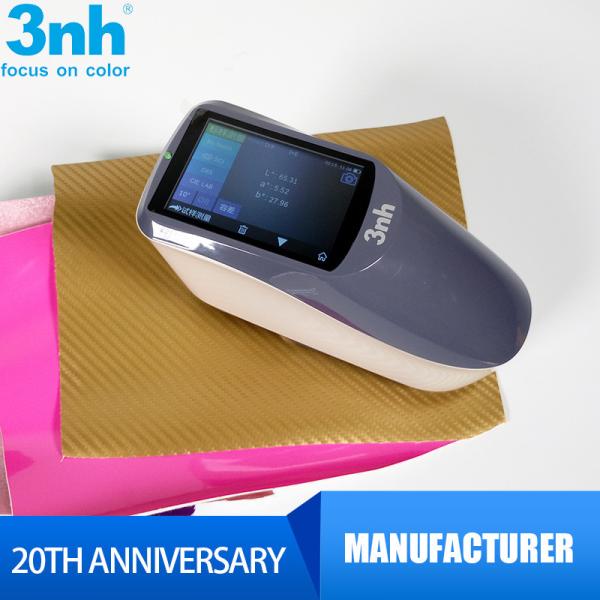

    PVC Film Color Measurement Instruments , 3NH Hunter Lab Spectrophotometer


    PVC Film Color Test Spectrophotometer with High Accuracy 0.04 YS3010 3NH


    YS3010, YS3020, YS3060 grating spectrophotometer is independently developed with independent intellectual property rights by 3nh.The machine is precise,powerful, and is in the lead of color measurement instrument .Grating spectrophtometer is usually used in plastic electronics, paint and ink, textile printing and dyeing, printing paper, automotive, medical, cosmetic and food industries, research institutions and laboratories.


    YS3010 Economical Spectrophotometer equipped with Φ8 aperture,used in plastic electronics, paint and ink, textile printing and dyeing, printing;accurate color measurement in ceramics such as industry, the quality control.


    Features:

    1. Beautiful appearance modelling and the perfect structure design in line with Ergonomics

    2. D/8 geometry,in line with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7;

    3. Equipped with long life LED light,include/excludUV

    4. Switchable 8mm and 4mm measuring apertures,can measure CIE.SCE in the same time

    5. Can measure the spectrum measuring samples, Lab data accurate and can be used for color matching and accurate color;

    6. TFT 3.5inch, Capacitive Touch Screen

    7. USB/Bluetooth 2.1double communication mode, and wider adaptability

    8. Super stain-resistant and stable calibration board

    9. Large storage,can store 20000 samples

    10. Camera locating

    11. PC Software-Realize more function expansion

    Specification:


    Illumination/ obsevation System

    Reflect: di:8-degress

    Model Name

    YS3010 Spectrophotometer (Basic Mode)

    Wavelength Range

    400-700nm

    Spectral Mode

    Concave-Grating

    Sensor

    256 image Element Double Arrays CMOS Image Sensor

    Measuring Aperture

    8mm

    Light-included Mode

    Both SCI & SCE Modes

    Color Space

    CIE LAB, XYZ,Yxy,LCh,CIE LUV,HunterLAB

    Other Colorimetric Data

    WI(ASTM E313, CIE/ISO, AATCC, Hunter),

    YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
    Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity

    Repeatability

    Spectral reflectance: MAV/SCI, Standard devition within 0.1%(400-700nm:within 0.2%)

    Chromaticity Value: Standard deviation within delta E*ab 0.05

    Observer

    2-degree / 10-degree

    Inter-instrument agreement

    Within deltaE*ab 0.2

    Measuring Mode

    Single Measurement, Average Measurements(2-99 times)

    Locate Mode

    Camera Mode

    Size

    184*77*105mm(L*W*H)

    Weight

    about 600g

    Battery Performanca

    Li-ion Battery.5000 measurements within 8 hours

    Screen

    3.5 inch TFT color LCD, Capacitive Touch Screen

    Interface

    USD/RS-232,Bluetooth 4.0 dual mode

    Storage

    Standard:1000,Sample:20000(SCI&SCE can be included in one data)

    Language

    Chinese, English

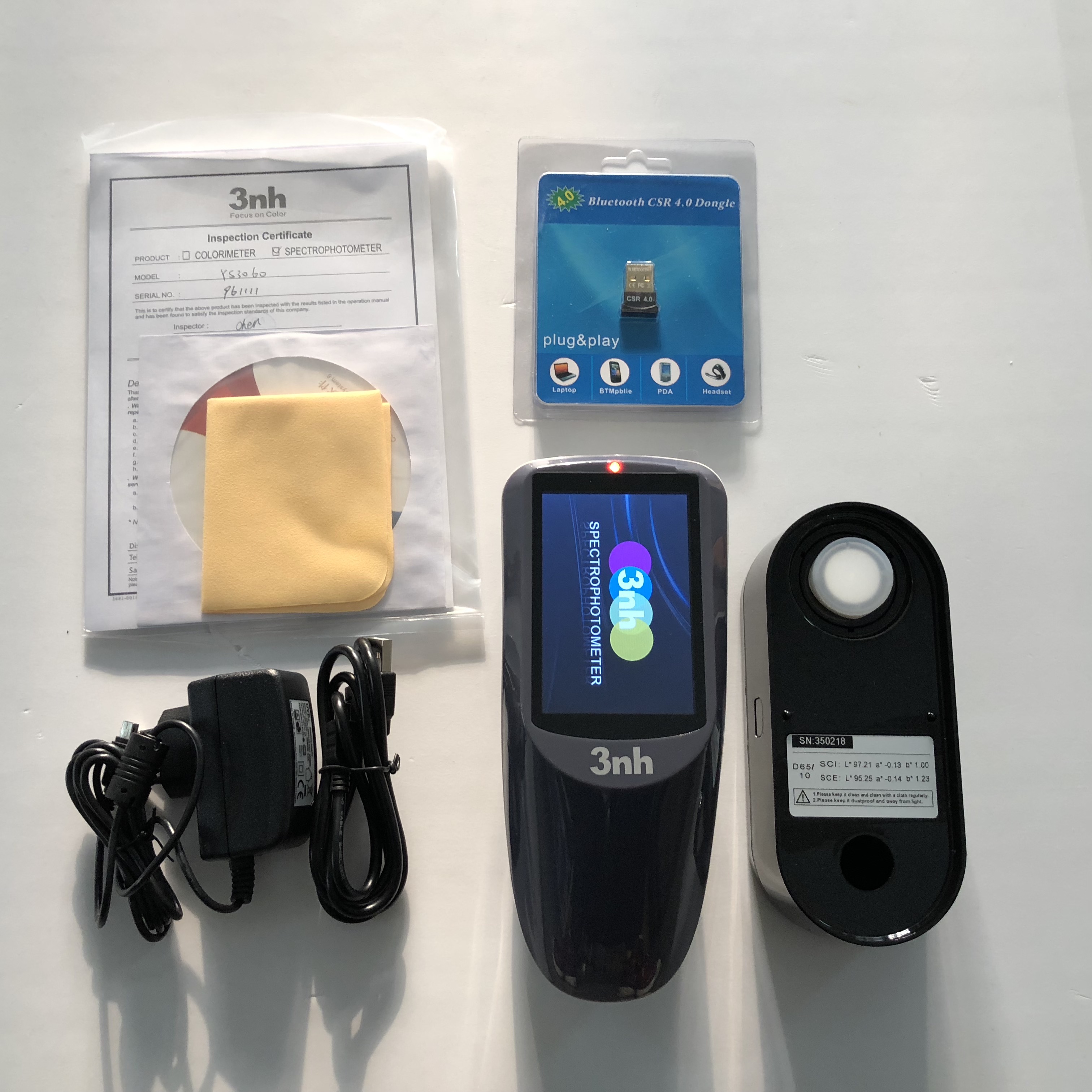

    Standard Accessories

    Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover

    Optional Accessories

    Micro Printer, Powder Test Box

    Notes

    The specifications are subject to change without notice.
