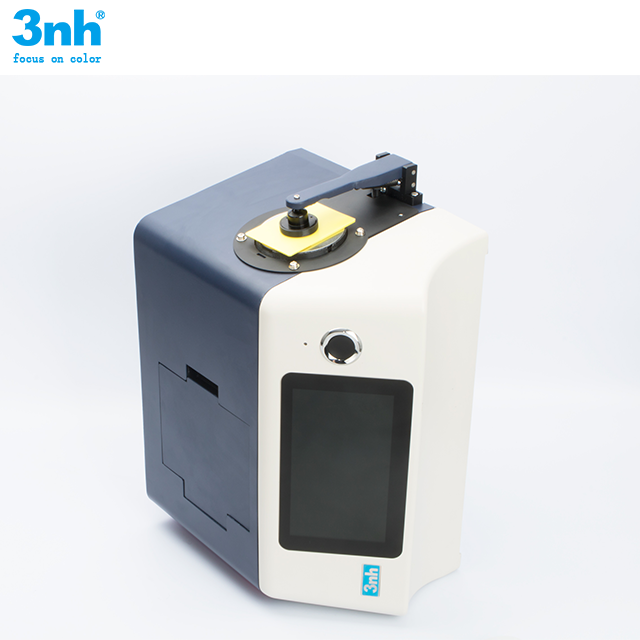

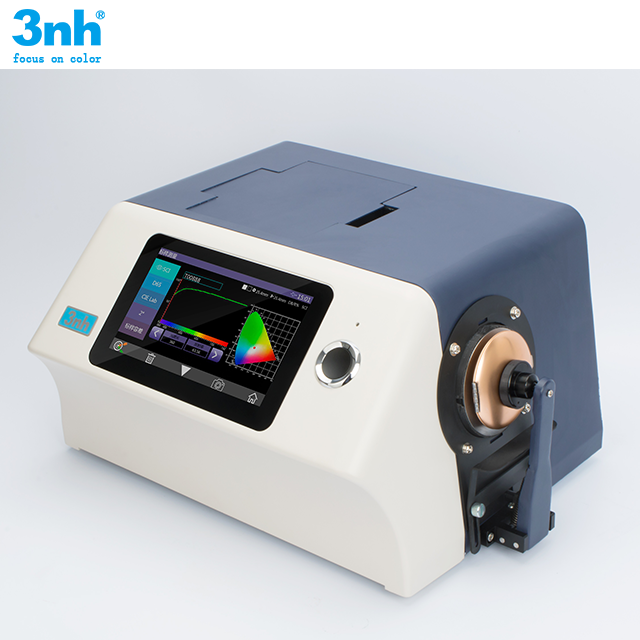

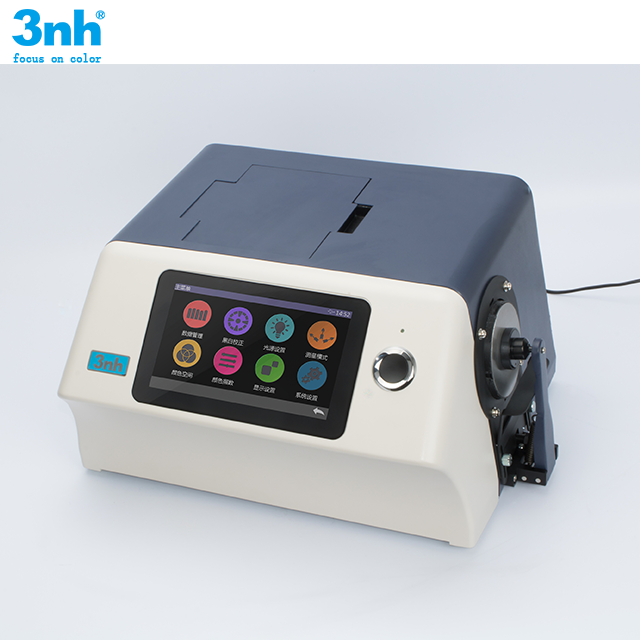

| Model | Benchtop Spectrophotometer YS6060 | Benchtop Spectrophotometer YS6010 |
| Optical Geometry | Reflective : d/8°(diffused illumination, 8-degree viewing
angle);SCI&SCE / SPIN&SPEX;Including / excluding UV
measurements Transmissive : d/0°(diffused illumination, 0-degree viewing
angle);SCI&SCE / SPIN&SPEX;Including / excluding UV
measurements Comply to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833,
ISO7724/1, ASTM E1164, DIN5033 Teil7 |
| Application | It is used for accurate analysis and transmission of laboratory
color. Apply in paints, inks, textiles, garments, printing and
dyeing, printing etc industries for color transfer and quality
control. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360~780nm Combined LED Lamp, 400nm Cut-off light
source,420nmCut-off light source | 360~780nm Combined LED Lamp, 400nm Cut-off light source |
| Wavelength Range | 360~780nm |
| Spectral Separation Device | Concave grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360~780nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
| Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
|
| Remark: 1. Automatic identification of switch caliber 2. Customized
Configuration caliber and lens position |
| Specular Component | Reflectance: SCI&SCE Transmittance: SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,8° Glossiness, Gardner Index, Pt-Co Index, 555 Index, |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference
Values/Graph, Pass/Fail Result, Color Offset |
| Measuring Time | About 3s (Measure both SCI & SCE about 6s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04%
(400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.01 ( When a white calibration plate is measured 30 times at 5
second intervals after white calibration) Spectral Transmittance:
Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm:
within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.02 ( When a white calibration plate is measured 30 times at 5
second intervals after white calibration) | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05%
(400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.02 ( When a white calibration plate is measured 30 times at 5
second intervals after white calibration) Spectral Transmittance:
Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm:
within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.03 ( When a white calibration plate is measured 30 times at 5
second intervals after white calibration) |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15(Average for 12 BCRA Series II color
tiles) |
| Size | 370×300×200mm(L*W*H) |
| Weight | 9.6kg |
| Power | AC 24V, 2A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Bluetooth, Print serial port | USB, Print serial port |
| Data Storage Capacity | Standard: 5000 Pcs; Sample: 40000 Pcs. (One PCS can include both SCI and SCE) | Standard: 2000 Pcs; Sample: 20000 Pcs. (One PCS can include both SCI and SCE) |
| Language | English & Chinese |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | White and Black Calibration Board, Checking Green Board, Sample
Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB
Cable, User Guide, PC Software, Transmissive Test Component | White and Black Calibration Board, Checking Green Board, Sample
Holder, Φ4mm, Φ8mm, Φ25.4mm Aperture, Power Adapter, USB Cable,
User Guide, PC Software |
| Optional Accessory | Micro-printer, | Micro-printer, Transmissive Test Component |
| Notes: The specifications are subject to change without notice. |
