TPR Granule material portable spectrophotometer for color
difference YS3010
Brief Introduction
Certifications: CE, ISO 9001, ROHS, FCC, TUV

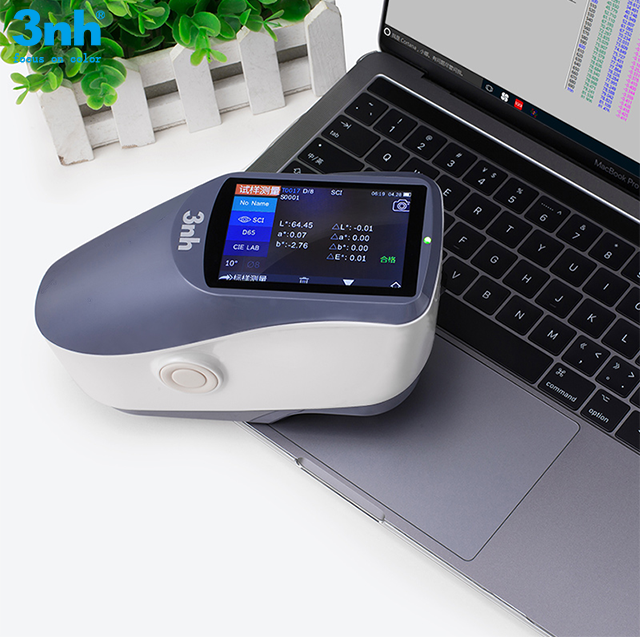

YS3010 spectrophotometer is independently developed by 3nh company,
who has complete intellectual property rights. With high-effective
cost and 8mm aperture it has good accuracy and enough storage,
suitable for most users’ requirement. PC software makes it to connect to the computer for
color control quality management and achieve more functions.
Spectrophotometer YS3010 with SCE & SCI is widely used in plastic,
electronic, paint, ink, textile, garment, printing and dyeing,
food, medical, cosmetic, industries, scientific research
institutes, schools and laboratories. It can measure reflectance
spectrum and other color index precisely. Colour Measuring
Spectrophotometer YS3010 with SCE & SCInot only can help to perform
color matching and color management studies, but also can control
product quality management accurately. The instrument is equipped
with high-end color management software which can connect PC to
achieve more extension functions.
Measured data is very close to those popular models of the world
famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA
and Ci60, Ci62, Ci64, Ci64UV of X-rite.
Technical Specification
SPECIFICATIONS FOR YS3060 & YS3020 & YS3010 Spectrophotometer |
Model Items | YS3060 | YS3020 | YS3010 |
Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
Integrating Sphere Size | 48mm |
Light Source | Combined LED Light, UV Light | Combined LED Light |
Spectrophotometric Mode | Concave Grating |
Sensor | 256 Image Element Double Array CMOS Image Sensor |
Wavelength Range | 400-700nm |
Wavelength Interval | 10nm |
Semiband Width | 10nm |
Measured Reflectance Range | 10nm |
Measured Reflectance Range | 0-200% |
Measuring Aperture | MAV : Φ8mm/Φ10mm
SAV : Φ4mm/Φ5mm | Customized Aperture: 8mm/4mm/1×3mm | Single Aperture: MAV : Φ8mm/Φ10mm |
Specular Component | SCI&SCE |
Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color
Strength, Opacity, 8° Glossiness |
Observer Angle | 2°/10° |
Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,
F11, F12 | D65, A, C, D50, D55, D75, F2, F7, F11 | D65, A, C, D50 |
Display Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
Measuring Time | 2.6s |
Repeatability | MAV/SCI: ΔE*≤0.03 | MAV/SCI: ΔE*≤0.05 | MAV/SCI: ΔE*≤0.06 |
Inter-instrument Error | MAV/SCI: ΔE*≤0.15 | MAV/SCI: ΔE*≤0.2 | MAV/SCI: ΔE*≤0.4 |
Measurement Mode | Single Measurement, Average Measurement |
Locating Method | Camera View Finder Locating |
Battery | Li-ion battery. 5000 measurements within 8 hours |
Dimension | L*W*H=184*77*105mm |
Weight | 600g |
Illuminant Life Span | 5 years, more than 3 million times measurements |
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
Data Port | USB, Bluetooth 4.0 | USB |
Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
Language | English, Chinese |
Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
Storage Environment | -20~50℃, 0~85%RH (no condensing) |
Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover |
Optional Accessory | Micro Printer, Powder Test Box |
Notes: The specifications are subject to change without notice. |
Application Introduction
YS3010 spectrophotometer is a model of color measuring instrument
with powerful functions, which makes it can be applied to all sorts
of products in all kinds of industries. YS3060 is perfectly
suitable to measure the colors of plastics, rubber, metals, wood,
cloth and textiles, leather, porcelain and ceramics, stones, tiles,
fruit, package material, etc. With the configuration of the
universal test component, YS3060 can also be used to measure the
color of liquids like vinegar or wine, powders like flour and paste
like ketchup.
Frequently Asked Questions
1. Which models are the equivalent models to YS3010?
Answer: KONICA MINOLTA CM-2300d and X-rite Ci64 are the equivalent
models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design
and produce, market and sell color measuring instruments and gloss
meters. Our company and factory are located in Shenzhen which is
famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment
confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can
provide discount.
Color Space
CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green
and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are
blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates
from an accepted standards.The higher the dE, the more inaccurate
the color.
