Features
1, High configuration of hardware: 7 inches TFT Color Capacitive
Touch-screen Display; Concave Grating.
2, Double Array 256 Image Element CMOS Sensor; Long life-span
stable LED, UV LED.
3, With reflective and transmissive spectrum, accurate Lab value,
good to calculate color formula and do precise color transmission.
4, Auto identify measuring aperture. Freely switchable between 4
measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize
apertures.
5, Built-in temperature sensor to monitor and compensate the
measuring temperature to ensure the measurement more precision.
6, Wavelength range 360nm – 780nm. Built-in 400nm cut off/460nm cut
off (only xenon lamp edition), more professional in UV measurement.
7, Independent light source detector, continuously monitor the
condition of light sources to ensure the light source reliable.
8, Multiple measurement modes: Quality Management Mode, Sample
Mode; Meet more users’ requirement.

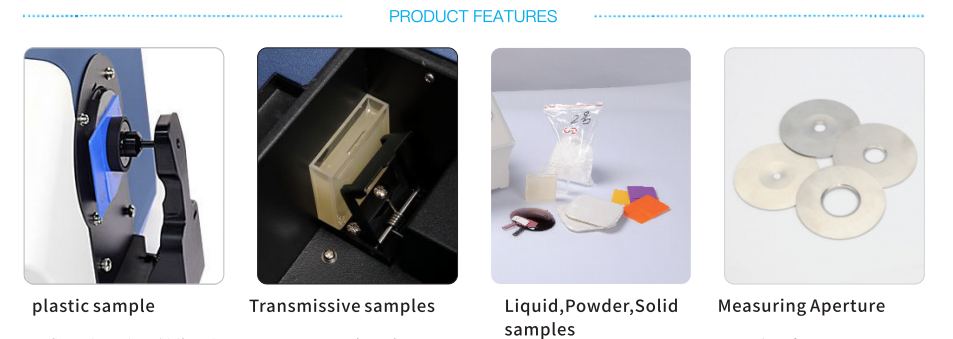

9. A variety of optional accessories: Reflection sample holding
tool, transmission fixture, micro 4mm aperture transmission test
components, instrument inversion test components, applicable to
more working conditions;
10, Big capacity data storage, for 20000 pieces test result.
11, Built-in camera locating.
12, More powerful extended functions at the PC software.
Application Industry
YS6010 benchtop spectrophotometer is used to do precise color
analysis and transmission in laboratories. It can be widely applied
in different industries, such as plastics, electronics, paint and
ink, printing, garments, leather, paper, auto, medical, cosmetics,
food, science institutes, laboratories.
Specification
| Model | YS6010 Benchtop Spectrophotometer |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) ;
SCI (specular component included)/SCE (specular component excluded)
; Include UV / excluded UV light source
Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ;
SCI (specular component included)/SCE (specular component excluded)
; Include UV / excluded UV light source;
Haze(ASTM D1003),
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM
E1164, DIN5033 Teil7 |
| Application | It is used for accurate analysis and transmission of laboratory
color. Apply in paints, inks, textiles, garments, printing and
dyeing, printing etc industries for color transfer and quality
control. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ25.4mm;
Remark: 1. Automatic identification of switch caliber 2. Customized
Configuration caliber and lens position |
| Specular Component | Reflectance: SCI&SCE / Transmittance: SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 ,
DINΔE 99 ,ΔE (Hunter), |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,Gardner Index, APHA/Pt-Co Index, 555 Index, Haze(ASTM
D1003) |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05%
(400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.02 ( When a white calibration plate is measured 30 times at 5
second intervals after white calibration) Spectral Transmittance:
Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm:
within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.03 ( When a white calibration plate is measured 30 times at 5
second intervals after white calibration) |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=370x300x200mm |
| Weight | Approx. 9.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable,
Standard Calibration Board, Black Calibration Cavity, Transmission
black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber |
| Optional Accessory | Micro-printer, Transmissive Test Component, Instrument inversion
components,culture dish |
| Notes | The specifications are subject to change without notice. |
