    3nh Grating Colour Measurement Spectrophotometer Colorimeter Test Machine

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : YS3060
    Certification : CE, ISO 9001, ROHS, FCC, SCM
    Price : DISCUSS
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000 pcs per week
    Delivery Time : 1-2 working days
    • Product Details
    • Company Profile

    3nh Grating Colour Measurement Spectrophotometer Colorimeter Test Machine


    YS3060 Color Measurement Spectrophotometer 3nh SCE SCI D/8 Colorimeter Test Machine

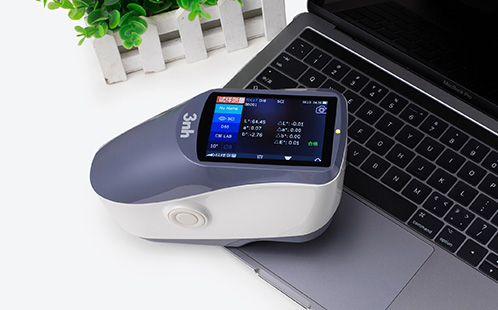

    3nh Spectrophotometer YS3060 is our most advanced handheld spectrophotometer with high performance and sophisticated functions.


    YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.


    YS3060 UV Grating Spectrophotometer
    Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.

    YS3020 Grating Spectrophotometer
    Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.

    YS3010 Grating Spectrophotometer
    4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.


    With its broad capabilities, 3nh Spectrophotometer YS3060 SCE SCI D/8 Hunter lab Color Test Reader Meter with 8mm and 4mm apertures is used in plastics, coatings, textiles and many other industries.


    YS3060 spectrophotometer specification


    ModelYS3060 spectrophotometer
    Illumination/observation systemReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
    Integrating sphere SizeΦ48mm
    Light SourceCombined LED Light, UV Light
    Sensor256 Image Element Double Array CMOS Image Sensor
    Wavelength range400~700nm
    Wavelength pitch10nm
    Reflectance range0~200%
    Measuring ApertureDual Aperture: 10mm/8mm & 5mm/4mm
    Color SpaceCIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
    Color difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
    Other Chromaticity Data

    WI(ASTM E313, CIE/ISO, AATCC, Hunter),

    YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),

    Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness

    Observer2°/10°
    IlluminantD65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
    Display DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
    Measurement Time1.5s
    RepeatabilitySpectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
    Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
    Inter Instrument AgreementWithin DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
    DimensionL*W*H=184*77*105mm
    Weight600g
    BatteryLi-ion battery. 5000 times within 8 hours.
    Lamp Life5 years, more than 1.6 million measurements
    Display ScreenTFT 3.5inch, Capacitive Touch Screen
    InterfaceUSB/RS-232
    Data MemoryStandard 2000 Pcs, Sample 20000 Pcs
    Operating Temperature0~40℃(32~104°F)
    Storage temperature-20~50℃(-4~122°F)
    Standard AccessoryPower Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
    Optional AccessoryMicro Printer, Powder Test Box
