    Delta E Lab Colour Measurement Spectrophotometer For Print / Packaging

    Ask Lasest Price
    Brand Name : X-rite
    Model Number : eXact
    Certification : CE
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 500 Units per Month
    Delivery Time : 2-5 Days
    • Product Details
    • Company Profile

    Delta E Lab Colour Measurement Spectrophotometer For Print / Packaging

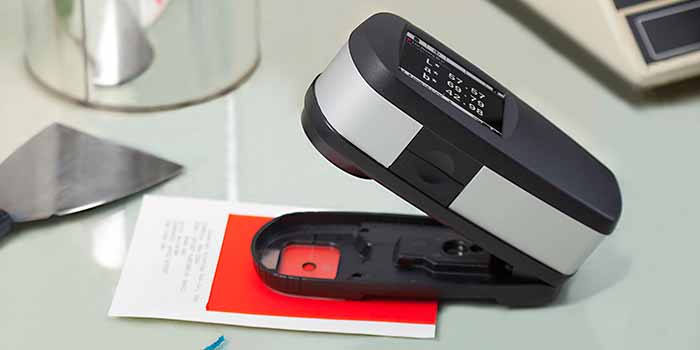

    X-Rite eXact handheld spectrophotometer CMYK delta E lab For Print & Packaging


    The X-Rite eXact handheld spectrophotometer takes color measurement and management to the next level. It is a scalable platform that can be field upgraded as needs change, from a simple densitometer to a highly advanced spectral measurement instrument. eXact enables printers and packaging converters to truly understand, control, manage, and communicate color through all facets of production , avoiding unwanted reprint and rework.

    Benefits:

    • Best in Spot Color Support
      Fully integrated Pantone spectral data, support of the PantoneLIVE color digital workflow, and ink key adjustment recommendations for spot colors and CMYK make eXact best-in-class for handling spot colors.
    • Accurate and Consistent
      The combination of the advanced spectral engine and integrated white calibration ensures the highest accuracy and consistency with other instruments – all the time. When used with NetProfiler, customers can ensure accuracy and consistency across multiple measurement devices within a single facility or across geographies.
    • Configurable
      eXact allows the user to easily configure and control the instrument to the specific standards of a selected job.
    • Efficient
      eXact is built to bring efficiency to your operation with its ability to do simultaneous polarized and unpolarized measurements (M0, M2 and M3).
    • Expandable
      With a comprehensive portfolio of products, the eXact family integrates with many of X-Rite solutions to ensure color consistency.
    By deploying X-Rite eXact spectrophotometers, print and packaging operations can significantly reduce makeready times, improve quality, reduce substrate and ink waste and enjoy a more efficient workforce. It is the first instrument in the marketplace to combine unique hardware and software into a single integrated, scalable solution that helps operations get color right the first time - every time.

    Specifications

    Short Term Repeatability - White0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds)
    Short Term Repeatability - Density'+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)
    Measurement Geometry45°/0° ring illumination optics, ISO 5-4:2009(E)
    Inter-Instrument AgreementAverage: 0.25 ΔEab,
    Max: 0.45 ΔEab (for M3: 0.55 ΔEab)
    (Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))
    Light SourceGas filled tungsten (illuminant type A) and UV LED
    Measurement ConditionsM0, M1 (part 1) , M2, M3
    Measurement Time< 1 sec
    Spectral AnalyzerDRS spectral engine
    Spectral Interval10 nm
    Spectral Range400 nm to 700 nm
    Spectral Reporting400 nm to 700 nm with 10mm interval
    Color DifferencesCIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)
    Color SpacesCIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy
    IlluminantsA, C, D50, D55, D65, D75, F2, F7, F11, D12
    Observers2° and 10°
    Humidity30 to 85% RH (non-condensing)
    Operating Temperature Range10°C to 35°C
    50°F to 95°F
    Storage Temperature Range-20° to 50°C
    -4° to 122°F
    Dimensions (length, width, height)18 cm x 7.8 cm x 7.6 cm
    7.1" x 3.1" x 3.0"
    Weight700 g
    1.6 lbs.
    3rd Party Software SupportedX-Rite ColorCert, X-Rite Color iQC, X-Rite InkFormulation, X-Rite NetProfiler and many others
    Communication InterfaceUSB 2.0
    Bluetooth (optional) - Class II
    Configuration OptionsBluetooth, NetProfiler
    Instrument DisplayColor touch-screen, 320 x 240 pixels
    Languages SupportedChinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish
    Software Development KitYes
    Software ModesDensitometer, Standard, Advanced
    User ExperienceStart-up wizard, configurable
    BatteryLithium Ion, 7.4VDC, 2200mAh
    Voltage12 VDC @ 2.5 A
    Sample/MeasurementMax. 5000 samples
    StandardsMore than 20'000 standards (incl. data for all M modes)
    Density Range0.0 D – 3.0 D
    Density StandardsStatus A, E, I, T and G
    Industry StandardsISO 5-4:2009(E), ISO 13655:2009
    BestMatch FeatureYes
    CalibrationAutomatic on integrated white reference
    Embedded NetProfiler SupportYes
    G7 CertificationYes
    NetProfiler SupportYes
    PantoneLIVE SupportYes
    Pass / FailYes
    Warranty1 year
    What's Included?USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
    MacintoshMacOS X 10.8, 10.9, 10.10, 10.11
    WindowsWindows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
    X-Rite eXact handheld spectrophotometer CMYK delta E lab For Print & Packaging
