| Illumination system | 45/0 method(45 ring-shaped illumination, vertical viewing); Comply with the standards of CIE No.15,GB/T 3978,GB 2893,GB/T
18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833. |

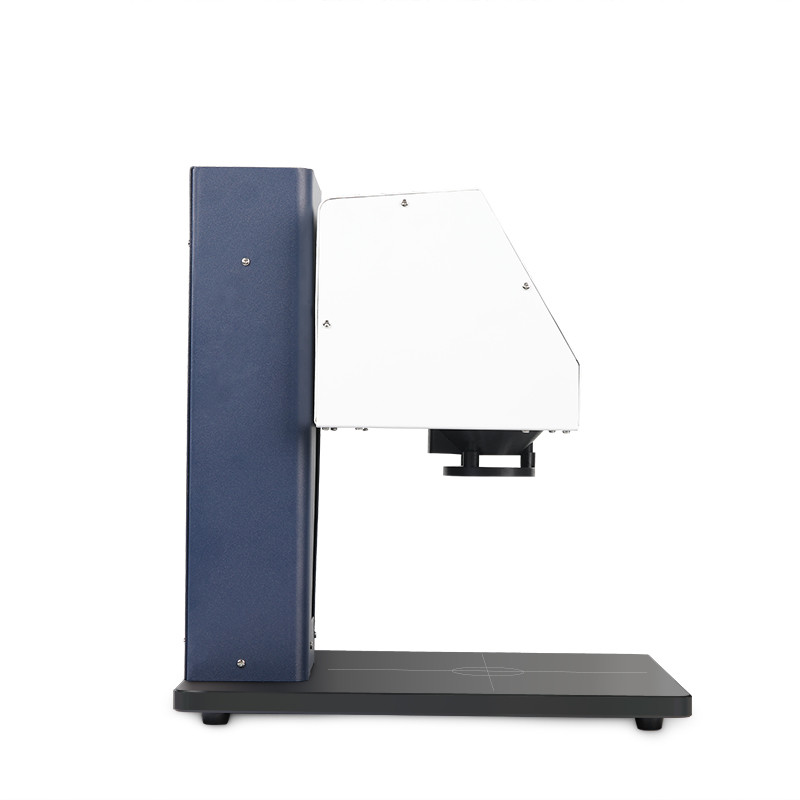

| Features | 45/0 non-contact benchtop spectrophotometer, which can achieve
precise non-contact measurement between the measuring probe and the
sample like liquids, sauces, powders, etc. It can be applied for accurate
color analysis and transmission in laboratories and R & D
industries; it can also be used for accurate color measurement and quality control of automated
production lines; it is widely used in cosmetics, fruits and
vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries . And it can
be used for fluorescent sample measurement. |
| Light Source | Full spectrum LED light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm/10nm output |
| Measured Reflectance Range | 0~200% |
| Measured Reflectance Range | Φ20mm |
| Non-contact distance | 7.5mm |
| Sample height | 0~150mm |
| Distance adjustment method | Manual adjustment (test height can be stored) |
| Measuring mode | Sample mode/QC Mode/Continuous statistics mode |
| Locating Method | Camera View Finder Locating |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM
E313,CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color
Strength, Opacity |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL
Result, Color Offset |
| Measuring Time | About1.5s |
| Data Storage Capacity | Sample mode + QC mode: 30,000,Continuous statistics mode: 10,000 |
| Repeatability | Chromaticity value: Within ΔE*ab 0.05 (When a white calibration
plate is measured 30 times at 5 second intervals after white
calibration) |
| Inter-instrument Error | Within ΔE*ab 0.25(Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2 ~ 99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10 kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display Screen | 7" TFT Capacitive Screen-touch Display |
| Data Port | USB/RS-232 |
| Language | Simplified Chinese,Tranditional Chinese,English |
| Working Environment | Temperature0~40℃; Humidity: 0~85% (No Condensation); Altitude <
2000m |
| Storage Environment | Temperature-20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, User Manual, USB cable, Standard Calibration Board,
Black calibration Board |
| Notes | The specifications are subject to change without notice. |
