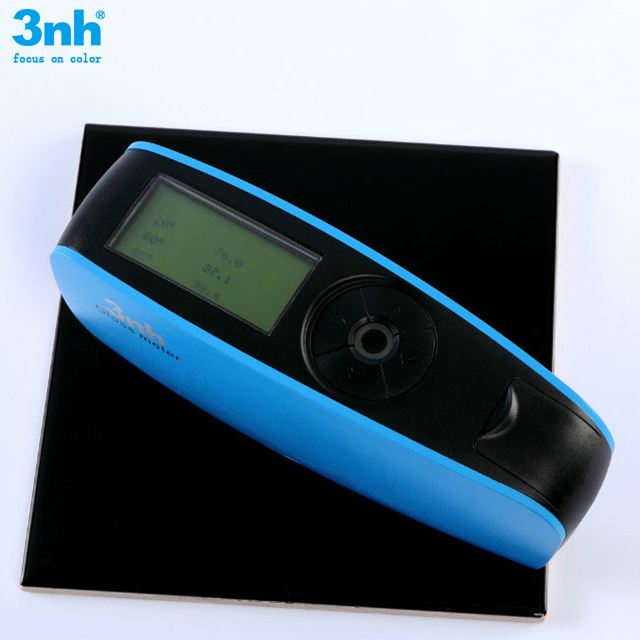

3nh 60 Gloss Meter 9x15mm Measuring Area Gloss Testing Equipment
YG60
Brief Introduction
YG series gloss meter is independently developed by Shenzhen 3nh
Technology Co., Ltd with independent intellectual property,
manufactured according to international standard ISO2813 and China
standard GB/T 9754. With auto-calibration and high-end QC software,
it can meet the first grade requirements of JJG696.
YG60S 60° Economic Gloss Meter can test material with gloss
(0-200Gu), and universally apply to paint, ink, stoving varnish,
coating, wood products; marble, granite, vitrified polished tile,
pottery brick and porcelain; plastic, paper; hardware industries,
etc. for gloss measurement and gloss data transmission.
Now YG60 has been widely used by our customers all over the world
in many industries, like painting, lacquer, ink, coating, leather,
paper, printing, plastics, electronics, furnitures, wood,
decorating, ceramics, tiles, metals, hardware, marble,
electroplating, package, food, cosmetics, pharmacy, cloth, garment,
textiles, traffic signage, etc.
Technical Specification
| Parameters | Single-angle Gloss Meter YG60 |
| Measuring Angle | 60° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 60°: 9x15mm |
| Measuring Range | 60°:0~1000GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability | 0-100GU 100-1000GU
± 0.2GU ± 0.2%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class
Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±0.2, ±0.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 2.3" |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 1pcs of No.5 dry cell battery more than 10000 times (within 8
hours) |
| Dimension | 160*52*84mm |
| Weight | 350g |
| Measuring Mode&Storage | Basic Mode and Continuous Mode: 15000 Statistical Mode: 10000 QA Mode: 10000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and
More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software),
Calibration Plate |
| Optional Accessories | Mini Printer |
Frequently Asked Questions
1. Which models are the equivalent models to YG60 Gloss Meter?
Answer: Our YG60 gloss meter is equivalent to BYK4561 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design
and produce, market and sell color measuring instruments and gloss
meters. Our company and factory are located in Shenzhen which is
famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment
confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can
provide discount.
