Large Screen 3.5 inch 60 degree glossmeter to analyze natural stone HG60 300gu 3nh

Incomparable Accuracy	HG60 Gloss Meter
Company info. :
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. Our Certificates: ISO9001:2008; CE; FCC; ROHS; TUV. The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Brief Introduction:
HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
Application :
HG60 gloss meter can test material with gloss (0-300Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Specification :
HG60 60° Precise Gloss Meter Model HG60 Measure Angle 60° Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457 Measuring Area (mm) 9X15 Measurement Range 0~300GU Division Value 0.1GU Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-300GU ± 0.1GU ± 0.1GU ± 1GU ± 0.1GU ± 0.1GU ± 0.1GU Measurement Standard Conform with JJG696 first class gloss meter working requirement Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source Errors ±1.2 , ± 1.2% Measuring Time 1s Dimension L*W*H : 160mm*75mm*90mm Weight 350g Language Chinese/English Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours) Viewing Screen TFT 3.5 inch Interface USB/RS-232 Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000 Software GQC6 Quality Control Software with QC report printing functions and more extended functions. Operation Temperature 0~40℃(32~104°F) Storage Temperature -20~50℃(-4~122°F) Humidity <85% relative humidity, no condensation Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate Optional Accessories Miniature Printer Note The specifications are subject to change without notice.

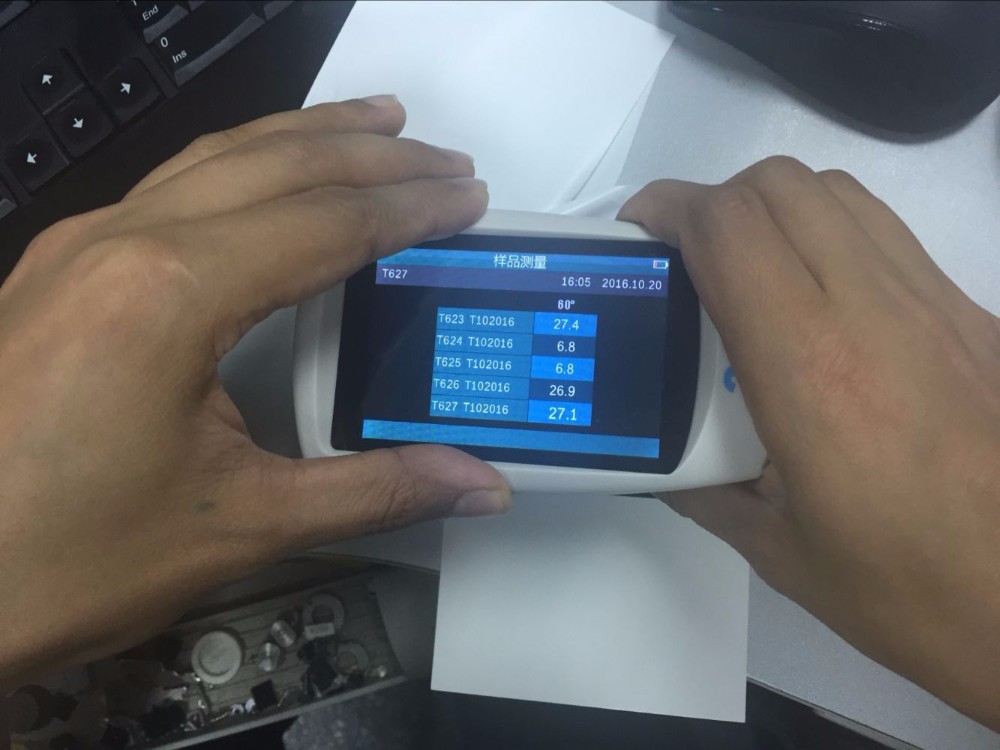

Product Image :

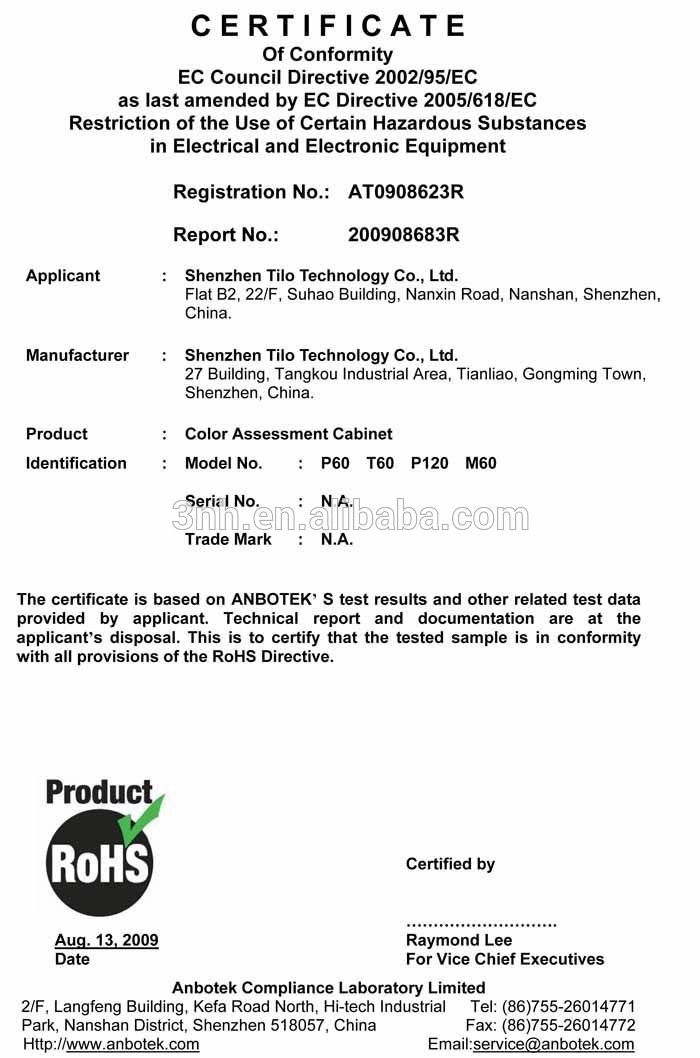

Certifications
Gloss Meter Angles Low Gloss - 85° For improved resolution of low gloss, a grazing angle of 85° is used to measure the surface. This angle is recommended for surfaces which measure less than 10 GU when measured at 60°.This angle also has a larger measurement spot which will average out differences in the gloss of textured or slightly uneven surfaces. Medium or Semi Gloss - 60° - The Universal Measurement Angle One must remember that all gloss levels can be measured using the standard measurement angle of 60°. This 60 degree angle is used as the reference angle for all products. So why choose some other another angle? Because for extreme gloss, one obtains better measurements with the complimentary angles of 85° or 20° often used for low and high gloss levels respectively. High Gloss - 20° The acute measurement angle of 20° gives improved resolution for high gloss surfaces. Surfaces that measure 70 GU and above at the standard angle of 60° are often measured with this geometry. The 20° angle is more sensitive to haze effects that affect the appearance of a surface. The different gloss of these two samples is more clearly shown in the 20° readings. 45° Glossmeter The 45 degree glossmeter is used primarily for the ceramics and film producing industries. 75° Glossmeter The 75 degree glossmeter is used primarily for the paper and vinyl producing industries.
