1. Product Profile
TS7600 handheld spectrophotometer is a high-end precise color
measurement instrument for surface color measurement and
management, which can be widely applied in all kinds of industries,
such as plastics and metals, paint and coating, furniture and wood,
ink, printing and packaging, pharmaceuticals, cosmetics, fabrics,
textiles and garments, electronics, tiles and decoration industry.
Built for performance and reliability, the Spectrophotometer TS7600
is a top-of-the-line measurement instrument designed to precisely
evaluate the color and appearance of opaque and fluorescent
samples. This high precision, versatile spectrophotometer is used
to evaluate, reproduce, and help control the color and appearance
of samples in a more effective, streamlined process. Its advanced
capabilities and unwavering performance enable users to formulate
and match color quality standards more efficiently, maintain
consistency in each batch of material, and help communicate color
seamlessly internally and throughout the supply chain. This makes
the TS7600 ideal for color analysis, formulation, and quality
control inspections within laboratory and manufacturing
environments.
In one word, TS7600 color measurement spectrophotometer can be
perfectly applied in any place that requires color control or color
management.
2. Detailed Technical Parameter / Specification Form
| Technical Parameter Items | TS7600 Handheld Color Measuring Spectrophotometer |
| Product Category | Optical Electronic Digital Color Testing Equipment |
| Product Name | Handheld Color Measurement Spectrophotometer |
| Optical Geometry | d/8° |
| Measuring Apertures | Choose One Apertrue from: ∅10mm/∅8mm or ∅5mm/∅4mm |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Muncell(C/2) |
| Color Difference Formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Repeatability Error | ΔE*ab≤0.04 |
| Inter-instrument Error | ΔE*ab≤0.2 |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Staining Fastness, Color Fastness, Color Strength, Opacity, 8-degree Glossiness |
| Information Displayed | Spectrogram/Data, Chromaticity Diagram/Values, Color Difference
Values/Graph, Pass/Fail Result, Color Simulation, Color
Offset/Deviation Direction |
| SCI/SCE | SCI+SCE (SPIN+SPEX) |
| Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined Full Spectrum LED Lamps |
| Lamps Life-span | 5 Years, more than 3 Million times of measurements. |
| Integrating Sphere Size | ∅40mm |
| Wavelength Range | 400nm - 700nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0∼200% |
| Illuminants | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8,
F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Sensor | Silicon Photodiode Array (Dual Row 40 Groups ) |
| Spectroscope | Flat Grating |
| Measurement Time | 1.5s (About 5s for both SCI and SCE) |
| Data Storage Capacity | 1000 pcs of Standards, 20000 pcs of Samples. (Once piece of data
includes both SCI and SCE) |
| Data Transmission Port | USB |
| PC Terminal Software | SQCX (for free) |
| Display Screen | 3.5-inch TFT Capacitance Screen-touch Display |
| Language Built-in | English, Chinese. (If need German, French, Spanish, Italian or
Russia, please specify) |
| Built-in Battery | 6000 times measurements in 8 hours. |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |

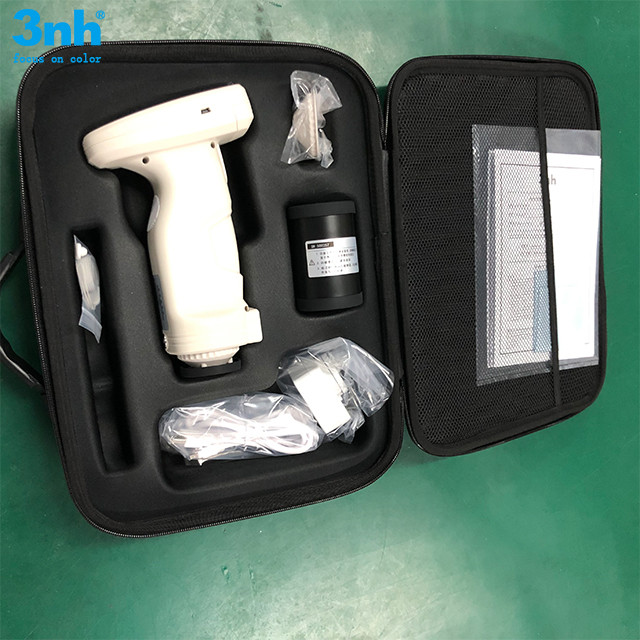

| Standard Accessories | White and Black Calibration Cavity, Φ4mm or Φ8mm Aperture, Power
Adapter, USB Cable, PC Software SQCX, User Guide, Protective Cover,
Wrist Strap. |
| Optional Accessories | Mini Thermal Printer, Powder Test Box |
| Weight | 600g |
| Dimension | 129*76*217mm |
FAQ:
1. Which models are the equivalent models to TS7600?
Answer: MINOLTA CM-700d, CM-600d are the equivalent models to 3nh
TS7600.
2. Is 3nh a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer, we research and
develop, design and produce, market and sell color measuring
instruments and gloss meters.
3. Where is your main market.
Answer: We sell to the global market.
4. Is the package strong enough to make the instrument shipped
safely to customers?
Answer: Yes, of course. The instrument is packed in a firm
alluminum box filled with foam.
5. Can you support OEM service?
Answer: Yes, we support OEM and ODM service.
6. How long is the warranty?
Answer: We support 1 year warranty and life-span maintenance.
7. When can you ship the goods after payment?
Answer: We have all goods in stock, and general we ship the goods
within 2 working days after payment.
8. What are your main products?
Answer: We mainly produce colorimeter, spectrophotometer, gloss
meter, and color light box, and iso test chart.
