3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux

    Buy cheap 3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux from wholesalers

    Buy cheap 3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux from wholesalers
    • Buy cheap 3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux from wholesalers
    • Buy cheap 3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux from wholesalers

    3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : HC5100
    Certification : CE,ISO,RoHs,etc
    Payment Terms : T/T,Paypal,etc.
    Supply Ability : 1000pcs/month
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

    3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux

    3nh Color Viewer Transmission Light Box with illuminance 10000 lux


    Brief Introduction:


    3nh standard camera color viewer transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions. They are suitable for 4:3 transmission test chart.


    HC5100/HC3100 adopts 3nh independent research and development LED light, and it has higher illumination uniformity and better CRI (color rendering index), while CC5100/CC3100 adopts DNP original light and it can get the same color temperature and illumination uniformity with DNP SDCV 3500 transmission light box, but we have 250 ~ 10000 Lux adjustable illuminance while SDCV 3500 only has 6000 ~ 10000 Lux. It can’t meet the requirement who needs to test image quality under 6000 lux.


    Transmission light box offers a special light source to check the quality of camera. With two adjusting knobs, we can adjust the illuminance from 0 lux to 11000 lux. It



    fits for many kinds of transmission test charts 4:3 use, such as transmission greyscale charts, transmissive high resolution test chart, transparency grid test chart, etc. Through image test software, the analysis result is more professional and easier.

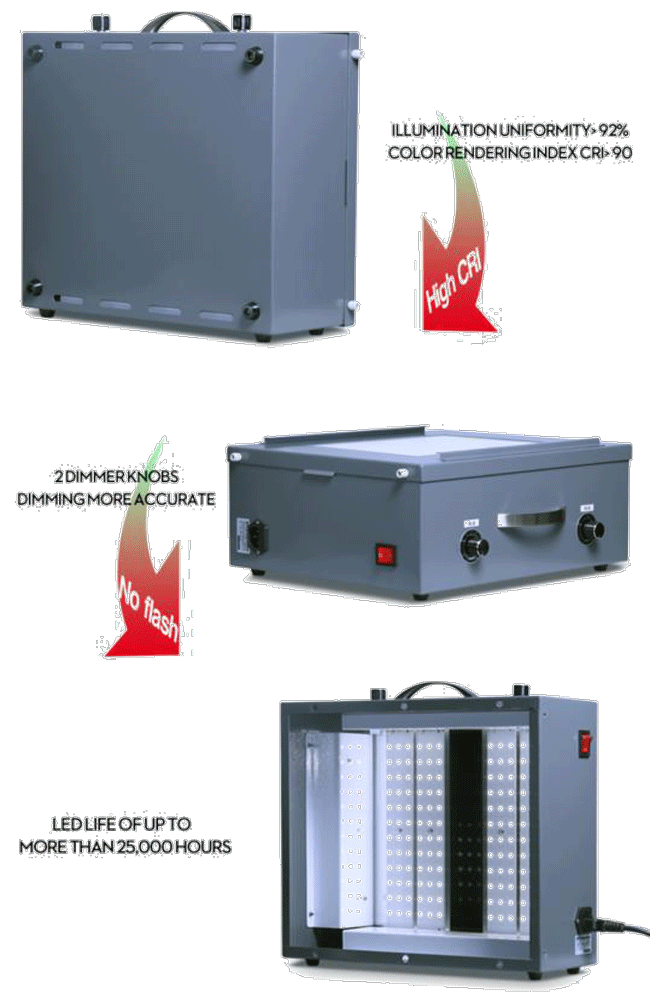

    Features:


    • Unique LED light or DNP original light, life up to more than 25000 hours

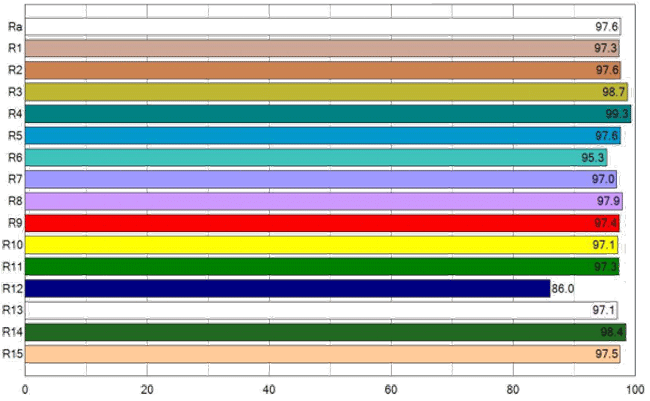

    • Uniformity Illumination over 92%, CRI (Color Rendering Index) > 90
    • Adjustable illuminance range from 0-11000lx, with 2 dimmer knobs
    • Fits for many kinds of 4:3 transmission test charts use, like 3nh, DNP, etc
    • Through Image test software, camera analysis result more professional and much easier.

    Application


    Transmission light box is widely used for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.


    Specification


    ModelCC5100/CC3100 with DNPHC5100/HC3100 with LED light
    original light
    Light source:5100K(5100K±200k)HC3100 ± 100k / HC5100 ± 100k
    *4,3100K(3100K±200k) *4Duv ± 0.002
    Uniformity:>90%>92%, CRI >90
    Luminous Source:100 ~ 4400cd/m2 adjustable100 ~ 4400cd/m2 adjustable
    Illuminance:250 ~ 10000Lux adjustable0 ~ 27000Lux adjustable
    Power supply:AC230V 50/60HZAC100-240V 50/60HZ
    Lighting method:High Frequency lighting methodHigh Frequency lighting method
    20KHz20KHz
    Operating10~40℃10~40℃
    temperature:
    OperatingBelow 80%(avoid dew)Below 80%(avoid dew)
    humidity:
    Major diameter38.5W*34H*15Dcm37W*32.5H*16.5Dcm
    dimension:
    Luminance plane25W*19Hcm25W*19Hcm
    dimension:
