    YG268-3NH Multi Angle Glossmeter High Accuracy Stone Marble Gloss Measurement

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : YG268
    Certification : CE,RoHs,ISO,ASTM etc.
    Payment Terms : T/T,Paypal
    Supply Ability : 1000pcs/month
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

    YG268-3NH Multi Angle Glossmeter High Accuracy Stone Marble Gloss Measurement

    YG268-3NH Auto-calibration Stone Marble Gloss Measurement Multi Angle Glossmeter

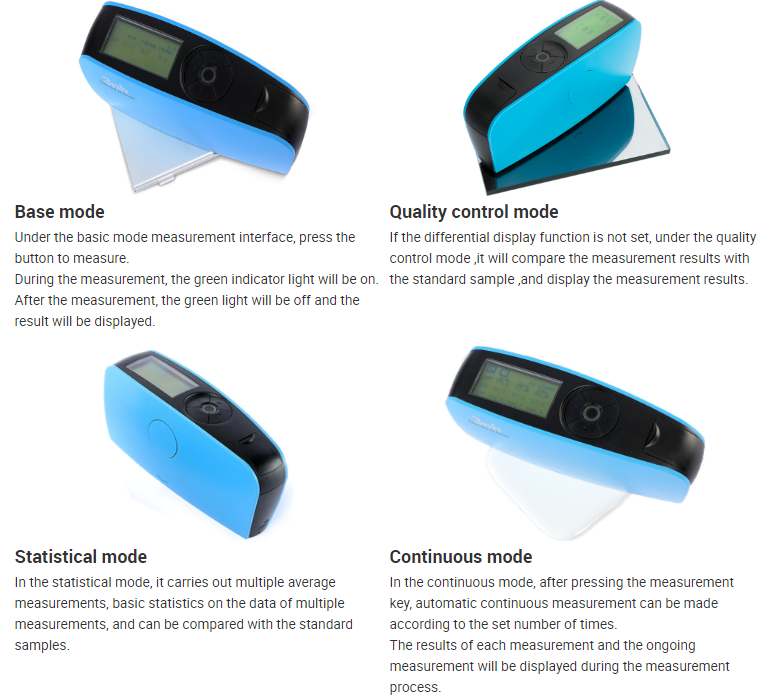

    The YG268 Tri-angle Gloss Meter is manufactured according to international standard ISO2813 and China standard GB/T 9754. It's applicable to 98% of the industry in the market.It has four measurement modes: basic mode, quality control mode, statistical mode and continuous mode.
    It's also a variety of measurement angles, freely switch and with auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
    ModelYG268Brand3nh
    Measurement Angle20°/60°/85°
    Measurement StandardISO2813,ASTM 523,GB/T9754,JJG696 first class
    Measuring Area (mm)20°: 9x10 60°: 9x15 85°: 5x38
    Battery1pc dry-cell battery(can measure 10000 times) or
    use USB Charge
    Measuring Time0.5 s
    Dimension160*52*84mmWeight300(g)
    StorageBasic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000
    Standard AccessoriesUSB cable, user manual, calibration plate, QC softwareOptional AccessoriesMiniature Printer

    Product Features:

    Meet a number of industry standards

    ●Meet the first grade requirements of JJG696
    ●Comply to ISO2813,ASTM523, GB/T9754

    Multi-angle, to meet a variety of material measurement

    20°: High gloss paint (cars), plastics, varnish, sheet, paper and metal

    60°: Universal for paints, printing ink, varnish, metal, anodized aluminum, plastics and ceramics
    85°: Matt paint and surfaceMatt paint and surfaces in aviation, military, furniture and automobile interiors Technical Parameters.

    Powerful hardware and software support

    Elegant Design combined with aesthetics and ergonomics
    With auto-calibration function
    Large storage to save over 35000 data
    With PC software for quality report, more extend functions

    Application:
    The gloss meter is useful for printing ink, paint, bake lacquer, coating, plastic, sheet and woodwork. And the construction decoration materials: marble; granite; glass chemical polishing brick and pottery brick.

    Related Machine:

    ModelYG268 Tri-angleYG60 60° AccurateYG60°S Economic
    Measuring Angle20°/60°/85°60°60°
    Measuring Area(mm)20°: 9*10
    60°: 9*15
    85°: 5*38
    60°: 9*1560°: 9*15
    Measuring Range20°: 0~2000 GU
    60°: 0~1000 GU
    85°: 0~160 GU
    60°: 0~1000 GU60°: 0~200GU
    Division Value0.1 GU0.1 GU1 GU
    Measuring Time0.5S0.5S0.5S
    Repeatalibity0~100 GU: ±0.2 GU
    100~2000 GU: ±0.2 GU
    0~100 GU: ±0.2 GU
    100~1000 GU: ±0.2 GU
    0~100 GU: ±0.5 GU
    100~200 GU: ±0.5 GU
    AccurateConform with JJG696 first grade requirements of gloss meter
    Auto Power-off Timewithin 30s~120s30s
    Long-time CalibrationAutomatically check and made the calibration
    LanguageChinese and English
    Storage35000
    Basic mode &Statistic mode : 1500
    Continuous mode : 10000
    QC mode: 10000
    /
    Display2.3 inch white and black screen
    Size160*52*84mm
    WeightAbout 300g
    Power Supply1pc dry-cell battery(can measure 10000 times) or use USB Charge
    InterfaceUSB & Bluetooth 2.1 versionUSBUSB
    PC SoftwareGQC6 QC software can printing testing report and with more extended functions/
    OperationTemperature0-40℃(32-104° F)
    Storage Temperature-20-50℃(-4-122° F)
    Humidity< 85% RH, without condensation
    Standard AccessoriesUSB cable, user manual, calibration plate, QC softwareUser manual,
    Calibration plate
    Optional AccessoriesMiniature printer
