    Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : YG60
    Certification : CE,RoHs,ISO,ASTM etc.
    Payment Terms : T/T,Paypal
    Supply Ability : 1000pcs/month
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

    Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade

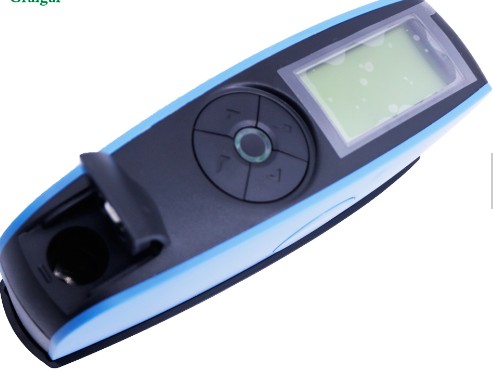

    YG60 Cheap Gloss Meter for Granite With Auto-calibrationand Glossmeter


    Brief Introduction:


    YG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. YG series gloss meter is independently developed by Shenzhen ThreeNH Technology Co.,Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.


    Features:


    • 60° angle for semi gloss;
    • with auto-calibration function;
    • elegant design combined with aesthetics and ergonomics;
    • large storage to save over 1500 datas;
    • Meet the first grade requirements of JJG696;
    • Connect to PC, more extend functions
    • One button for all angles measurement at the same location
    • Comply with international standards
    • Stable performance, easy to read data.
    • can realize auto power on & off automatically within 30s-120s

    Application:


    YG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.


    Specifications:

    ModelYG268 Tri-angleYG60 60° AccurateYG60°S Economic
    Measuring Angle20°/60°/85°60°60°
    Measuring Area(mm)20°: 9*10
    60°: 9*15
    85°: 5*38
    60°: 9*1560°: 9*15
    Measuring Range20°: 0~2000 GU
    60°: 0~1000 GU
    85°: 0~160 GU
    60°: 0~1000 GU60°: 0~200GU
    Division Value0.1 GU0.1 GU1 GU
    Measuring Time0.5S0.5S0.5S
    Repeatalibity0~100 GU: ±0.2 GU
    100~2000 GU: ±0.2 GU
    0~100 GU: ±0.2 GU
    100~1000 GU: ±0.2 GU
    0~100 GU: ±0.5 GU
    100~200 GU: ±0.5 GU
    AccurateConform with JJG696 first grade requirements of gloss meter
    Auto Power-off Timewithin 30s~120s30s
    Long-time CalibrationAutomatically check and made the calibration
    LanguageChinese and English
    Storage35000
    Basic mode &Statistic mode : 1500
    Continuous mode : 10000
    QC mode: 10000
    /
    Display2.3 inch white and black screen
    Size160*52*84mm
    WeightAbout 300g
    Power Supply1pc dry-cell battery(can measure 10000 times) or use USB Charge
    InterfaceUSB & Bluetooth 2.1 versionUSBUSB
    PC SoftwareGQC6 QC software can printing testing report and with more extended functions/
    OperationTemperature0-40℃(32-104° F)
    Storage Temperature-20-50℃(-4-122° F)
    Humidity< 85% RH, without condensation
    Standard AccessoriesUSB cable, user manual, calibration plate, QC softwareUser manual,
    Calibration plate
    Optional AccessoriesMiniature printer

    GQC6 Software Introduction:


    GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.
