Cheap 20° 60° 85° Measuring Angle floor gloss meter YG268 digital
glossmeter with 2000gu
Technical Specification
| Parameters | Tri-angle Gloss Meter YG268 |
| Measuring Angle | 20° & 60° & 85° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 20°: 9×10mm, 60°: 9x15mm, 85°: 5×38mm |
| Measuring Range | 20°: 0~2000GU, 60°:0~1000GU, 85°: 0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability | 0-100GU 100-2000GU
± 0.2GU ± 0.2%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class
Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±0.2, ±0.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 2.3" |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 1pcs of No.5 dry cell battery more than 10000 times (within 8
hours) |
| Dimension | 160*52*84mm |
| Weight | 350g |
| Measuring Mode&Storage | Basic Mode and Continuous Mode: 15000 Statistical Mode: 10000 QA Mode: 10000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and
More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software),
Calibration Plate |
| Optional Accessories | Mini Printer |
Brief Introduction
1. YG268 three angle smart glossmeter, whose complete proprietary
intellectual property rights are fully owned by 3nh, was researched
and developped complying with the international standard ISO2813
and China national standard GB/T9754, also the standard ASTM D 523
and ASTM D 2457.
2. YG268 features the accurate measurement, simple operation and
stable performance. 5 groups of data can be displayed on screen
simultaneously, easy to compare. The standard data value can be
manually input.
3. YG268 has four measuring modes.
Basic Mode, the simplest sample measurement mode;
Statistical Mode, the measuring mode with statistical function,
display the measurement value, average value, max value, min value,
standard deviation value, differential value and the PASS/FAIL
result; Continous Mode, the times of measurement and time interval
can be set before measuring, when press the measuring key, the
instrument will operate according to the setting.
QA Mode, for quality control at production line.
4. Now YG268 has been widely used by our customers all over the
world in many industries, like painting, lacquer, ink, coating,
leather, paper, printing, plastics, electronics, furnitures, wood,
decorating, ceramics, tiles, metals, hardware, marble,
electroplating, package, food, cosmetics, pharmacy, cloth, garment,
textiles, traffic signage, etc.
Frequently Asked Questions
1. Which models are the equivalent models to YG268 Gloss Meter?
Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design
and produce, market and sell color measuring instruments and gloss
meters. Our company and factory are located in Shenzhen which is
famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment
confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can
provide discount.
Company Detail

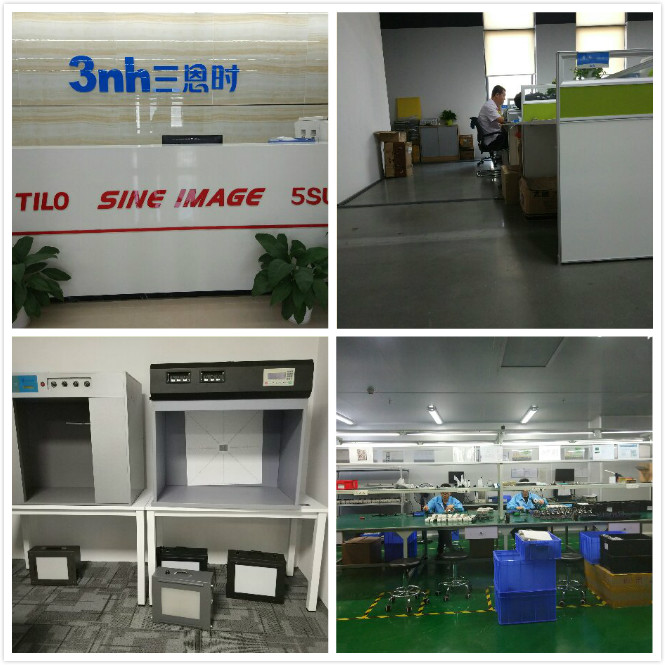

Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise, owning
