    60 Degree Digital Precise Micro Tri Gloss Meter Handy Simple Operation 0-300GU

    Universal Application 60 Degree Digital Precise Glossmeter Handy Simple Operation Gloss Meter


    Brief Introduction:

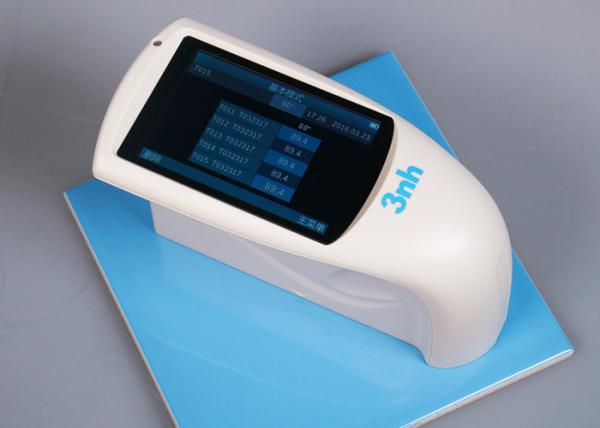

    HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.


    HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.


    Features:


    • 60° angle for semi gloss
    • Concise appearance, feel good
    • Display 5 sets of measurement data, good for comparison
    • Built-in lithium ion rechargeable battery
    • Basic model measurement can meet basic glossiness testing requirements
    • Connect to PC, more extend functions
    • One button for all angles measurement at the same location
    • Comply with international standards
    • Stable performance, easy to read data.

    Specifications:


    HG60 Economic Gloss Meter
    Model:HG60
    Measuring Angle60°
    Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
    Measuring Area (mm)9x15
    Measuring Range0~300GU
    Division Value0.1GU
    Measurement Range Repeatability Reproducibility0-10GU 10-100GU 100-300GU
    ± 0.1GU ± 0.2GU ± 0.2%GU
    ± 0.2GU ± 0.5GU ± 0.5%GU
    Measurement StandardConform with JJG696 first class glossmeter working requirement
    Chromaticity CorrespondingCorresponding with CIE 1931(2°) under CIE C light source
    Errors±1.5 , ± 1.5%
    Measuring Time0.5s
    DimensionL*W*H : 160mm*75mm*90mm
    Weight350g
    LanguageChinese/English
    Battery3200mAh Li-ion Battery , >10000 times(within 8 hours)
    DisplayTFT 3.5 inch
    InterfaceUSB/RS-232
    StorageBasic mode: 1000
    SoftwareGQC6 Quality Control Software with QC report printing functions and more extended functions.
    Operation Temperature0~40℃(32~104°F)
    Storage Temperature-20~50℃(-4~122°F)
    Humidity<85% relative humidity, no condensation
    Standard AccessoriesPower Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
    Optional AccessoriesMiniature Printer
    NoteThe specifications are subject to change without notice.


    GQC6 Software Introduction:


    GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.


    Application:


    HG60 Gloss Meter is a simple operation machine, can be wildly used in the field of automobile, paint, ink, coating, marble, printing, leather,plastic, electronic, furnnitue, ceramic electroplate, handware, etc.
