    High Stability Digital Gloss Meter Paint Surface YG60 0-2000GU Measuring Range

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : YG60
    Certification : CE,RoHs,ISO,ASTM etc.
    Payment Terms : T/T,Paypal
    Supply Ability : 1000pcs/month
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

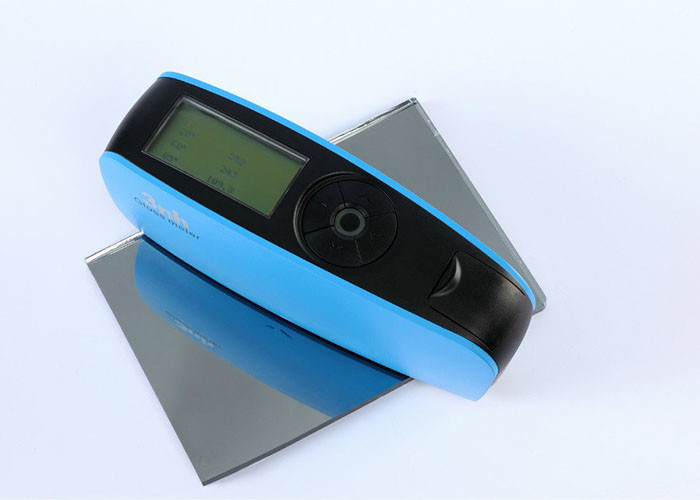

    High Stability Digital Gloss Meter Paint Surface YG60 0-2000GU Measuring Range

    Manufacturer export supply high stability paint surface YG60 gloss meter


    Brief Introduction:


    YG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. YG series gloss meter is independently developed by Shenzhen ThreeNH Technology Co.,Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.


    Features:


    • 60° angle for semi gloss;
    • with auto-calibration function;
    • elegant design combined with aesthetics and ergonomics;
    • large storage to save over 1500 datas;
    • Meet the first grade requirements of JJG696;
    • Connect to PC, more extend functions
    • One button for all angles measurement at the same location
    • Comply with international standards
    • Stable performance, easy to read data.
    • can realize auto power on & off automatically within 30s-120s

    Application:


    YG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.


    Specifications:


    YG60 Economic Gloss Meter
    Model:YG60
    Measuring Angle60°
    Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
    Measuring Area (mm)9x15
    Measuring Range60° :0-1000GU;
    Division Value0.1GU
    Measurement Range Repeatability Reproducibility0-100GU 100-2000GU
    ± 0.2GU ± 0.2%GU

    Measurement StandardConform with JJG696 first class glossmeter working requirement
    Auto Power-off TimeWithin 30-120s
    Long-time CalibrationAutomatically finished calibration
    Measuring Time0.5s
    DimensionL*W*H : 160mm*52mm*84mm
    Weight300g
    LanguageChinese/English
    Power Supply1pc dry-cell battery or use USB charge
    Display2.3 inch black and white screen
    InterfaceUSB
    Storage1500
    SoftwareGQC6 Quality Control Software with QC report printing functions and more extended functions.
    Operation Temperature0~40℃(32~104°F)
    Storage Temperature-20~50℃(-4~122°F)
    Humidity<85% relative humidity, no condensation
    Standard AccessoriesPower Adapter, USB cable, User Manual, GQC6 software CD (except YG60S), Calibration Plate
    Optional AccessoriesMiniature Printer
    NoteThe specifications are subject to change without notice.

    GQC6 Software Introduction:


    GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.
