60 degree digital glossmeter 1000 gu NHG60 spectro-guide sphere
gloss meter
Introduction:
NHG60 gloss meter features with 60° angle, manufactured according
to ISO2813 and GB/T 9754. It is also compatible with the standards
of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class
gloss meter working requirement, corresponding with CIE 1931(2°)
under CIE C light source.
Application:
NHG60 gloss meter can test material with gloss (0-1000Gu), and
universally apply to paint, ink, stoving varnish, coating, wood
products; marble, granite, vitrified polished tile, pottery brick
and porcelain; plastic, paper; hardware industries, etc. for gloss
measurement and gloss data transmission.

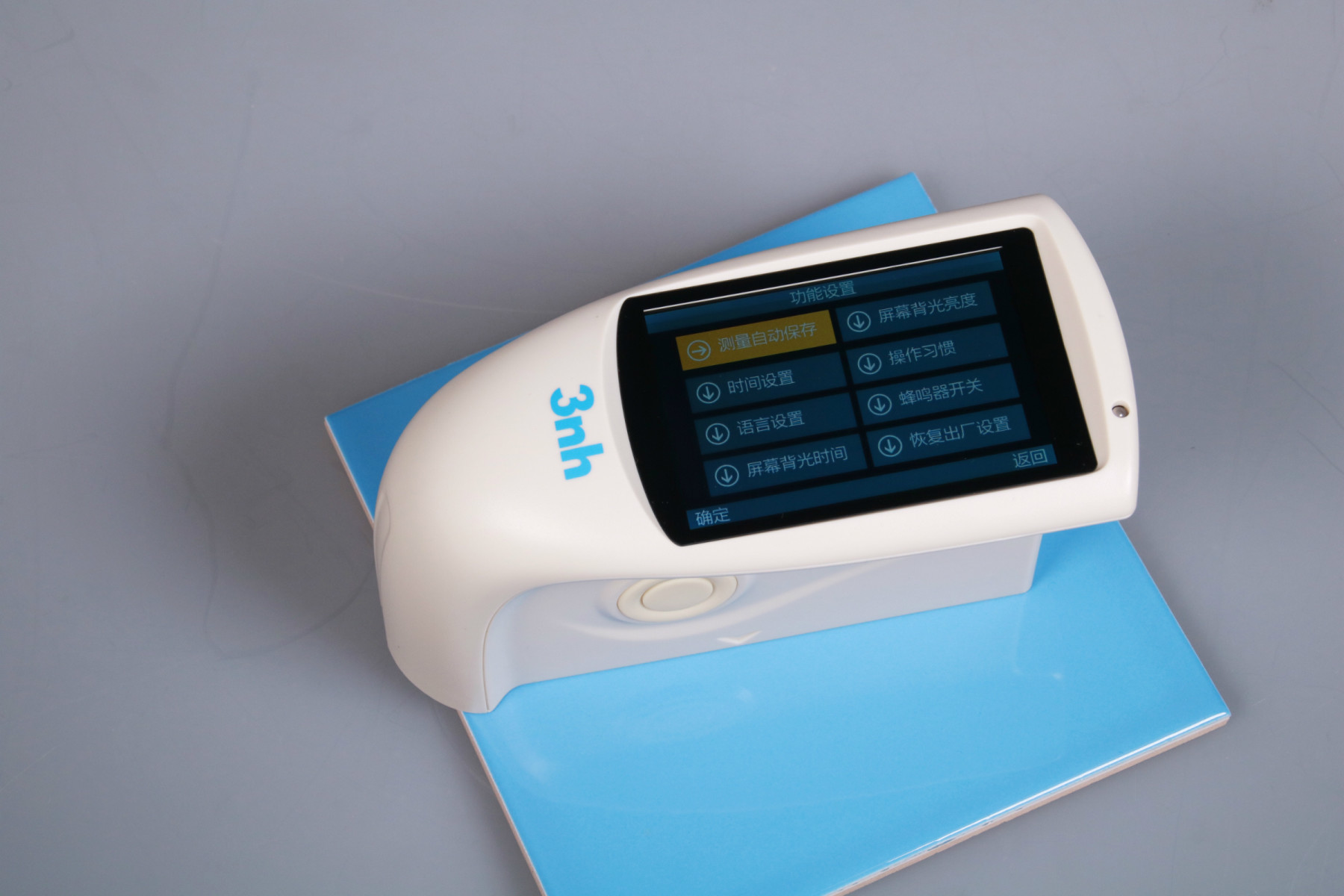

Pictures:
Features:
1. One button for all angles measurement at the same location
2. Display 5 sets of measurement data, good for comparison
3. Measuring mode: basic measurement, statistical measurement,
continuous measurement, QC measurement (only for GQC6 software).
4. Continuous mode to check uniformity over large areas
5. Connect to PC, more extend functions
6. Input gloss value manually
7. Large touch screen operation, easy to use
8. Beauty appearance, good man-machine communication interface
9. Powerful functions to meet many different requirements
Specification:
NHG60 60° Precise Gloss Meter
| Model | NHG60 |
| Measuring Angle | 60°
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area(mm) | 9x15 |
| Measuring Range | 0~1000GU |
| Division Value | 0.1GU |
Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class
Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±1.2, ±1.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 3.5" |
| Touch-Screen | Yes, Capacitive Touch Screen |
| Data Port | USB & RS232 |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery , >10000 times(within 8 hours) |
| Dimension | 160*75*90mm |
| Weight | 350g |
| Measuring Mode&Storage | Basic Mode: 1000; Statistical Mode: 5000; Continuous Mode: 5000 |
| Software | GQC6 Quality Control Software with QC Report Printing Functions and
More Extended Functions. |
| Operation Temperature | 0~40℃(32~104℉) |
| Storage Temperature | -20~50℃(-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software),
Calibration Plate |
| Optional Accessories | Miniature Printer |
Company info:
Shenzhen Threenh Technology Co., Ltd. was established in 1998. It
is a high-tech enterprise. We research, develop, produce and market
photoelectric detection products in photoelectric detection
technology field and color management field.After years of intensice research, 3nh has launched NS series
spectrophotometer and NH, NR series colorimeter, ISO12233
resolution test chart, optical image test solution and specific
standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment,
printing and dyeing, food, medical, cosmetic, optical image test
industries and the field of scientific research, school and
laboratory. Our products are exported around the world. We can
provide customization service which has been well received by
customers.
3nh cherishes talents, focuses on talents. Company brings together
many of high-level, high educated professionals. Among them,
undergraduate academic staffs of the total number of company
accounted for more than 80%; postgraduate staffs of the total
number of company accounted for 30%. It involves the fields of
photometry, electronic circuit, embedded system, photoelectric
detection, mechanical structure design, optical design, application
software, lighting technology electronic commerce and internet. 3nh
team has strong capability to design, develop and produce on its
own. The company has a large number of innovation patents, core
technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological
innovation, sustainable development” business philosophy to meet
customer demand continuously, to create value for customers and to
achieve win-win situation and common development.
Certificates:
ISO9001, CE, FCC, ROHS, TUV
