    Single Angle 3nh Digital Gloss Meter YG60 1000gu USB Data Port With Software

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : YG60
    Certification : CE, TUV, FCC, RoHs
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 1000 Units per Month
    Delivery Time : 1-5 Days
    • Product Details
    • Company Profile

    Single Angle 3nh Digital Gloss Meter YG60 1000gu USB Data Port With Software

    Cheap 3nh Single-angle Gloss Meter YG60 1000gu Glossmeter with Software


    Technical Specification


    ParametersSingle-angle Gloss Meter YG60
    Measuring Angle

    60°

    Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

    Measuring Area60°: 9x15mm
    Measuring Range60°:0~1000GU
    Division Value0.1GU
    Measurement Range Repeatability0-100GU 100-1000GU
    ± 0.2GU ± 0.2%GU
    Measurement StandardConform to the Working Requirements for JJG696 First Class Glossmeter
    Chromaticity ResponseCorresponding with CIE 1931(2°) under CIE C Light Source
    Tolerance±0.2, ±0.2%
    Measuring Time0.1s
    Display SizeTFT 2.3"
    Data PortUSB
    LanguageChinese, English
    Battery1pcs of No.5 dry cell battery more than 10000 times (within 8 hours)
    Dimension160*52*84mm
    Weight350g
    Measuring Mode&Storage

    Basic Mode and Continuous Mode: 15000

    Statistical Mode: 10000

    QA Mode: 10000

    PC SoftwareGQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions
    Operation Temperature0~40℃ (32~104℉)
    Storage Temperature-20~50℃ (-4~122℉)
    Humidity<85% Relative Humidity, No Condensation
    Standard AccessoriesPower Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
    Optional AccessoriesMini Printer

    Product Description

    YG series gloss meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.


    YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.


    Features:

    1. Elegant Design combined with aesthetics and ergonomics;

    2. With auto-calibration function;

    3. Meet the first grade requirements of JJG696;

    4. Large storage to save over 35000 data;

    5. Auto Power-off within optional 30-120 seconds;

    6. Comply to ISO2813,ASTM523, GB/T9754;

    7. With PC software for quality report, more extend functions;

    8. With multi working modes and multi-functions for most customers’ requirements.


    Application:

    Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

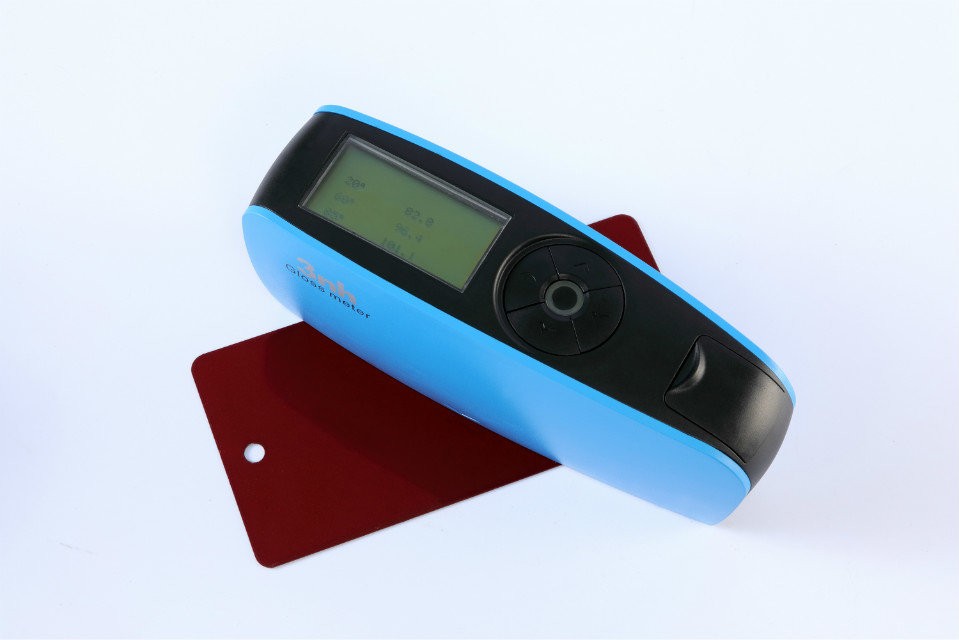

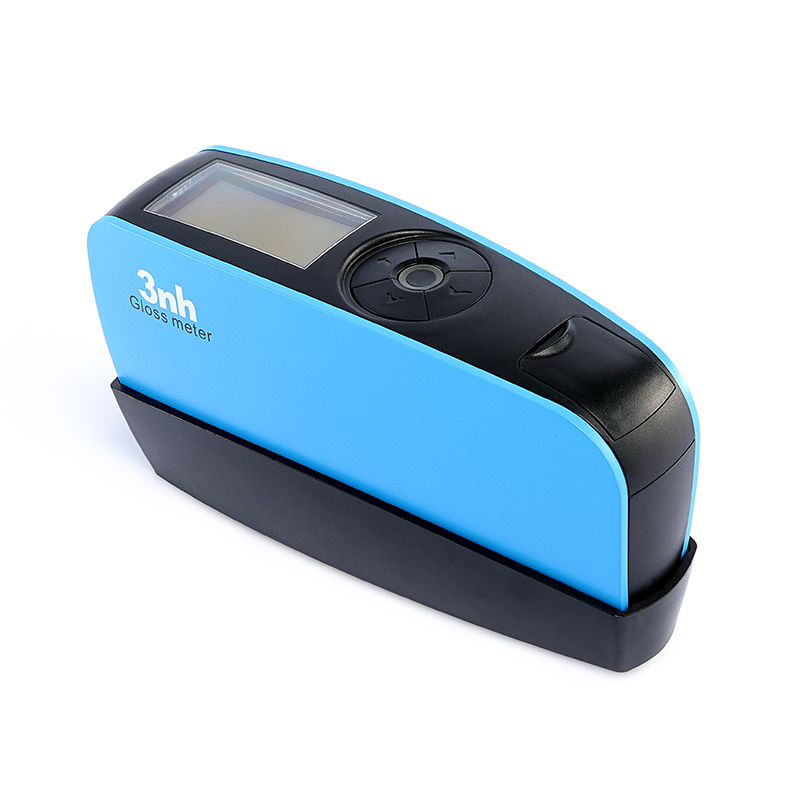

    Images:

    GW6A8190YG-22GW6A8379GW6A8382GW6A8387GW6A8380
    Packaging & Shipping

    Size29*19*10mm
    Gross weight1.5kg
    Standard accessoryPower Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
    Optional accessorymicro printer
    Our Services

    We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.

    Company Information

    Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.


    Our Certificates:
    ISO9001:2008; CE; FCC; ROHS; TUV.


    The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.


    FAQ

    1. Which models are the equivalent models to YG268 Gloss Meter?

    Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
    2. Are you a trader or a manufacturer?
    Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
    3. What's your main market.
    Answer: We sell to the global market.
    4. How long is your delivery time?
    Answer: Generally it is 1-3 working days after the payment confirmed.
    5. What is your payment terms?
    Answer: The payment term is 100% T/T in advance.
    6. What's your minimum order quantity (MOQ)?
    Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
