    2000gu Digital Gloss Meter 3nh YG268 Triangles USB / Bluetooth For Glossy Measurement

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : YG268
    Certification : CE, TUV, FCC, RoHs
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 1000 Units per Month
    Delivery Time : 1-5 Days
    • Product Details
    • Company Profile

    2000gu Digital Gloss Meter 3nh YG268 Triangles USB / Bluetooth For Glossy Measurement

    India gloss meter 3nh YG268 cheap glossmeter 2000gu with triangles for glossy measurement

    Product Description

    YG series gloss meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.


    YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.


    Features:

    1. Elegant Design combined with aesthetics and ergonomics;

    2. With auto-calibration function;

    3. Meet the first grade requirements of JJG696;

    4. Large storage to save over 35000 data;

    5. Auto Power-off within optional 30-120 seconds;

    6. Comply to ISO2813,ASTM523, GB/T9754;

    7. With PC software for quality report, more extend functions;

    8. With multi working modes and multi-functions for most customers’ requirements.


    Application:

    Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.


    Specification:

    YG Series Specification Parameter
    ModelYG60S 60°Economic Gloss MeterYG60 60°Accurate Gloss MeterYG268 Tri-angle Gloss Meter
    Measuring Angle60°60°20° 60°85°
    Measuring Area60°: 0-200GU60°: 0-1000GU20°: 0-2000GU
    60°: 0-1000GU
    85°: 0-160GU
    Division Value1GU0.1GU
    Measuring ModesBasic modeBasic mode; Statistic mode; Continuous mode; QC mode
    Measuring Time0.5S
    Repeatability0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
    AccurateConform with JJG696 second grade requirements of gloss meterConform with JJG696 first grade requirements of gloss meter
    Auto Power-off Time30sWithin 30s-120s
    Long-time Calibration/Automatically check and made the calibration
    LanguageChinese & English
    Storage/35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
    Display2.3 inch white and black screen
    Size160*52*84mm
    WeightAbout 300g
    Power Supply1pc dry-cell battery(can measure 10000 times) or use USB Charge
    InterfaceUSBUSB & Bluetooth 2.1 version
    PC Software/GQC6 QC software can printing testing report and with more extended functions
    Operation Temperature Range0-40℃(32-104° F)
    Storage Temperature Range-20-50℃(-4-122° F)
    Humidity Range< 85% RH, without condensation

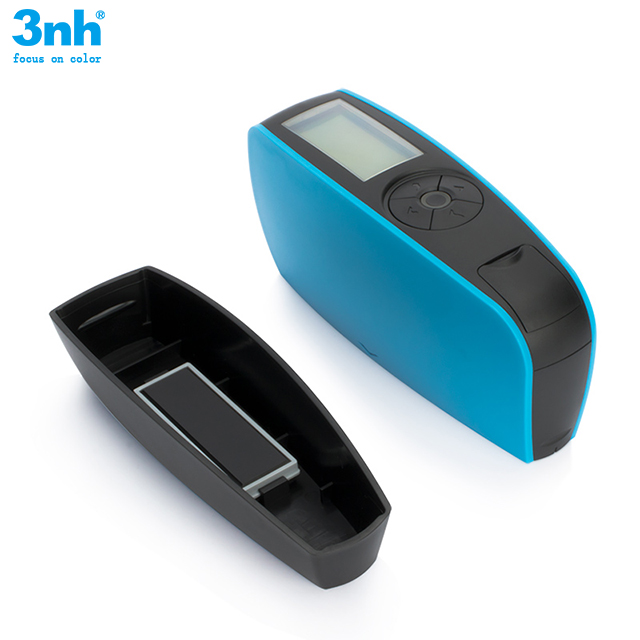

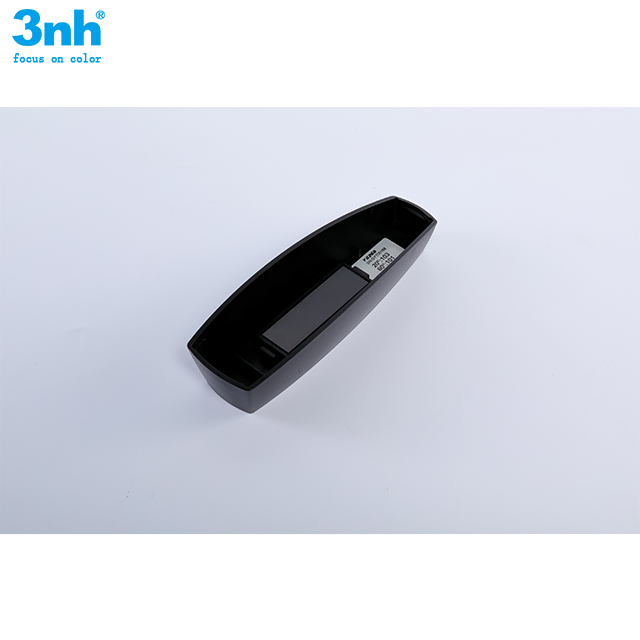

    Standard AccessoriesUser manual, calibration plateUSB cable, user manual, calibration plate, QC software
    Optional AccessoriesMiniature printer
    Notification: the technical parameter is only for reference

    Details:

    gloss meter in car paintTriangle 0-2000GU gloss meter" width="600" ori-width="2000" ori-height="1333" />GW6A8190.jpgYG268 precise glossmeterYG268 precise glossmeterYG268 precise glossmeterYG268 precise glossmeterYG268 precise glossmeterYG268 precise glossmeterYG268 precise glossmeterYG268 precise glossmeter
    Packaging & Shipping

    Size45*50*32mm
    Gross weight15kg
    Standard accessoryPower Adapter, User Guide, CD Disk(PC Software), USB cable, White and Black Calibration Cavity, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber.
    Optional accessoryUniversal test components, micro printer, power test box
    Our Services

    We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.

    Company Information

    Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.


    Our Certificates:
    ISO9001:2008; CE; FCC; ROHS; TUV.


    The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.


    FAQ

    1. Which models are the equivalent models to YG268 Gloss Meter?

    Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
    2. Are you a trader or a manufacturer?
    Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
    3. What's your main market.
    Answer: We sell to the global market.
    4. How long is your delivery time?
    Answer: Generally it is 1-3 working days after the payment confirmed.
    5. What is your payment terms?
    Answer: The payment term is 100% T/T in advance.
    6. What's your minimum order quantity (MOQ)?
    Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
