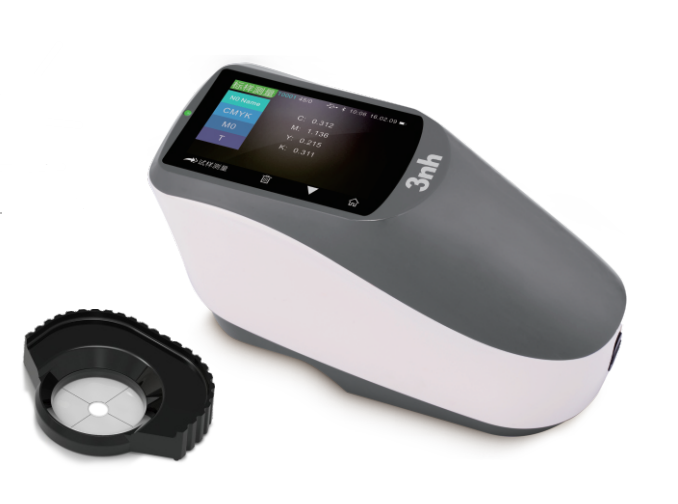

3nh launched new model YD5010 Grating Spectrophotometer
Densitometer with 45/0(45 ring-shaped illumination, 0 degree
viewing angle), comply to standard ISO 5-4,CIE No.15. It is
suitable for using in ink printing, in Film Processing, Textile
Printing and Dyeing, Plastic Electronics and Other Industries for
Color Measurement and Quality Control;especially suitable for the
measurement and quality control of optical density and dot
enlargement in ink printing; and it is able to customize single
aperture Φ2mm,Φ4mm,Φ8mm.
Product Features
1.Perfect combination of the beautiful appearance and the ergonomic
structure design;
2.Combined LED light sources with long life and low power
consumption, including UV light;
3.Switchable apertures: Φ2/4/8/20mm, adapt to more samples;
4. Accurately measure reflectance spectrum, CMYK density and Lab
value of the sample;
5.High-configuration electronic hardware: 3.5-inch TFT true-color
screen, capacitive touch screen, concave grating, 256-pixel
dual-array CMOS image sensor, etc.;
6.Two standard observer angles: 2/10, multiple light source modes
and color systems;
7.USB mode is widely useful;
8.Large-capacity storage space, over 10,000 test data;
9.Especially suitable for process control and quality control of
printing plants;

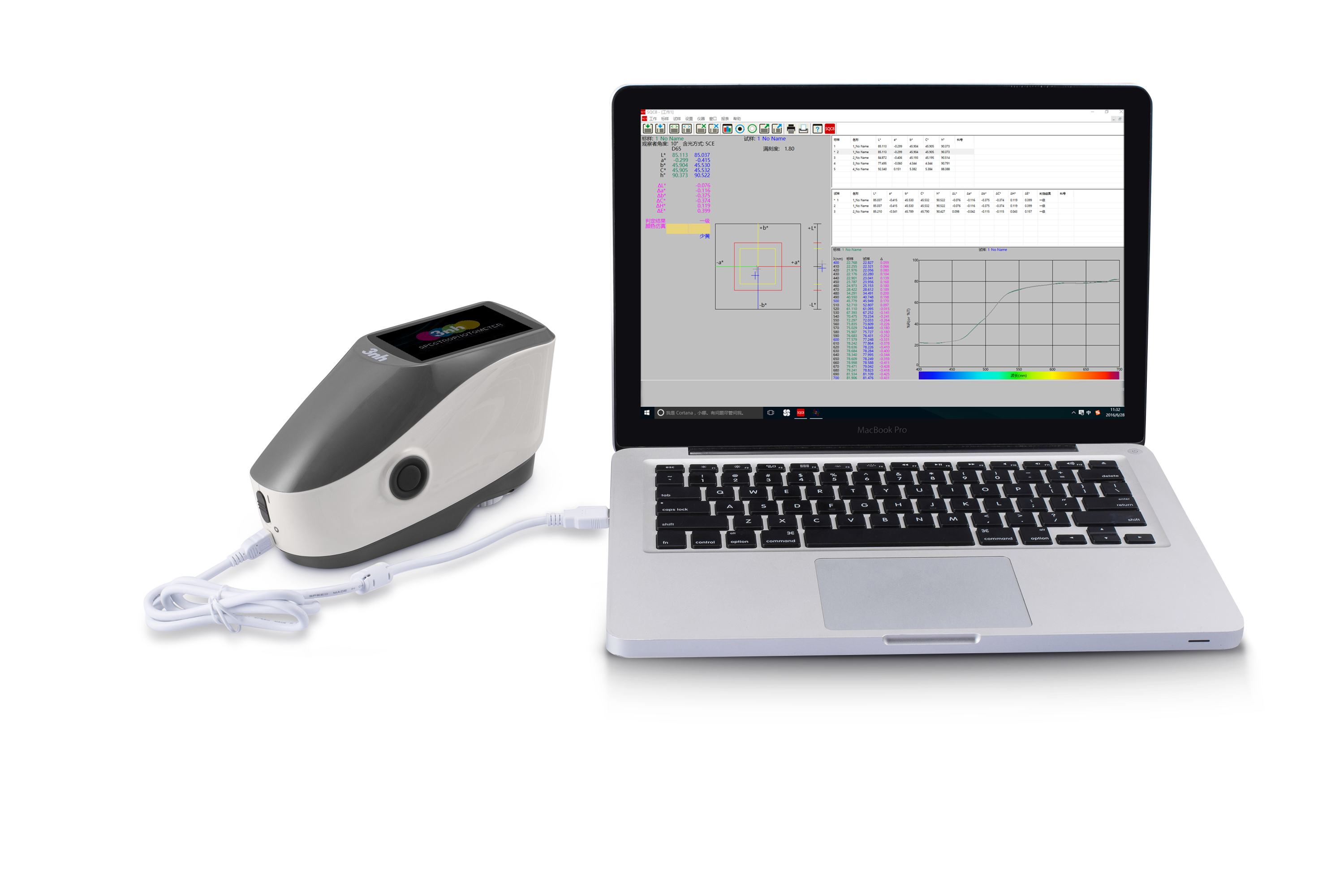

10. PC software has powerful function expansion.
| Model | YD5010 45/0 Spectrophotometer Densitometer |
| Measurement Geometry | 45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO
5-4,CIE No.15 |
| Features | Common spectrophotometer densitometer, apply in ink printing, in
Film Processing, Textile Printing and Dyeing, Plastic Electronics
and Other Industries for Color Measurement and Quality
Control;especially suitable for the measurement and quality control
of optical density and dot enlargement in ink printing;able to
customize single aperture Φ2mm,Φ4mm,Φ8mm. |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
Wavelength Pitch & Half Bandwidth | 10nm |
| Measurement Condition | Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter) |
| Density Standards | ISO Status A, E, I, T |
| Density index | Density value, density difference, dot area, dot enlargement,
overprint, printing characteristics, printing contrast, tone error
and gray level |
| Measurement aperture | Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh |
| Color Difference Formula | ΔE*ab |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),Opacity, |
| Observer Angle | 2°/10° |
| Illuminants | A,C,D50,D55,D65,D75 |
| Measurement Time | About 1.5s |
| Repeatability | Density: Within 0.01 D Chromaticity value:within ΔE*ab 0.04 ( When a white calibration
plate is measured 30 times at 5 second intervals after white
calibration) |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | about 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB |
| Data memory | 10000pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Storage & Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude:
less than 2000 m |
| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual,
software(download from the website),White and Black Calibration
Board, Protective Cover.Polarization filter box |
| Optional Accessory | Micro Printer,Locating Plate |
| Notes: The specifications are subject to change without notice. |

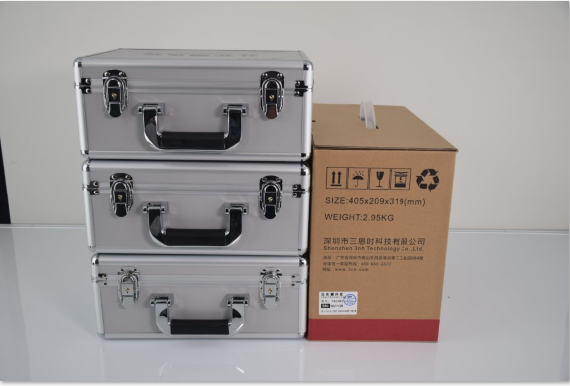

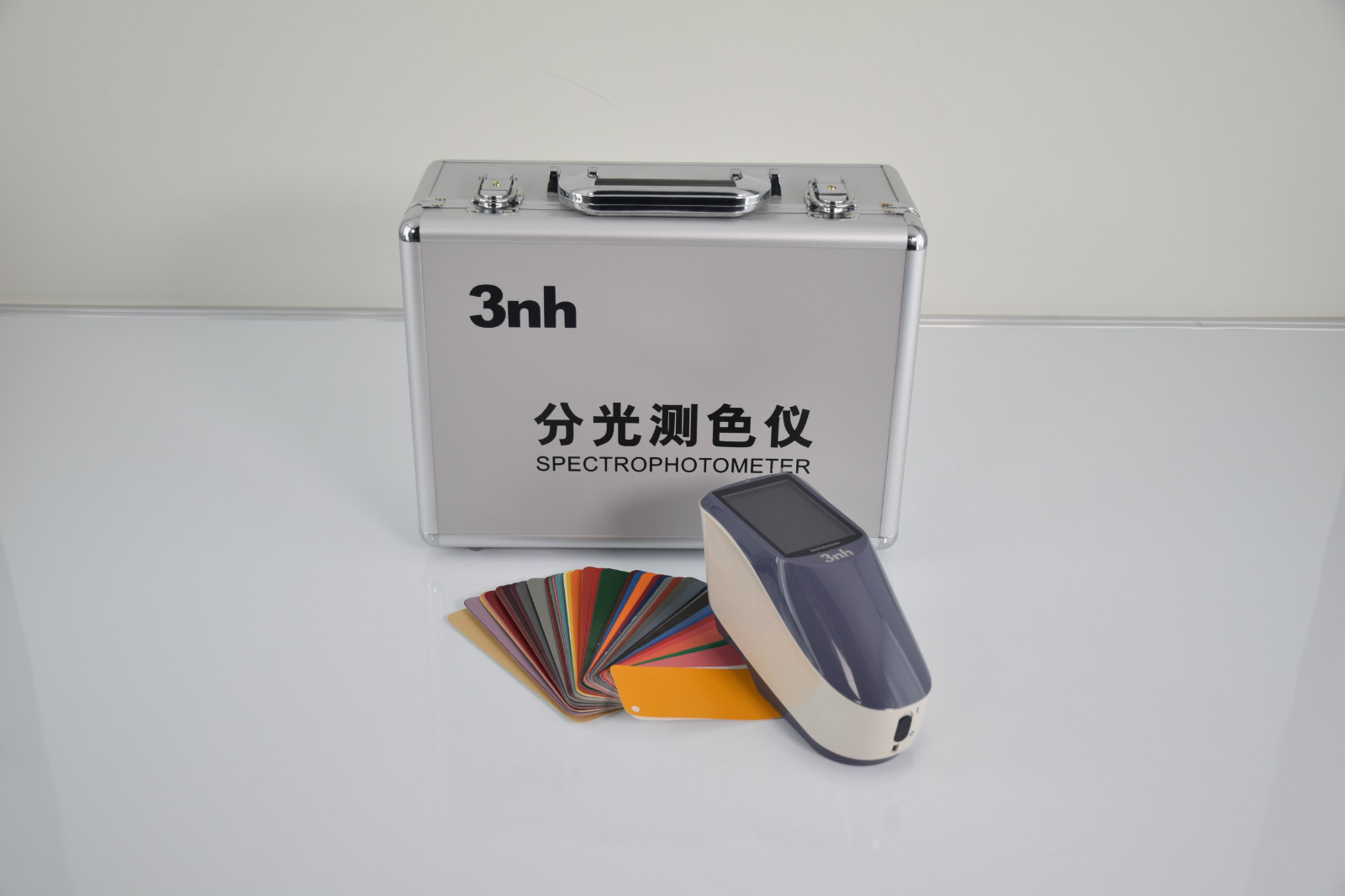

Pictures
Frequently Asked Questions
1. Can the YD5010 spectrodensitometer be equivalent to any models
of world famous brands?
Answer: Yes, our YD5010 is equivalent to the model of Xrite Exact
standard spectrophotometer density meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design
and produce, market and sell color measuring instruments and gloss
meters.
Our company office, together with our factory are located in
Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment
confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the
first suggested payment method is by starting the order here via
Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can
provide discount.
Comparasion with Other brands
| 3nh Instrument | Description | Similar Models |
| YS6060 Spectrophotometer | d/8°;d/0° | CI7800,CM3600A |
| YS4560 Spectrophotometer | 45°/0 | BYK 6801,CM2500C |
| YS4510 Spectrophotometer | 45°/0 | CM2500C,CS600C |
| YD5050 Spectrophotometer | 45°/0 | Exact advance |
| YD5010 Spectrophotometer | 45°/0 | Exact basic, basic density meter |
| YS3060 Spectrophotometer | d/8° | X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d |
| YS3010 Spectrophotometer | d/8° | X-rite Ci60; MINOLTA CM-2300d |
| NS800 Spectrophotometer | 45°/0 | BYK 6801 |
| NR60CP Colorimeter | 8°/d | MINOLTA CR-10 plus |
| NHG268 Gloss Meter | 20°, 60°, 85° gloss | BYK 4563 |
| NHG60 Gloss Meter | 60° gloss | BYK 4561 |
| T90-7 Light Cabinet | 7 Illuminants | X-rite SpectraLight QC
|
