Color density meter YD5010 45/0 spectrophotometer for CMYK, Lab,
density Measurement
1. Product Profile
YD5010 portable spectro-densitometer is a high-end precise
instrument for the measurement of printing optical density and
colors, which is designed to be applied in industries like
printing, packaging and ink, film process, etc.
Functionality | YD5010 | YD5050 |
Density Index | CMYK,Spot Colors | CMYK and Spot | CMYK and Spot |
Density State | T,E,A,I | T,E,A,I |
Density Trend | √ | √ |
Densitometry | √ | √ |
CMY Balance | √ | √ |
Dot Area | √ | √ |
Dot Gain | √ | √ |
Overprint | √ | √ |
Printing Characteristics | √ | √ |
Printing Contrast | √ | √ |
Tone Errors and Gray Patch | √ | √ |
Printing Plate | √ | √ |
Chromaticity index | L*a*b*,L*C*h° | √ | √ |
dE*76,dE*94,dE*00,dECMC | √ | √ |
A,C,D50,D55,D65,D75,F2,F7,F11,F12 | √ | √ |
XYZ,Yxy | √ | √ |
Special | Reflection Graph | √ | √ |
Paper Indices |
| √ |
Opacity |
| √ |
de Trend |
| √ |
Metamerism |
| √ |
Absolute Color Strength |
| √ |
Relative Color Strength |
| √ |
Best Match |
|
|
QC Function | Paper QC |
|
|
Best Match Table |
|
|
Ink QC |
|
|
TVI Table |
|
|
Gray Balance QC |
|
|
| G7,PSO,ISO,JapaColor |
|
|
Custom Work Template |
|
|
Color Library | Pantone PMS+ |
|
|
PantoneLIVE |
|
|
Custom color library |
|
|
Security | Security Settings |
|
|
Multiple User Profiles |
|
|
Other | Scan Mode |
|
|
Spectral Data Derivation |
| √ |
Pass or Failure | √ | √ |
Averaging |
| √ |
Sample Storage |
|
|
Standard |
|
|
Interface | USB | √ | √ |
Bluetooth |
| √ |
Software |
| √ | √ |
2. Detailed Technical Parameter / Specification Form
| Technical Parameter Items | YD5010 Portable Spectro-densitometer |
| Product Category | Optical Density Measurement Instrument |
| Product Name | Portable Spectro-densitometer |
| Application | For the measurement of optical density and colors in industries
like printing, packaging and ink, film, plastics and electronics,
etc. |
| Optical Geometry | 45°/0 Conform to standards ISO 5-4, CIE No.15 |
| Measuring Apertures | Customize One Aperture from: ∅2mm / ∅4mm / ∅8mm |
| Measurement Conditions | Conform to the measurement conditions of ISO 13655 M0 (CIE Light Source A) M1 (CIE Light Source D50) M2 (Illuminance Excluding UV) M3 (M2 + Polarization Filter) |
| Density Standards | ISO Status T, E, A, I |
| Density Index | Density Value, Density Difference, Dot Area, Dot Gain, Overprint,
Printing Characteristics, Printing Contrast, Chromaticity
Difference, Greyscale. |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh. |
| Color Difference Formulas | ΔE*ab, ΔE*94, ΔE*00 |
| Repeatability Error | For Color: ΔE*Lab≤0.04 For Density: Within 0.01D |
| Inter-instrument Error | For Color: ΔE*Lab≤0.2 |
| Other Colorimetric Index | Non |
| Information Displayed | Spectrogram/Data, Chromaticity Diagram/Values, Color Difference
Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction |
| Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined LED Lamps, UV Lamps |
| Lamps Life-span | 5 Years, more than 3 Million times of measurements. |
| Wavelength Range | 400nm - 700nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0∼200% |
| Illuminants | D65, A, C, D50, D55, D75, F2(CWF), F7(DLF), F11(TL84),
F12(TL83/U30), UV. |
| UV Light Source | Yes. Include UV / Exclude UV. |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Spectroscope | Concave Grating |
| Location Method | By Locating Plate |
| Measurement Time | 1.5s |
| Data Storage Capacity | 10000 pcs of data |
| Data Transmission Port | USB |
| PC Terminal Software | SQCX (for free) |
| Display Screen | 3.5 inches TFT Capacitance Screen-touch Display |
| Language Built-in | English, Chinese. (If need German, French, Spanish, Italian or
Russia, please specify) |
| Power Supply | Built-in Rechargeable Battery, Power Adapter |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | White and Black Calibration Board, Customized Aperture, Power
Adapter, USB Cable, PC Software SQCX, Bluetooth Adapter,
Polarization Filter, Locating Plate, User Guide. |
| Optional Accessories | Mini Thermal Printer |
| Weight | 600g |
| Dimension | 184*77*105mm |
3. Detailed Introduction to Instrument

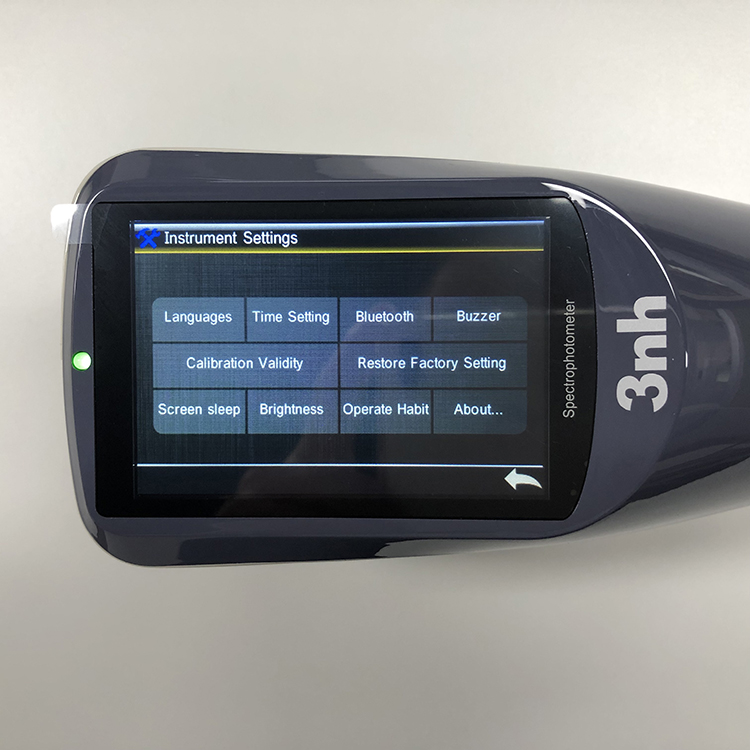

3.1. High configuration of hardware: 3.5 inches TFT capacitance
screen-touch display, showing more comprehensive density and
colorimetric indexes in one screen, making your operation more
convenient and freer, checking the information you want very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it have a
high resolution and more sensitive to density and colors.
3.3. Long life-span stable LED & UV LED lamps which can generate
different kinds of light sources and color temperatures more
accurately. LED lamps are famous for their durablility which makes
the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more
accurately.
3.5. Pass/Fail test result indication, help you to decide whether
the color of the sample meets the requirements very promptly.

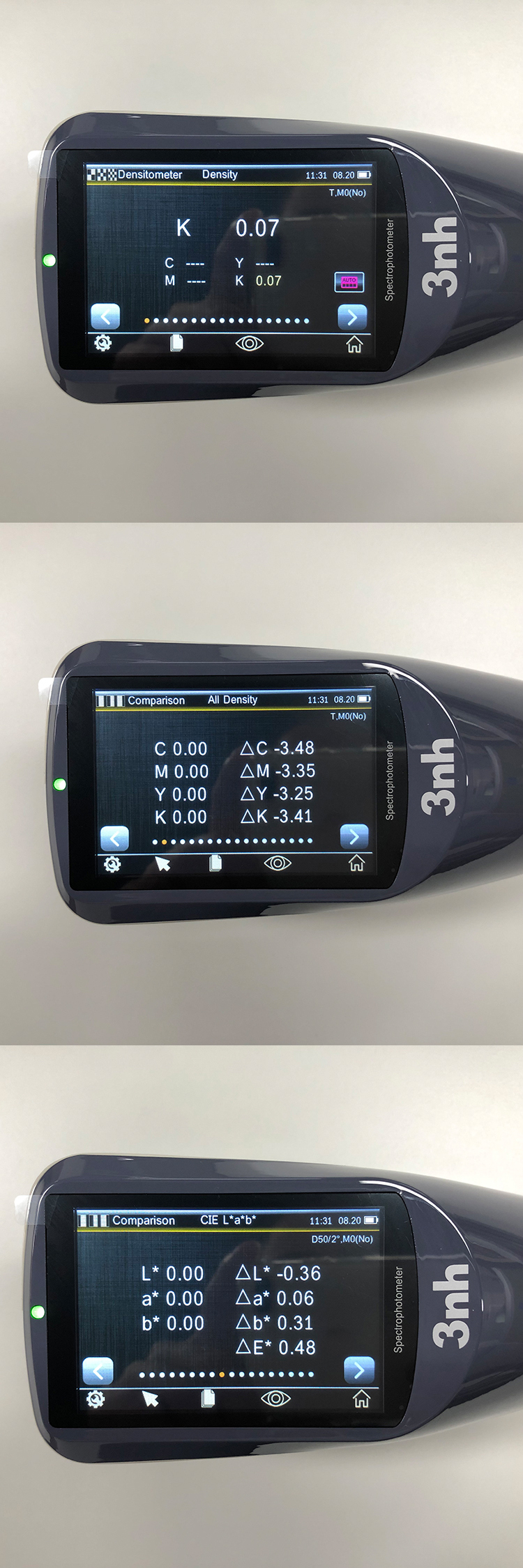

3.6. Color Offset/Deviation Direction indication between the
standards and the samples which is definitely helpful for you to
figure out the wanted color formulation.

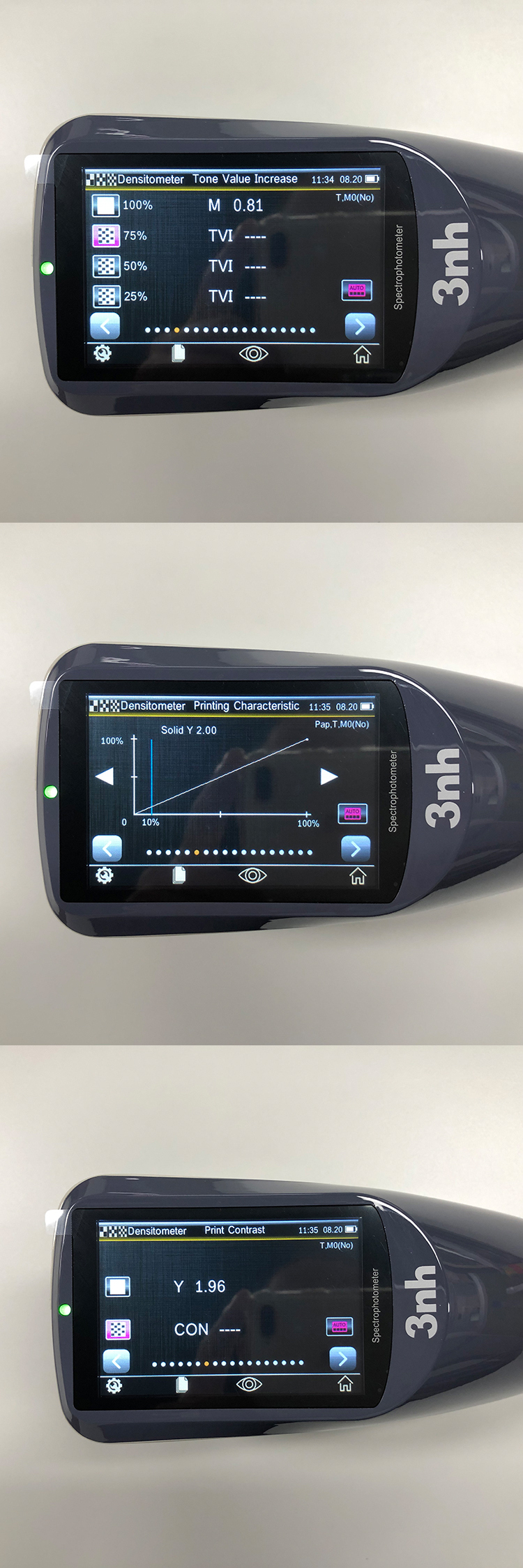

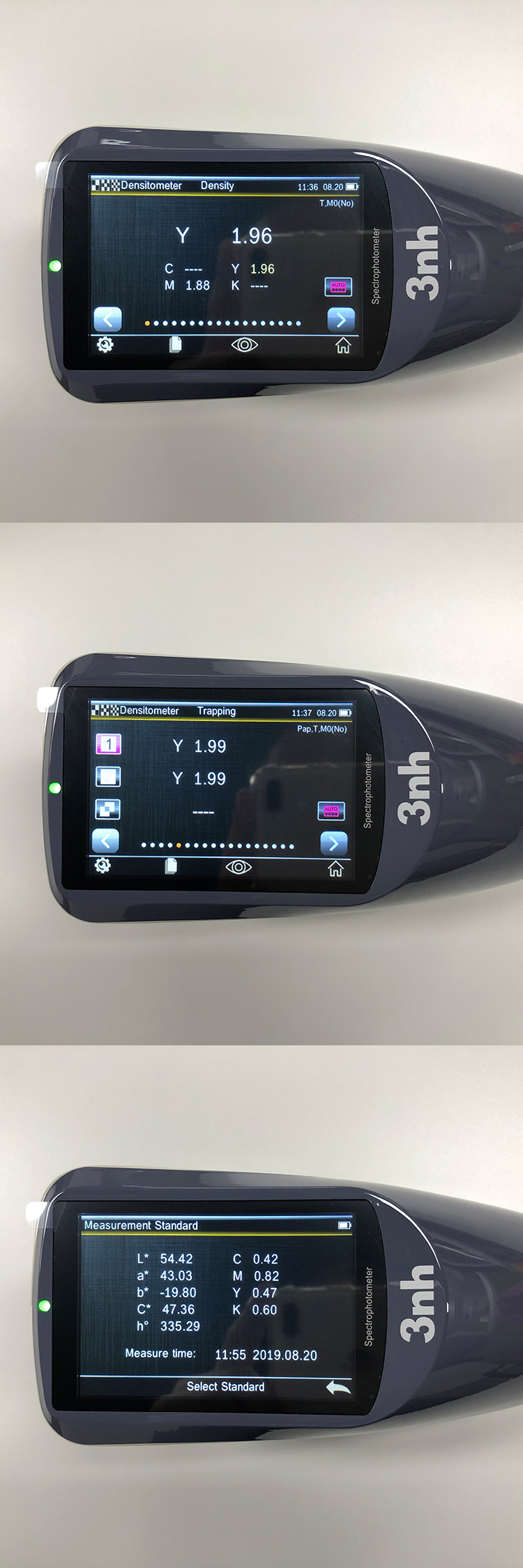

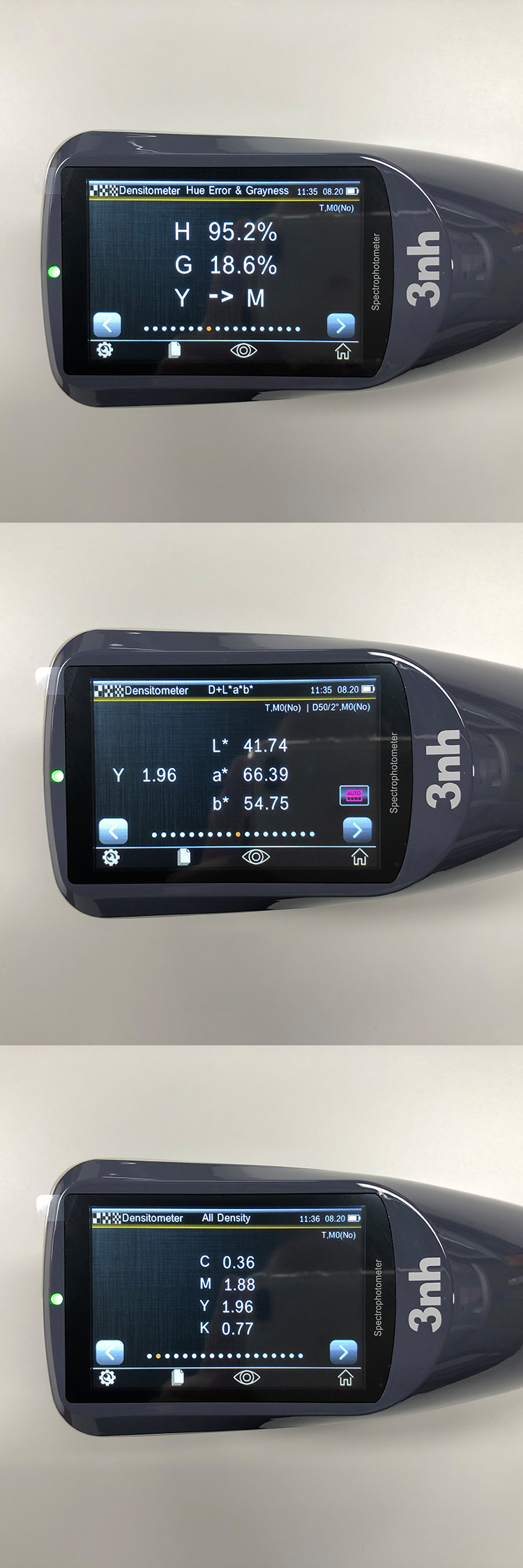

3.7. All the parameters about printing: CMYK, Density, Dot Area,
Dot Gain, etc. One instrument meets all requirements.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely
adopted in color measuring instruments. Reflective 45°/0 Geometry
is for measuring colors of non-transparent targets.
3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm,
different choice according to different application situations.
3.10. Multiple kinds of Color Spaces, Color Difference Formulas and
Colorimetric Indexes, meet different requirements for color
measurement and color analysis.
3.11. Include multiple kinds of light source types, can be applied
to most of the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode,
meet more color management situations.
3.13. Powerful data management functions, you can search and check
records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended
powerful functions for color data management can definitely
facilitate your color management work.
3.15. USB data port, implement data transmission more convenient
and prompt.
Frequently Asked Questions
1. Can the YD5010 spectrodensitometer be equivalent to any models
of world famous brands?
Answer: Yes, our YD5010 is equivalent to the model of Xrite Exact
standard spectrophotometer density meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design
and produce, market and sell color measuring instruments and gloss
meters.
Our company office, together with our factory are located in
Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment
confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the
first suggested payment method is by starting the order here via
Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can
provide discount.
