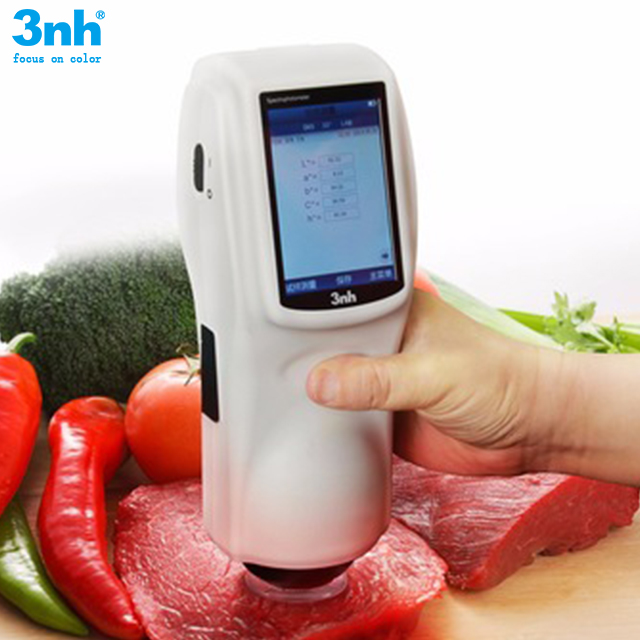

    NS800 Paint Matching Spectrophotometer 58mm Integrating Sphere Size Food Analysis

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NS800
    Certification : CE, TUV, FCC, ISO9001, RohS
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 500 Units per Month
    Delivery Time : 2-5 work days
    • Product Details
    • Company Profile

    NS800 Paint Matching Spectrophotometer 58mm Integrating Sphere Size Food Analysis

    58mm Integrating sphere Size Food analysis spectrophotometer NS800 with 8mm measuring aperture 3nh


    Brief Introduction


    Certificates: ISO9001:2008; CE; FCC; ROHS; TUV.


    NS800 spectrophotometer is developed by 3nh with independent intellectual property rights. It uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis.


    NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.


    Technical Specification


    ParametersSpectrophotometer NS800
    Optical Geometry45°/0
    Inte-grating Sphere SizeΦ58mm
    Measuring ApertureΦ8mm
    RepeatibilityΔE*≤0.04
    Inter-instrument AgreementΔE*≤0.2
    Observer Angle2° & 10°
    Wavelength Range400-700nm
    Wavelength Pitch10nm
    Reflectance Range0-200%
    Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV
    Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v
    Displayed DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
    Other Chromaticity DataWI(ASTM E313, CIE/ISO, AATCC, Hunter),
    YI(ASTM D1925, ASTM 313),
    TI(ASTM E313, CIE/ISO),
    Metamerism Index (Mt),
    Color Strength, Color Stain, Color Fastness
    IlluminantD65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
    Illuminant DeviceCombined LED Light
    Illuminant Lifespan5 years, More than 1.6 million measurements
    SensorSilicon Photoelectric Diode Array
    Data Storage1000 Standards, 15000 Samples
    Data PortUSB
    Display SizeTFT 3.5"
    Touch-ScreenYes
    Working Temperature0~40℃(32~104℉)
    Storage Temperature-20~50℃(-4~122℉)
    PC SoftwareSQC8
    Weight600g
    Dimension90*77*230mm
    Battery3200mAh Large Capacity Li-ion Battery
    Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
    Optional AccessoryUniversal Test Components, Micro Printer, Powder Test Box

    Application Industry

    Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.


    Frequently Asked Questions


    1. Which models are the equivalent models to NS800?
    Answer: BYK 6801 Spectro is the equivalent models to 3nh NS800 (About color measurement function).
    2. Are you a trader or a manufacturer?
    Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
    3. What's your main market.
    Answer: We sell to the global market.
    4. How long is your delivery time?
    Answer: Generally it is 1-3 working days after the payment confirmed.
    5. What is your payment terms?
    Answer: The payment term is 100% T/T in advance.
    6. What's your minimum order quantity (MOQ)?
    Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.


    58mm Integrating sphere Size Food analysis spectrophotometer NS800 with 8mm measuring aperture 3nh
