    Professional Handheld Color Spectrophotometer SQC8 Software For Printing Industry

    NS800 45/0 Printing Industry Used Professional Color Spectrophotometer with SQC8 Software

    Brief Introduction:


    NS800 is handheld spectrophotometer for color quality control, which are wildly used in laboratory and industry. 400-700nm wavelength enable the accurate in color anasis in multiple illuminants.


    45-degree/0-degree geometry making the measurements more closely correlated with visual assessment and compliant with CIE, ISO, ASTM, CE standard. Ring illumination makes the measurements not sensitive to rotation. 45-degree/0-degree geometry produces some results as 0-degree/45-degree measuring.


    Ergonomic design, stable performance,precise measurement and powerful function make this device a best helper in plastic, electronics, paint, ink, food, medical, cosmetics and other applications.


    Applications:


    NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.


    Specification:


    ModelNS800
    Illumination/observation system45/0 method (45 ring-shaped illumination, vertical viewing)
    Comply with CIE No.15,GB/T 3978.
    Integrating sphere SizeΦ58mm
    Light Sourcecombined LED sources
    SensorSilicon photodiodearray
    Wavelength range400~700nm
    Wavelength pitch10nm
    Reflectance range0~100%
    Measuring ApertureΦ8mm
    Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV
    Color difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
    v
    Other Chromaticity DataWI(ASTM E313,CIE/ISO,AATCC,Hunter),
    YI(ASTM D1925,ASTM 313),
    TI(ASTM E313,CIE/ISO),
    Metamerism Index (Mt)
    Colour Stain, Color Fastness
    Observer2°/10°
    IlluminantD65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
    Display DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
    Measurement Time1.5s
    RepeatabilitySpectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
    Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
    Inter Instrument AgreementWithin DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
    DimensionL*W*H=90*77*230mm
    Weight600g
    BatteryLi-ion battery. 5000 times within 8 hours.
    Lamp Life5 years, more than 1.6 million measurements
    Display ScreenTFT 3.5inch, Capacitive Touch Screen
    InterfaceUSB/RS-232
    Data Memory1000 Standards, 10000 Samples
    Operating Temperature0~40℃(32~104°F)
    Storage temperature-20~50℃(-4~122°F)

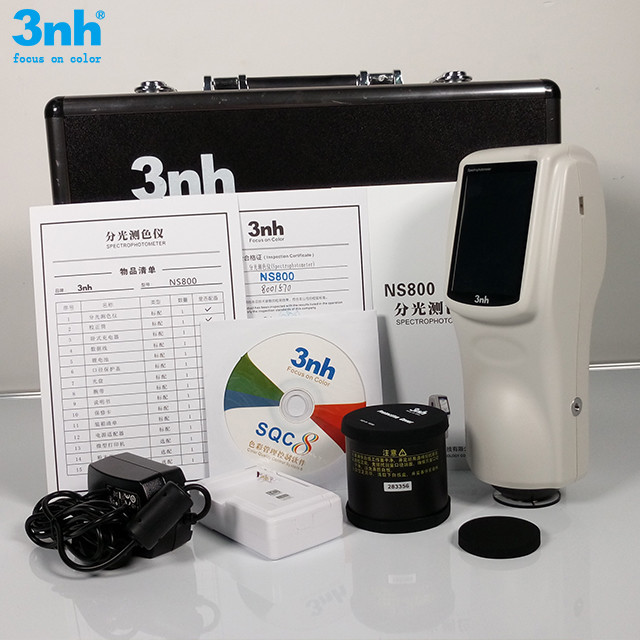

    Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
    Optional AccessoryMicro Printer, Powder Test Box
    NotesThe specifications are subject to change without notice.
