    YE083 Sineimage Gray Scale Test Chart TE83 Gamma 0.45 High Accuracy For Evaluation

    YE083 Sineimage gray scale test chart TE83 gray target (Gamma = 0.45) for evaluation of the halftone reproduction of cameras

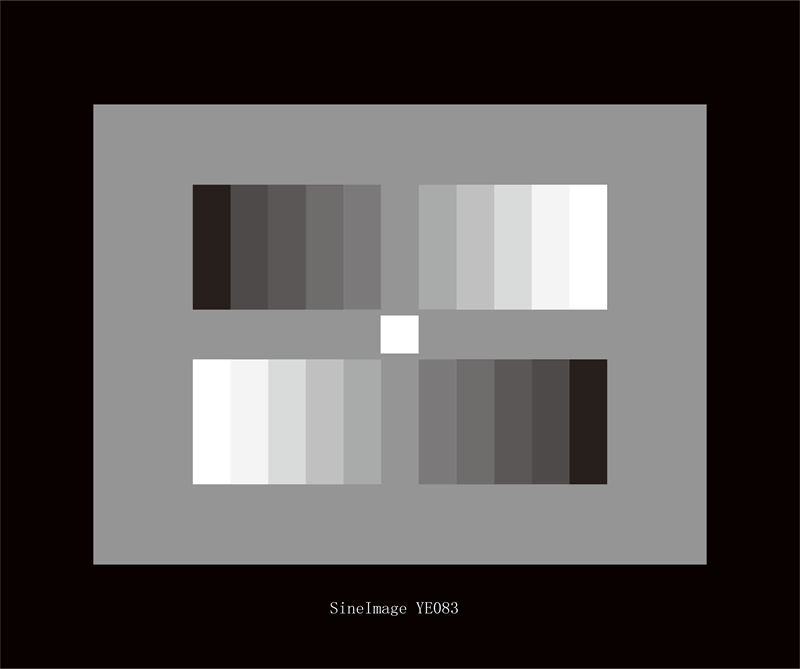

    The YE083 is designed for the evaluation of the halftone reproduction of an electronic camera. Two 11-graduated counter current gray scales are arranged on a gray background(D=0.62) . The gray scales being graduated logarithmically (gamma = 0.45).The output signal of an optimal gamma-corrected camera yields two 11-graduated counter current linear step signals. The contrast range of the gray scale is 40:1.


    Remark: We support Any customized test charts only if you have high resolution image and size.

    The values of the 11-graduated gray scale are as follows:

    Step
    Density
    Reflectance in %
    1
    0.05
    89
    2
    0.13
    74
    3
    0.22
    60
    4
    0.32
    48
    5
    0.43
    37
    6
    0.55
    28
    7
    0.69
    20
    8
    0.86
    14
    9
    1.06
    9
    10
    1.31
    5
    11
    1.65
    2

    The density of the white field between the gray scale is D=0.05 (reflectance = 89%).

    3nh YE083 ITE gray scale chart (Gamma = 0.45) with 11-graduated gray scale for electronic cameras
