3nh Camera Transmission Resolution Test Chart CC3100 Standard Color Viewer Light Box

    Buy cheap 3nh Camera Transmission Resolution Test Chart CC3100 Standard Color Viewer Light Box from wholesalers

    Buy cheap 3nh Camera Transmission Resolution Test Chart CC3100 Standard Color Viewer Light Box from wholesalers
    • Buy cheap 3nh Camera Transmission Resolution Test Chart CC3100 Standard Color Viewer Light Box from wholesalers
    • Buy cheap 3nh Camera Transmission Resolution Test Chart CC3100 Standard Color Viewer Light Box from wholesalers

    3nh Camera Transmission Resolution Test Chart CC3100 Standard Color Viewer Light Box

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : CC3100
    Certification : CE
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 50 Units per Month
    Delivery Time : 2-5 Days
    • Product Details
    • Company Profile

    3nh Camera Transmission Resolution Test Chart CC3100 Standard Color Viewer Light Box

    3nh CC3100 Standard Color Viewer Light Box with3100K Color Temperature for Camera Transmission Test Chart Use
    3nh Standard color viewer for camera test is to provide special lighting environment, with high illumination uniformity, light continuous adjustable, etc functions.
    CC3100 adopts DNP original light and it can get the same color temperature and illumination uniformity with DNP SDCV 3500 transmission light box, but we have 250 ~ 10000 Lux adjustable illuminance while SDCV 3500 only has 6000 ~ 10000 Lux. It can’t meet the requirement who needs to test image quality under 6000 lux.
    Transmission light box offers a special light source to check the quality of camera. It fits for many kinds of transmission test charts 4:3 use, such as transmission greyscale charts, transmissive high resolution test chart, transparency grid test chart, etc. Through image test software, the analysis result is more professional and easier.
    Application
    Transmission light box is widely used for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.

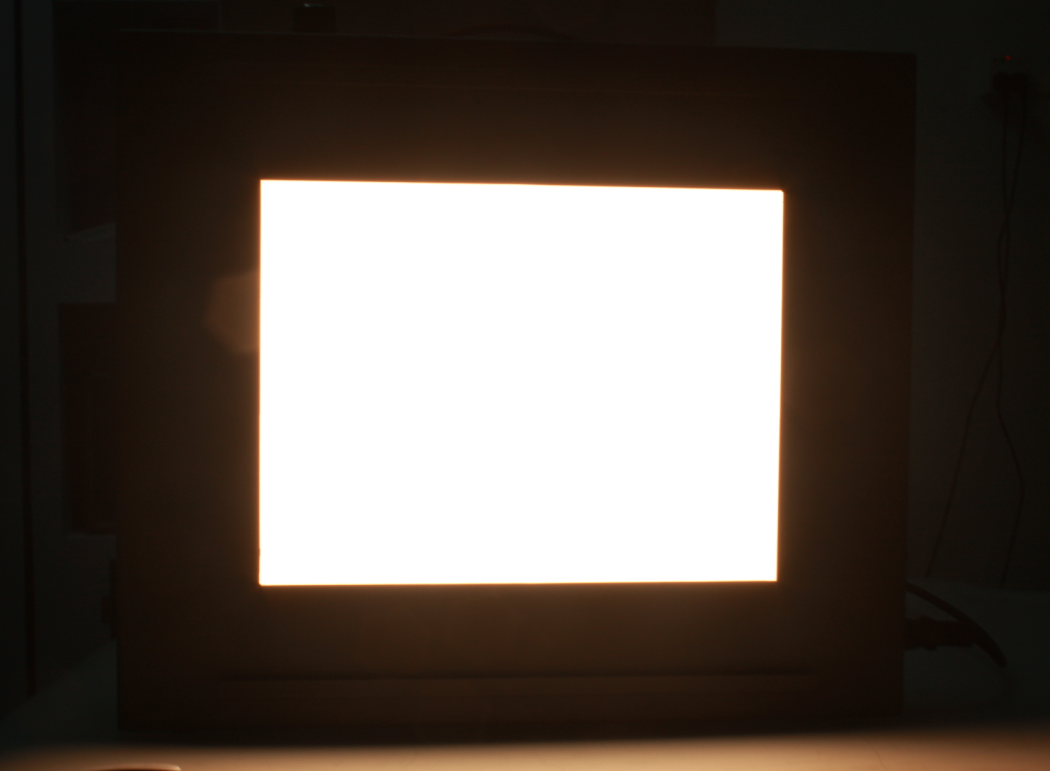

    Detailed Images

    3nh CC3100 Standard Color Viewer Light Box with3100K Color Temperature for Camera Transmission Test Chart Use


    ModelCC3100
    Light source:5100K(5100K±200k) *4,3100K(3100K±200k) *4
    Uniformity:>95%
    Luminous Source:100 ~ 4400cd/m2 adjustable
    Illuminance:250 ~ 10000Lux adjustable
    Power supply:AC230V 50/60HZ
    Lighting method:High Frequency lighting method 20KHz
    Operating temperature:10~40℃
    Operating humidity:Below 80%(avoid dew)
    Major diameter dimension:38.5W*34H*15Dcm
    Luminance plane dimension:25W*19Hcm

    3nh CC3100 Standard Color Viewer Light Box with3100K Color Temperature for Camera Transmission Test Chart Use

    Frequently Asked Questions

    1. Which models are the equivalent models to HC5100?
    Answer: T259000 is equivalent to EQP-ITLB LED Transmissive Light Box.
    2. Are you a trader or a manufacturer?
    Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
    3. What's your main market.
    Answer: We sell to the global market.

    4. How long is your delivery time?
    Answer: Generally it is 1-3 working days after the payment confirmed.

    5. What is your payment terms?
    Answer: The payment term is 100% T/T in advance.

    6. What's your minimum order quantity (MOQ)?
    Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

    7. Do you supply the corresponding transmissive camera test charts?

    Answer: Yes, of course we supply the transmissive camera test charts. We are also now the best manufacturer of camera test charts in China.
