CC120-W Printing Industry Used Color Assessment Cabinet Color Light
Box
Details:
Standard light source colorviewer table is widely used in the
printing industry to accurately measure
color difference of printing products. Because different light
sources have differentradiant energy, the
object will show different colors when illuminated by different
light sources.
In the color management of printing production, although the
quality inspector has carefully checked
color difference of the goods, the results are not accurate because
the environmental light source is not
standard or inconsistent with the light source used by the
customers, the colors will show different light.
Some customers will complain or even return the goods because the
color difference exceeds the standard
range, which seriously affects the goodwill of the company.
To effectively solve the above problem, the most useful way is to
test the color of goods under the same light
source and controllable conditions. For example, artificial
daylight D65 is often used as the standard light source
to evaluate the color of goods in the international standard.
Printing colorviewer table at the same time provides D65, D50,
TL84, CWF and other light source options, also with
the function of detecting metamerism.
About the Operation:
1. Plug the power cable into the power socket at the top of
colorviewer table. The other end of cable is
connected the mains power supply (note that the mains supply must match the input
power indicated
by the colorviewer table).

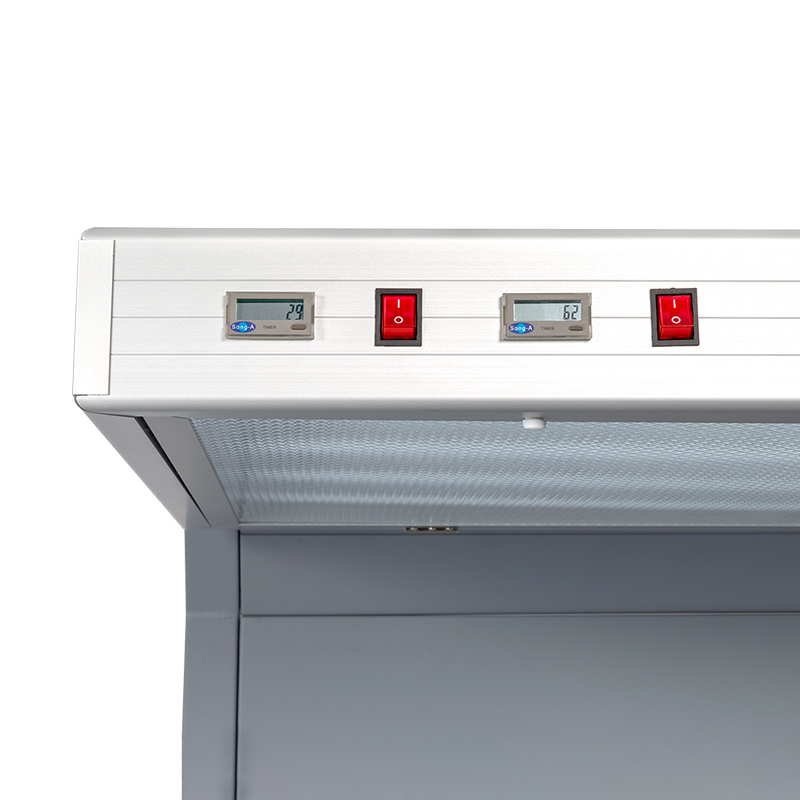

2. Select a light source to power on , and the timer of the
colorviewer table will start timing. To switch the
light source, first turn off the previous light source, then press the next light
source power switch. To turn
on two or more light sources at the same time, just press two or more light source
switches at the same time.
3. Put the samples in the middle of the table. When testing the
colors of two or more samples, place them side
by side on the middle of colorviewer table. When testing, do not put
irrelevant sundries on the table to avoid
affecting the color change.
4. After testing, turn off all the light source switches. Turn off
the power during off hours, and unplug the power
plug when not in use for a long time.
5. Replace the new light lamp. There are two white cap screws in
front of the transparent glass of the light box.
First unscrew these two screws, and then remove the translucent glass
very gently. Remove the lamp tube
that needs to be replaced and install the new one. Be careful not to make a
mistake about lamp position
when replacing.
Attentions:
1. The use of standard light source: after lighting the lamp for 30
minutes, color temperature, color index and
illumination will reach the best state; If not necessary, frequent power on/off
and switching lights should
be avoided to perpetual lamp life.
2. Service life of light source lamp: after 2000-3000 hours of use,
the color temperature, color rendering index
and illuminance of standard light source lamp will decline. It is recommended to
replace it in time to avoid
affecting the color matching effect.
3. Cleaning and maintenance: before cleaning and maintenance,
please unplug the power plug, cut off the
power, use regular detergent to wipe the equipment, and then dry it with a clean, soft
cloth, never wash
it directly with water.
Notices:
1. Before use, it is necessary to check whether all voltages are
consistent with the marks on the voltage label
of the machine.
2. Check whether the power cable and plug are damaged before use.
3. Do not twist or pull the power cable to avoid poor contact.
4. Turn off the power before unplugging. Do not unplug the power
plug with
wet hands to avoid electric shock.
| Turn on the switch. The light isn't bright. | - Whether the power cord is properly inserted into the socket;
- Thelamp holder may be loose and need to be tighten;
Replace the lamp tube if it is damaged or burnt out.
|
| The panel is dim | Wipe with a clean, soft cloth |
| Light source timer does not count | Press reset and restart |
About Warranty:
1. The light source products sold by our company shall be
guaranteed for one year from the
date when the products reach the customer company. If there is any
product quality problem
within one year,we will repair or replace it.
2. All the products have standard packaging. If any damage is found
in the packaging or the products,
please contact us as soon as possible after receiving the goods. We
will contact you so that we can
deal with it for you.
3. Please replace the professional standard light source lamp after
the lamp is damaged. Our company
has been supplying all kinds of original light source lamps all the
time.
4. Please contact our technical engineer directly if you have any
questions about installation or use.
Artificial daylight source for printing
1. D50 standard light source lamp simulates Daylight
High color rendering index CRI≥95 or CRI=98
Comply with ISO 3664:2009 printing standard observation conditions
Standard light source for colorviewer table and color light box,
T60+ P60+ CC120 series
| 60cm | 18W/950 | T8 | Graphica Pro | Original import from Europe |
| 120cm | 36W/950 | T8 | Graphica Pro | Original import from Europe |
| 150cm | 58W/950 | T8 | Graphica Pro | Original import from Europe |
2. D65 standard light source lamp simulates Daylight
High color rendering index CRI≥95 or CRI=98
Comply with ISO 3664:2009 printing standard observation conditions
Standard light source for colorviewer table and color light box,
T60+ P60+ CC120 series
| 60cm | 18W/965 | T8 | Graphica Pro | Original import from Europe |
| 120cm | 36W/965 | T8 | Graphica Pro | Original import from Europe |
| 150cm | 58W/965 | T8 | Graphica Pro | Original import from Europe |
Other common light sources
| CWF Light lamp | (4150K,Cold white fluorescent, American store light source) |
| TL84 Light | (4000K,Applied to stores in Europe, Japan and China) |
| U30 Light lamp | (3000K,American store lighting source) |
| U35 Light lamp | (3500K,Applied to American store Target) |
| UV Light lamp | (UV light source for detection of products using fluorescent and
whitening dyes) |
| A Light bulb | (2856K,American window shot light/household incandescent light,
yellow reference light) |
Specificatons:
| Boundary dimension | 130 cm x 76 cm x 10 cm (length) x (width) x (height) |
| Material | Real aluminium alloy material |
| frame materials | Aluminum alloy profile streamlined design beautiful and elegant
imported reflector Uniform light coverplate and illumination |
| Uniform light coverplate | Openable uniform light coverplate for easy lamp replacement |
| Hanging material | Hooks at the back and a load-bearing steel chain that can be hung
directly to the ceiling or fixed to the rack |
| Light Source | Conforms to ISO3664 international standard |
| Color temperature | D50 (5000K) or D65 (6500K) |
| Lamp series | Graphica for the exclusive use of imported printing machine |
| Color rendering index | D50: CRI ≧ 95 or CRI = 98 D65: CRI ≧ 90 or CRI = 95 |
| Number of lamps | 36Wx4 (pcs) - with light source timer |
