Standard light against color light box P60+(6)(Six light source upgrade)
advantages:
1. Display the service time and total time of each light source.
2. Automatic switching of light source, with functions of same
color and different spectrum.
3, no preheating, no flash, can ensure fast and reliable evaluation
of color.
4, small energy consumption, no heat (no heat dissipation), high
luminous efficiency.
5. It is equipped with more complete common light sources of
British and American standards.
6. The name of light source can be changed to make it more
convenient to add light source.
Application
Applicable industry: widely used in textile, toys, printing and
dyeing, plastic, paint, ink, printing, pigment, chemical, ceramics,
shoes, leather, hardware, food, cosmetics and other multi-industry
color management collar.

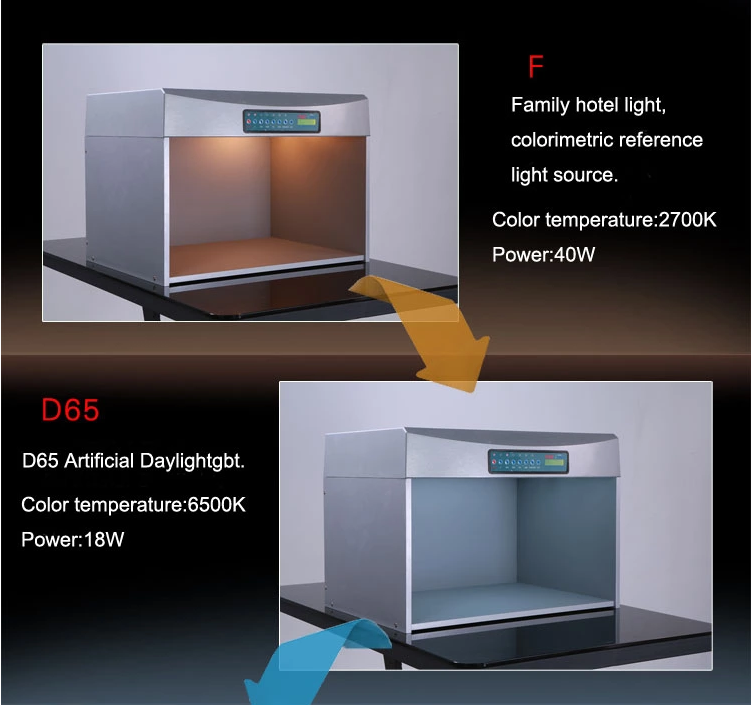

Actual shooting of light source effect:F,D65,TL84,UV,CWF,TL83/U30.
| Family hotel light, colorimetric reference light source. | Color temperature: 2700K Power:40W |
| D65 Artificial Daylightgbt. | Color temperature: 6500K Power:18W |
| TL84 China, Europe, Japan store light source. | Color temperature: 4000K Power:18W |
| Uv Ultra-Violet. | Wave length: 365nm Power:20W |
| Cool White Fluorescent. | Color temperature: 4150K Power:18W |
| U30 Warm White Fluorescent. | Color temperature:3000K Power:40W |
| Different light sources have different radiant energies, and when
they shine on objects, they will show different colors. |
| Standard light source is widely used in all walks of life in the
field of color management, for accurate proof of goods color
deviation. |
| P60+(Six light source upgrade) |
| Configuration: | F,D65,TL84,UV,CWF,U30 Six kinds of light source. |
| weight: | 35Kg |
| Volume (width×depth×height): | 710×530×570mm |
| P60+(Six light source)technical parameters |
| Type | F | D65 | TL84 | UV | CWF | U30 | Voltage |
| P60+(Six light source upgrade 220CV) | 4pcs | 2pcs | 2pcs | 1pcs | 2pcs | 2pcs | 220V/50HZ |
P60+(Six light source upgrade 115CV) | 4pcs | 2pcs | 2pcs | 1pcs | 2pcs | 2pcs | 115V/60HZ |
OI (operating instructions)
1.Connect the random power cord to the light box, connect the other
end of the plug to the power supply socket, and connect the power
(220V50HZ).
2.First press the red button ON the left (master switch), then
lightly press the ON/OFF button ON the panel of the color light
box. The LCD LCD module (with backlight illumination) will display
the power ON, and display the name of each light source and the
cumulative use time.
3.Press F, D65, TL84, UV, CWF key can switch automatically, also
can open a variety of light sources at the same time (press at the
same time).In the case of a single light source, the display time
is the name and use time of the corresponding light source; in the
case of multi-light source startup, the name and use time of the
started light source will be displayed in flow.The CLR key on the
keypad is used for reset and zeroing, effective when a single light
source is activated.
4.The tested product is placed in the middle of the bottom plate of
the light box.Observe Angle with 90 degrees light source, 45
degrees line of sight is advisable.The proper Angle can be adjusted
according to the switch of the item under test to achieve excellent
detection effect.
5.Turn OFF the power ON/OFF button. The power should be turned off
if it is not used for a long time.
6.When changing new lamp tube, all sorts of illuminant (tube) have
corresponding position to install, cannot the position of lamp tube
is reversed.After the replacement of the old lamp tube, the
original service time shall be reset to start the timing again.
Reset method: open the replaced lamp tube, insert the screwdriver
into the circular hole in the CLR center, and press the key (the
service time of other light tubes will not be reset).
Note: do not use the CLR key at will, in case the timing system
time is reset by mistake.
7.The light box is equipped with a variety of standard light
sources, all installed in the fixed position of the light box, the
position can not be reversed.
8.The external power supply of the equipment must have a grounding
device to ensure the safe use.
