Standard Color Viewer LED Transmission Light Box HC5100 with 5100k
LED lamps for D240 Transparent Charts
3nh standard camera color viewer transmission light box is to
provide special lighting environment and high illumination
uniformity, light continuous adjustable, etc functions. They are
suitable for 4:3 transmission test chart.
HC5100/HC3100 adopts 3nh independent research and development LED
light, and it has higher illumination uniformity and better CRI
(color rendering index), while CC5100/CC3100 adopts DNP original
light and it can get the same color temperature and illumination
uniformity with DNP SDCV 3500 transmission light box, but we have
250 ~ 10000 Lux adjustable illuminance while SDCV 3500 only has
6000 ~ 10000 Lux. It can’t meet the requirement who needs to test
image quality under 6000 lux.

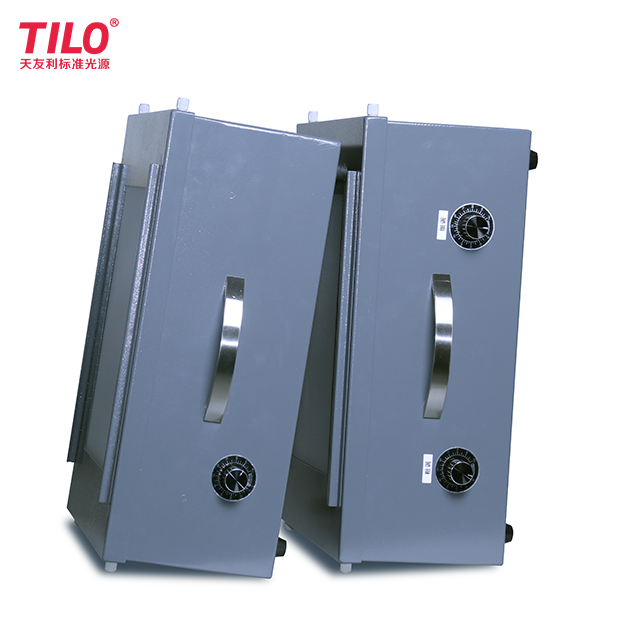

Transmission light box offers a special light source to check the
quality of camera. With two adjusting knobs, we can adjust the
illuminance from 0 lux to 11000 lux. It fits for many kinds of
transmission test charts 4:3 use, such as transmission greyscale
charts, transmissive high resolution test chart, transparency grid
test chart, etc. Through image test software, the analysis result
is more professional and easier.
Application
Transmission light box is widely used for digital camera, phone
camera, video camera, Security cameras, car camera, etc lens camera
test quality control.
Performance Highlights
l Illumination uniformity >92%,Extensive color rendering index
CRI>90
l LED dimmable dynamic range 0-11000lx, Flicker Free with 2 dimmer
knobs
l Standard Color HC5100/HC3100±100K,Duv ±0.002
l Excellent color/flux stability over 25000 hours lifespan
l 60%+ higher efficiency than fluorescent light tube, Hg Free
General information
l Power supply:AC100-240V,50/60HZ,50W
l Environment required,Temperature10-40℃,<RH80%
l Size:37W*32.5H*16.5Dcm
l Projection area:25W*19Hcm
l Net weight ~6kg
Warning
l Do not connect with power grid other than AC100-240V before
turning on the light
l Suggest waiting for 10 minutes to get stable color after turning
on the light
l Be careful to prevent scratching diffusingreflection plate and
clean by non-dust wiper with alcohol
| Parameters | HC5100 |
| Color Temperature | 5100K |
| Illuminance | 0 - 11000LUX adjustable |
| Lifespan | More than 25000 hours |
| Light Device | LED Lamp Array |
| Light Panel Size | 25*19cm |
| Color Rendition Index | ＞90% |
| Illuminance Evenness | ＞92% |
| Size | 37W*32.5H*16.5Dcm |
| Power Supply | AC100-240V, 50/60Hz |
| Apply Industry | Camera Imaging Performance Tests |
Frequently Asked Questions
1. Which models are the equivalent models to HC5100?
Answer: T259000 is equivalent to EQP-ITLB LED Transmissive Light
Box.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design
and produce, market and sell color measuring instruments and gloss
meters. Our company and factory are located in Shenzhen which is
famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment
confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can
provide discount.
7. Do you supply the corresponding transmissive camera test charts?
Answer: Yes, of course we supply the transmissive camera test
charts. We are also now the best manufacturer of camera test charts
in China.
