High Illumination Resolution Test Chart Adjustable Color Temperature Transmission 3nh T259000

    Buy cheap High Illumination Resolution Test Chart Adjustable Color Temperature Transmission 3nh T259000 from wholesalers

    Buy cheap High Illumination Resolution Test Chart Adjustable Color Temperature Transmission 3nh T259000 from wholesalers
    • Buy cheap High Illumination Resolution Test Chart Adjustable Color Temperature Transmission 3nh T259000 from wholesalers
    • Buy cheap High Illumination Resolution Test Chart Adjustable Color Temperature Transmission 3nh T259000 from wholesalers

    High Illumination Resolution Test Chart Adjustable Color Temperature Transmission 3nh T259000

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : T259000
    Certification : CE
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 50 Units per Month
    Delivery Time : 2-5 Days
    • Product Details
    • Company Profile

    High Illumination Resolution Test Chart Adjustable Color Temperature Transmission 3nh T259000

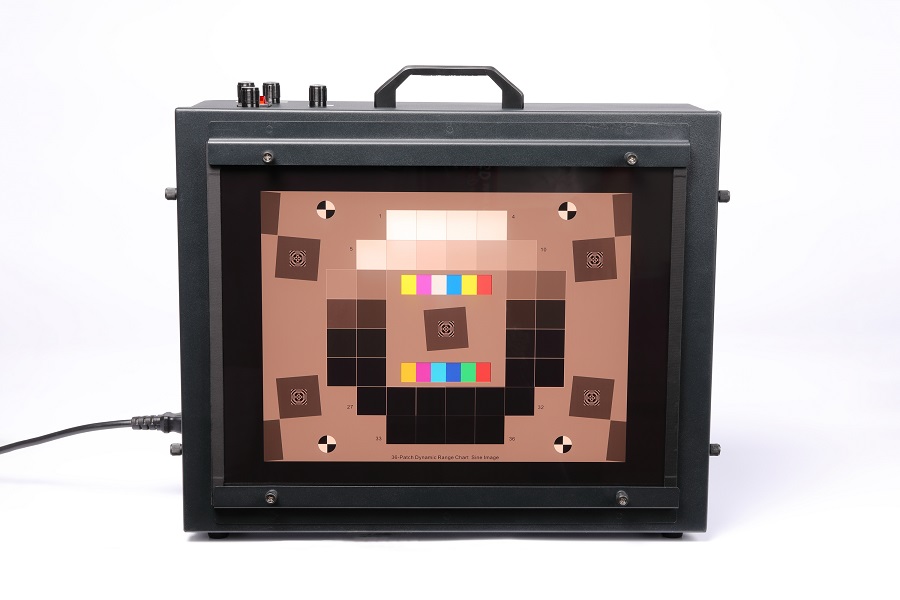

    3nh T259000 high illumination/adjustable color temperature transmission light box


    Product Overviews

    3nh T259000 high illumination/adjustable color temperature transmission light box adopts development LED light and high illumination & adjustable color temperature to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.


    Product Description
    3nh T259000 high illumination/adjustable color temperature transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions.
    T259000 adopts 3nh independent research and development LED light, and it has high illumination and adjustable color temperature for many camera industries use. Transmission light box offers a special light source to check the quality of camera.
    Application
    Transmission light box is widely used for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.

    Performance Highlights

    l Illumination uniformity >90%

    l Color temperature range: 2300k-9000k

    l LED illumination adjutable range 0-120000lux ( Illumination adjustable button includes high and low illumination. Among low illumination, there are two dimming knobs of coarse and thin to make dimming more accurate.)

    l Stable light , no flicker, over 10000 hours lifespan


    General information

    l Power supply:AC110-240V, 2.2A, 50/60HZ. The maximum power consumption is 240W

    l Environment required,Temperature 0-28℃,<RH85%

    l Size:410L*145W*330Hmm

    l Projection area:290L*220Hcm

    l Test Chart Slot Size:360L*8W*285Hmm

    l Net weight: 7.2kg


    Detailed Images


    Warranty
    3nh T259000 high illumination/adjustable color temperature transmission light box has one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.

    About US
    Shenzhen 3nh Technology Co., Ltd. is a high-tech company who specializes in researching and developping, designing and manufacturing testing and measuring instruments and equipment. We have owned a 19 years accumulation of technology and experience in color and gloss management field, since founded in 1998.

    Our Certificates: ISO9001:2015-2017; CE; FCC; ROHS; TUV; SCM;

    Shenzhen 3nh Technology Co., Ltd.is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, 3nh launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
    company detail_MG_3639

    ParametersT259000
    Color Temperature2300K ~ 9000K adjustable
    Illuminance0 - 120000LUX adjustable
    LifespanMore than 10000 hours
    Light DeviceLED Lamp Array
    Light Panel Size29*22cm
    Color Rendition Index>95%
    Illuminance Evenness>90%
    Size41*33*14.5cm
    Power SupplyAC100-240V, 50/60Hz
    Apply IndustryCamera Imaging Performance Tests


    Frequently Asked Questions

    1. Which models are the equivalent models to HC5100?
    Answer: T259000 is equivalent to EQP-ITLB LED Transmissive Light Box.
    2. Are you a trader or a manufacturer?
    Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
    3. What's your main market.
    Answer: We sell to the global market.

    4. How long is your delivery time?
    Answer: Generally it is 1-3 working days after the payment confirmed.

    5. What is your payment terms?
    Answer: The payment term is 100% T/T in advance.

    6. What's your minimum order quantity (MOQ)?
    Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

    7. Do you supply the corresponding transmissive camera test charts?

    Answer: Yes, of course we supply the transmissive camera test charts. We are also now the best manufacturer of camera test charts in China.
