    Camera Resolution Test Chart 0.5x 1x 4x 8x NE-10-400A ISO12233 4000 Lines Enhanced

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NE-10-400A
    Certification : CE
    Price : Please send inquiry
    Payment Terms : T/T
    Supply Ability : 500 Units per Month
    Delivery Time : 2-5 Days
    • Product Details
    • Company Profile

    Camera Resolution Test Chart 0.5x 1x 4x 8x NE-10-400A ISO12233 4000 Lines Enhanced

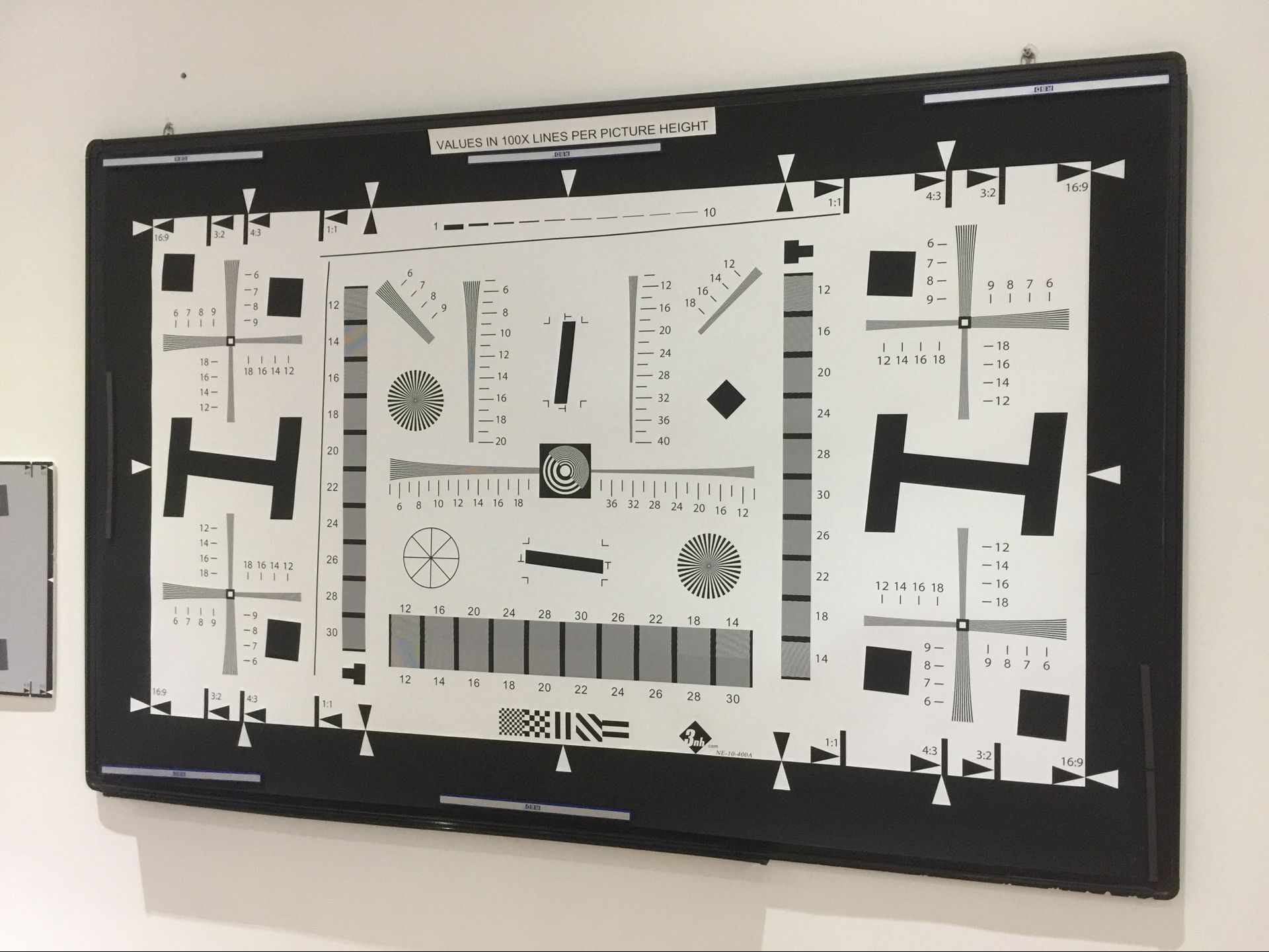

    ISO12233 4000 lines Enhanced Camera Resolution Test Chart (0.5x, 1x, 4x, 8x) NE-10-400A


    Enhanced ISO 12233 Resolution Test Chart (0.5x, 1x, 4x, 8x) 4000 lines

    3nh provides one-stop service on enhanced ISO 12233 resolution test chart (0.5x, 1x, 2x, 4x, 8x), test light source and test software.

    Brand: 3nh


    Specifications

    ParametersISO12233 Enchanced Camera Resolution Test Chart
    SizeSize customisable
    Format16:9 / 4:3
    TypeReflective/Transmissive
    MaterialPhotographic Paper(Reflective), Film(Transmissive)

    Common Standard Size

    ModelMultipleSize(cm)
    NE-10-50A0.5X10×17.8cm
    NE-10-100A1X20×36.6cm
    NE-10-200A2X40×71.2cm
    NE-10-400A4X80×142.4cm
    NE-10-800A8X160×284.8cm

    3nh provides one-stop service on enhanced ISO 12233 standard resolution test chart (0.5x, 1x, 2x, 4x, 8x), test light source and test software.


    This iso test chart is for SFR,MTF,TV line evaluation.


    Resolution test chart is the standard proof which can provide aided testing for vertical resolution and horizontal resolution of actual shooting.


    We also make Standard ISO 12233 Resolution Test Chart (0.5x, 1x, 4x, 8x) 2000 lines.


    Specification Active Area Material

    1 X - 20 cm x 35.6 cm Photographic Paper

    2 X - 40 cm x 71.1 cm Photographic Paper

    4 X - 80 cm x 142.2 cm Photographic Paper

    8 X - 160 cm x 284.4 cm Photographic Paper

    0.5X - 10cm x 17.8 cm Photographic Paper


    ModelSize
    NE-10-100A20 cm x 35.6 cm
    NE-10-200A40 cm x 71.1 cm
    NE-10-400A80 cm x 142.2 cm
    NE-10-800A160 cm x 284.4 cm
    NE-10-50A10cm x 17.8 cm

    ISO12233 4000 lines Enhanced Camera Resolution Test Chart (0.5x, 1x, 4x, 8x) NE-10-400A


    Application


    Resolution test chart is the standard proof which can provide aided testing for vertical resolution and horizontal resolution of actual shooting.

    Resolution test uses ISO 12233 resolution test chart and adopts unified shooting angle and environment.

    The calculation of resolution test uses HYRes software, and the calculation will be done in two parts: vertical resolution and horizontal resolution.


    Digital camera assessment is different from other products. It’s unlike laptop and DIY which have a lot of software to test objective data and everything can be seen from the data. However, assessing the quality of digital camera not only needs certain objective data, but also needs to combine actual operation and the shooting proofs. Therefore, our assessment is based on the principle of objective data and combined rational analysis from the experienced reviewers to obtain the most objective assessment results.


    ISO 12233 resolution test chart is in accordance with ISO 12233 standard “Photography- Electronic Photographic Image-Measurement”. In active area of 1x size, the error is only 0.1mm when measuring the height of 20cm. It has almost all the characteristics of most resolution charts.
