    T120-4 Photography Fill Light Box Optional Four Light Sources D65 A TL84 CWF

    T120-4 Photography fill light box with Optional Four Light Sources D65, A, TL84, CWF


    T120-4 Photography fill light box is the latest upgraded products of Shenzhen ThreeNH(3NH) Technology Co., Ltd, which provides professional lighting environment for camera lens evaluation system.


    T120-4 is easy to operate and convenient to switch different kinds of light sources. It is also flexible to adjust the brightness of light sources without flickering. It also can display the using times and time of each light source. High-efficiency reflector is installed on the inner wall of the light box, while high transmittance diffuser with high light utilization and high light uniformity is installed outside.

    Dimensions

    l Light box dimensions (excluding bracket, see Figure 1): 1302mm * 803mm * 100mm

    l Light box bracket height 1.7m (see Figure 1, can be customized).

    l Luminous surface size (see Figure 1): 1187mm * 688mm

    l Internal light can be customized according to user needs.

    l Control box dimensions (see Figure 2): 370mm * 210.5mm * 227mm

    l Environment: temperature 0-40 ℃, relative humidity 80% or less (non-condensing).

    l Input Power: AC220V, 50 / 60Hz, maximum power consumption 800W.

    l Net weight (double light box + bracket + control box): 55Kg.

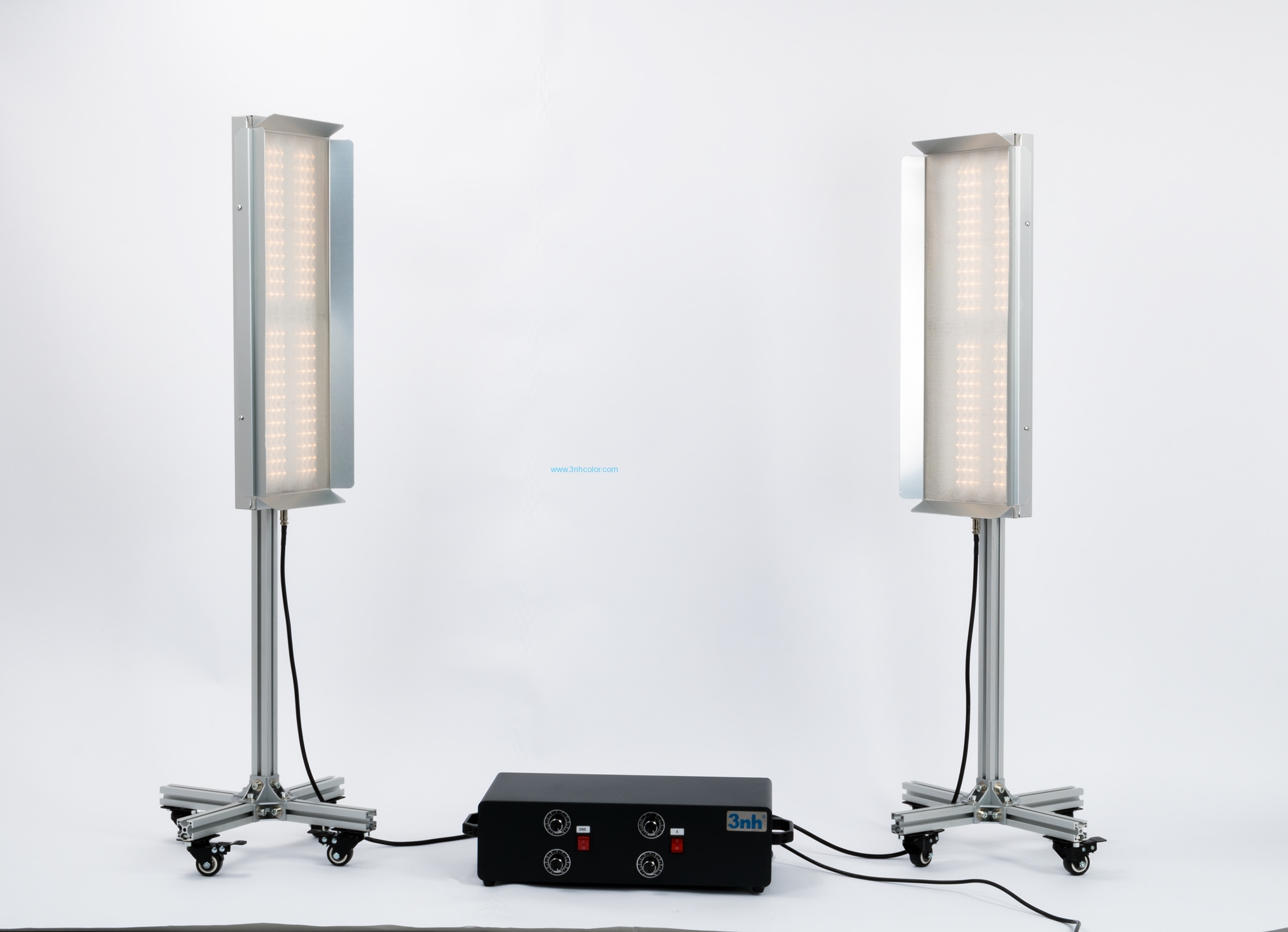

    T120-4 Photography fill light box

    T120-4 Photography fill light box

    T120-4 Photography fill light box

    T120-4 Photography fill light box


    Light Source:

    Light SourceColor viewing booths applicationColor temperature(k)Power(W)
    D65International standard Artificial Daylight650018
    TL84Applied to stores in Europe, Japan and China400018
    AShooting Light of American Window, Colorimetric reference light source285675
    CWF(Cool White Fluorescent)American Standard415018
