    Ergonomic Design Sheen Gloss Meter TFT Touch Screen With High Accuracy


    ISO 2813 Standard Three-angle gloss meter 2000GU Glossmeter NHG268 Intelligent Gloss Meter with large touchscreen


    Brief Introduction

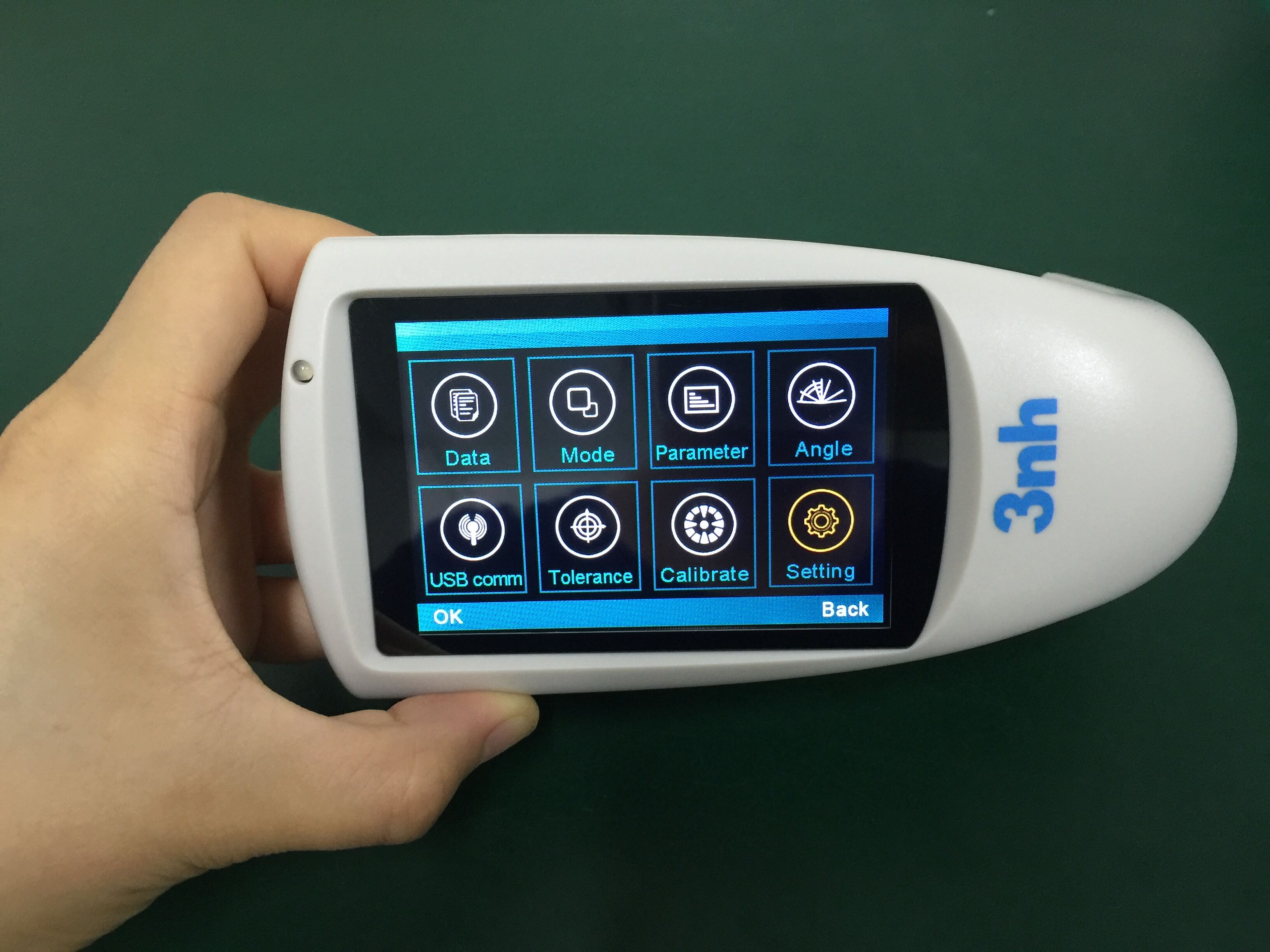

    NHG268 three angles smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.

    Now NHG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.

    Features

    1. Three-angle gloss meter, measuring angle 20 ° / 60 ° / 85 °
    2. 3.5 "TFT touch screen, 5,000 memory positions comes with PC software raportage
    3. 20 ° 0-2000GU; 60 ° 0-1000GU; 85 ° 0-160GU
    4. Highly accurate ± ± 0.1GU 0.2GU, ± 0.2% GU
    5. ergonomic design


    Technical Specification

    ParametersTri-angle Gloss Meter NHG268
    Measuring Angle

    20° & 60° & 85°
    Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

    Measuring Area20°: 10x10mm 60°: 9x15mm 85°: 5x36mm
    Measuring Range20°:0~2000GU 60°:0~1000GU 85°:0~160GU
    Division Value0.1GU
    Measurement Range Repeatability
    Reproducibility
    0-10GU 10-100GU 100-2000GU
    ± 0.1GU ± 0.2GU ± 0.2%GU
    ± 0.2GU ± 0.5GU ± 0.5%GU
    Measurement StandardConform to the Working Requirements for JJG696 First Class Glossmeter
    Chromaticity ResponseCorresponding with CIE 1931(2°) under CIE C Light Source
    Tolerance±1.2, ±1.2%
    Measuring Time0.1s
    Display SizeTFT 3.5"
    Screen-touchYes, Capacitive Touch Screen
    Data PortUSB
    LanguageChinese, English
    Battery3200mAh Li-ion Battery , more than 10000 times (within 8 hours)
    Dimension160*75*90mm
    Weight350g
    Measuring Mode&Storage

    Basic Mode: 1000
    Statistical Mode: 5000
    Continuous Mode: 5000

    PC SoftwareGQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions
    Operation Temperature0~40℃ (32~104℉)
    Storage Temperature-20~50℃ (-4~122℉)
    Humidity<85% Relative Humidity, No Condensation


    Standard Accessories

    Standard Accessories
    1Power Adapter
    2USB Cable
    3User Manual
    4CD (Including QC Software)
    5Calibration Plate


    Frequently Asked Questions

    1. Which models are the equivalent models to NHG268 Gloss Meter?
    Answer: BYK4446 is the equivalent model to 3nh NHG268.
    2. Are you a trader or a manufacturer?
    Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
    3. What's your main market.
    Answer: We sell to the global market.
    4. How long is your delivery time?
    Answer: Generally it is 1-3 working days after the payment confirmed.
    5. What is your payment terms?
    Answer: The payment term is 100% T/T in advance.
    6. What's your minimum order quantity (MOQ)?
    Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.


    NHG268 gloss meter
