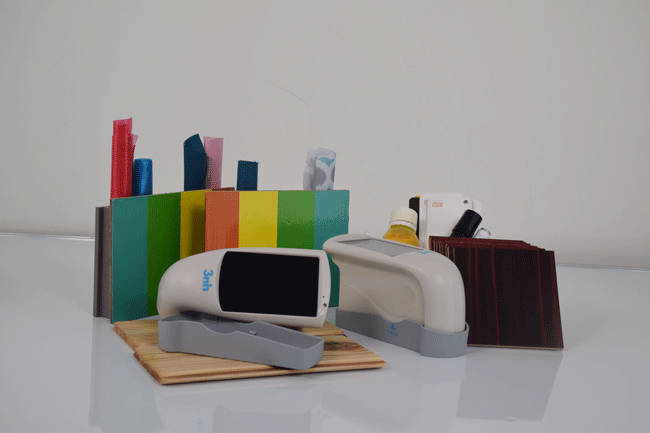

HG268 Concise Paint Gloss Meter , 3nh Gloss Meter For Automobile Industry

    Buy cheap HG268 Concise Paint Gloss Meter , 3nh Gloss Meter For Automobile Industry from wholesalers

    Buy cheap HG268 Concise Paint Gloss Meter , 3nh Gloss Meter For Automobile Industry from wholesalers
    • Buy cheap HG268 Concise Paint Gloss Meter , 3nh Gloss Meter For Automobile Industry from wholesalers
    • Buy cheap HG268 Concise Paint Gloss Meter , 3nh Gloss Meter For Automobile Industry from wholesalers

    HG268 Concise Paint Gloss Meter , 3nh Gloss Meter For Automobile Industry

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : HG268
    Certification : CE,RoHs,ISO,ASTM etc.
    Payment Terms : T/T,Paypal
    Supply Ability : 1000pcs/month
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

    HG268 Concise Paint Gloss Meter , 3nh Gloss Meter For Automobile Industry

    HG268 Cheap Tri-angle Glossmeter with GQCS6 Quality Control Software


    Brief Introduction:


    HG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.


    HG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.


    Features:


    • 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
    • Concise appearance, feel good
    • Display 5 sets of measurement data, good for comparison
    • Built-in lithium ion rechargeable battery
    • Basic model measurement can meet basic glossiness testing requirements
    • Connect to PC, more extend functions
    • One button for all angles measurement at the same location
    • Comply with international standards
    • Stable performance, easy to read data.

    GQC6 Software Introduction:


    GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.


    Specifications:


    HG268 Tri-angle Gloss Meter
    Model:HG268
    Measuring Angle20°/60°/85°
    Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
    Measuring Area (mm)20°: 10x10 60°: 9x15 85°: 5x36
    Measuring Range20°:0~1000GU 60°:0~1000GU 85°:0~160GU
    Division Value0.1GU
    Measurement Range Repeatability Reproducibility0-10GU 10-100GU 100-1000GU
    ± 0.1GU ± 0.2GU ± 0.2%GU
    ± 0.2GU ± 0.5GU ± 0.5%GU
    Measurement StandardConform with JJG696 first class glossmeter working requirement
    Chromaticity CorrespondingCorresponding with CIE 1931(2°) under CIE C light source
    Errors±1.5 , ± 1.5%
    Measuring Time0.1s
    DimensionL*W*H : 160mm*75mm*90mm
    Weight350g
    LanguageChinese/English
    Battery3200mAh Li-ion Battery, >10000 times(within 8 hours)
    DisplayTFT 3.5 inch
    InterfaceUSB/RS-232
    StorageBasic mode: 1000
    SoftwareGQC6 Quality Control Software with QC report printing functions and more extended functions.
    Operation Temperature0~40℃(32~104°F)
    Storage Temperature-20~50℃(-4~122°F)
    Humidity<85% relative humidity, no condensation
    Standard AccessoriesPower Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
    Optional AccessoriesMiniature Printer
    NoteThe specifications are subject to change without notice.
