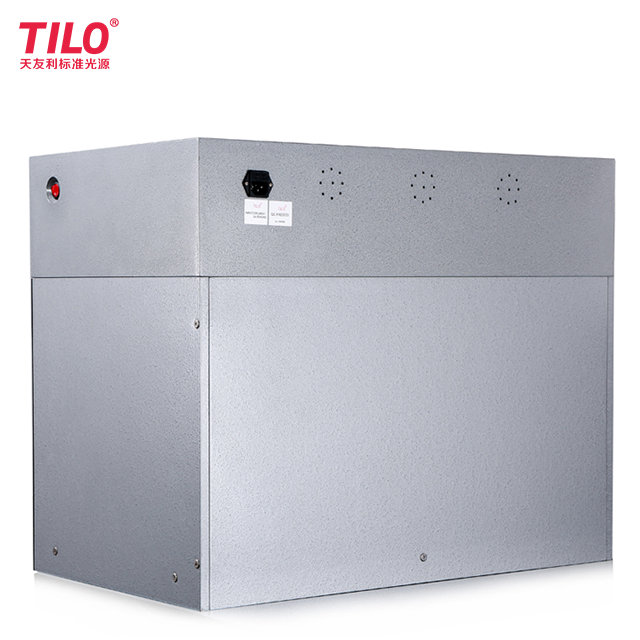

TILO colorcontroller color viewing light box p60(6) p60(6) color assessment cabinet with D65, TL84, F, UV,CWF,TL83 six
light sources
Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 28Kg
Dimensions(WxDxH): 710x530x570 mm
Colors appear differently under different lighting sources. To
avoid/reduce the assessment error when performing color contrast,
we can make use of a Light Booth / Viewing Booth / color viewing
box to simulate different light sources to obtain an objective
assessment of color and color difference, anytime, anywhere.
The Color matching booths / Colour assessment cabinet / color
viewing box can be applied to the industries that need to perform
color difference testing as follows: as the premiere designer and
manufacturer of color viewing and lighting products for the Graphic
arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather,
Inks, Knitwear, Plastic, Automotive and Ceramics industries.
TILO P60(6) color light box color assessment cabinet has 6 light
sources D65, TL84, UV, F, CWF, TL83 and it is used for the Graphic
arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather,
Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Tilo started from 1998, and it has 20 years experience in this
color light box industry.
Features:
1. TILO Color light booth render color more accurately. With 6
different light sources(D65, TL84, CWF, TL83, F, UV), which can
detect the metamerism.
2. Meets or exceeds major international standards for visual color
evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

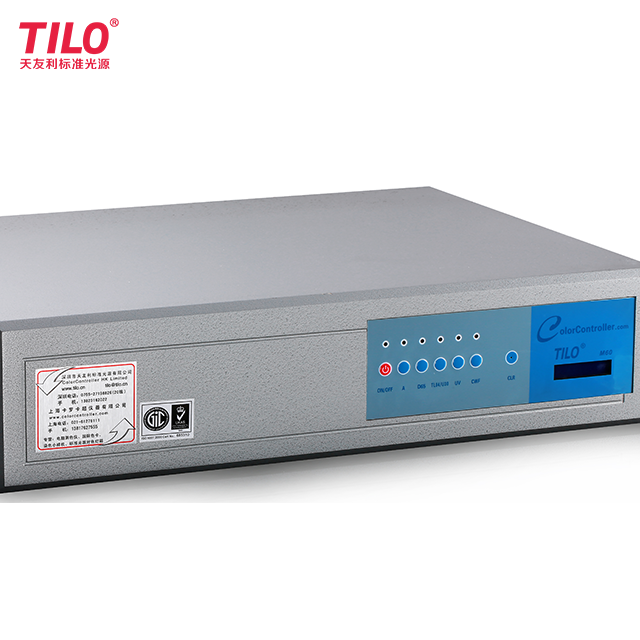

3. Easy to operate by using individual switches for each light
source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable
color judgment.
7. Economic power consumption and low heat generation for high
light efficiency.
8. The dimension can be made by customized.
Specifications:
| Order No. | Name | Model | D65 | TL84 | F | UV | CWF | TL83 | Voltage |
| 10113 | Standard light source booth | P60(6) six light source(220V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 220V/50Hz |
| 10813 | Standard light source booth | P60(6) six light source(115V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 115V/60Hz |
Optional accessories: light source diffuser 45 degree standard
stand.
Light Sources:
| Light Source | Color viewing booths application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| CWF | (Cool White Fluorescent) American Standard | 4150 | 18 |
| F/A | "Sun-setting Light Yellow" incandescent light source(imitation of
sunset) | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical
brighteners
or fluorescent pigments | Wave length:365nm | 20 |
| TL83 | Warm White Fluorescent American Standard | 3000 | 18 |
Packing List:
| No. | Name | Quantity |
| 1 | Light Booth Top Cover | 1 pcs |
| 2 | Light Booth Bottom | 1 pcs |
| 3 | Light Booth Back Cover | 1 pcs |
| 4 | Light Booth Side Cover | 2 pcs |
| 5 | Power Adapter | 1 pcs |
| 6 | Operating Manual | 1 pcs |
| 7 | Warranty Card | 1 pcs |
| 8 | D65 Light Tube | 2 pcs |
| 9 | TL84 Light Tube | 2 pcs |
| 10 | UV Light Tube | 1 pcs |
| 11 | F Light Tube | 4 pcs |
| 12 | CWF Light Tube | 2 pcs |
| 13 | TL83 Light Tube | 2 PCS |
Remarks: Optional tubes D50, D75, U30,TL83, U35, A. If you need, please let us know your detail requirement.
