    Professional Supplier YD5010 3nh Spectrophotometer Factory Color Spectrophotometer

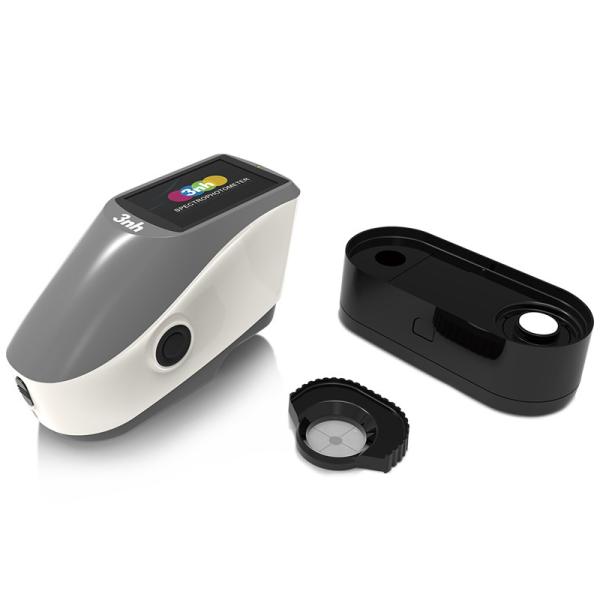

    Spectrodensitometer YD5010 plus


    3nh launched new model YD5010 Plus Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.


    Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1,M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.


    Product Features


    1.Perfect combination of the beautiful appearance and the ergonomic structure design;

    2.Combined LED light sources with long life and low power consumption, including UV light;

    3.Optional apertures: Φ2/4/8mm, adapt to more samples;

    4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

    5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.;

    6.Two standard observer angles: 2/10, multiple light source modes and color systems;

    7.USB mode is widely useful;

    8.Large-capacity storage space, over 10,000 test data;

    9.Especially suitable for process control and quality control of printing plants;

    10. PC software has powerful function expansion.

    ModelYD5010 Plus
    Measurement Geometry45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
    FeaturesCommon spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
    Light SourceCombined LED Light, UV Light
    Spectral separation deviceConcave Grating
    Detector256 Image Element Double Array CMOS Image Sensor
    Wavelength Range400~700nm
    Wavelength Pitch10nm
    Half Bandwidth10nm
    Measurement ConditionsCompliance with ISO 13655 measurement conditions;
    M0 (CIE Light Soure A)
    M1 (CIE Light Soure D50)
    M2 (Excluding UV light source)
    M3 (M2+Polarized light filter)
    Density StandardsISO Status A, E, I, T
    Density indexDensity value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
    Measurement apertureCustomized one aperture:Φ2mm,Φ4mm,Φ8mm optional
    Color SpacesCIE LAB,XYZ,Yxy,LCh
    Color Difference FormulaΔE*ab,ΔE*94,ΔE*00
    Other Colorimetric Index/
    Observer Angle2°/10°
    IlluminantsA,C,D50,D55,D65,D75,F2,F7,F11,F12
    Measurement TimeAbout 1.5s
    RepeatabilityDensity: Within 0.01 D
    Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
    Inter-instrument ErrorWithin ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
    Measurement modeSingle Measurement, Average Measurement(2-99)
    Size(L*W*H)184*77*105mm
    WeightAbout 600g
    Power sourceLi-ion battery. 5000 measurements within 8 hours
    Illuminant Life Span5 years, more than 3 million times measurements
    Display3.5-inch TFT color LCD, Capacitive Touch Screen
    InterfaceUSB,
    Data memory10000 pcs
    Language
    Simplified Chinese, English, Traditional Chinese
    Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
    Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation))
    Standard AccessoryPower Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
    Optional AccessoryMicro Printer
    Notes: The specifications are subject to change without notice.
