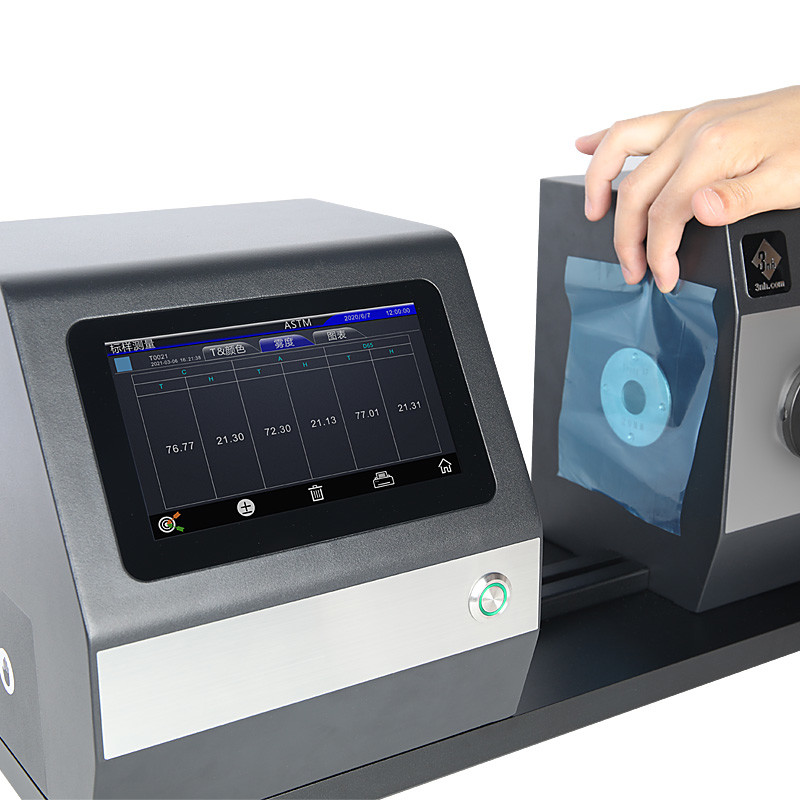

3nh YH1210 Horizontal Type Haze Meter
3nh YH1210 Haze Meter can easily realize ASTM D1003
non-compensation method, ISO 13468 compensation method, full light
transmittance, fog test. Open sample chamber can be vertical,
horizontal test, adapt to more samples under test. YH1210 haze
meter adopts PD array detector, which can meet the visual response
of CIE V(λ)2 degrees. The compensation method can realize the
high-precision and repeatable measurement of transmittance and fog
data.
Advantages of YH1210 Haze Meter
1. Double standard ISO & ASTM
It can meet the test standard requirements of different users; meet
the standards: ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF
1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K
7136
2. Easy operation and faster and more accurate measurement
The YH1210 Haze Meter is equipped with large size touch screen,
easy to operate, using PD array detector, to meet the CIE V(λ)2
degree visual response to achieve high precision and repeatable
transmittance and fog measurement. USB data output device, can be
connected with the laboratory system.
3. Dynamic measurement
Independent light source detector and temperature sensor to monitor
the light source and environmental changes at all times to ensure
reliable test data
4. Compensation port to make the measurement data more accurate
Meet the standard of ASTM D1003 non-compensation method, ISO 13468
compensation method, it can do full light transmittance, fog test,
and provide more accurate test results
5. Convenient measurement and wide sample adaptation
Open measurement area for vertical and horizontal testing to
accommodate more samples under test
6. Quality management software
It provides powerful software for measuring and analyzing fog,
color and light transmittance, which is suitable for quality
monitoring and tabulating management of fog, light transmittance
and color data in various industries. Data the management of users
on the PC computer, compare the fog, transmittance and color
differences, generate test report forms, facilitate customer
customization and management.
Application of YH1210 Haze Meter
YH1210 Haze Meter is widely used in glass processing, plastic
processing, film, display screen processing, packaging industry,
liquid analysis and other aspects.
| Product model | YH1210 Haze Meter |
| Illumination mode | Transmittance: 0/D (parallel illumination, diffuse receiving) in
accordance with standards: ASTM D1003/1044,ISO 13468,ISO 14782,GB/T
2410,JJF 1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS
K7361,JIS K 7136 |
| Characteristic | The instrument can easily realize ASTM D1003 uncompensated method,
ISO 13468 compensation method, Full transmittance, fog test. Open
measurement area for vertical and horizontal testing. It is widely
used in glass processing, plastic processing, film, display screen
processing, packaging industry, liquid analysis and other aspects. |
| Integrating sphere size | Φ 154 mm |
| Illumination source | 400 ~ 700 nm combined LED light source |
| Light splitting mode | / |
| Inductor | PD array detector, satisfying CIE V(λ)2 degree visual response |
| Measuring wavelength range | / |
| Wavelength interval | / |
| Half bandwidth | / |
| Determination range of transmittance | 0-100% |
| Measuring aperture | Φ20 mm/Φ15 mm/Φ8 mm/Φ4 mm (select single aperture) |
| Sample size | Thickness less than 105 mm |
| Color space | / |
| Chromatic formula | / |
| Other chromaticity indicators | Haze (ASTM D1003/1044, ISO 13468), Transmittance T (ISO),
Transmittance T (ASTM), |
| Observer angle | 2 ° |
| Observation light source | D65,A,C |
| Display | Pass/fail result |
| Measurement time | About 1.5s |
| Resolution of fog | 0.01 unit |
| Repeatability of nebulization | Φ20 mm aperture, less than 0.1 (after instrument preheating and
correction, test the standard nebulizer with the nebulization of
about 40 at an interval of 5s for 30 times of standard deviation) |
| Inter-stage difference | Φ20 mm aperture, less than 0.4 (after instrument preheating and
correction, test the standard deviation between the standard
nebulizer of nebulization and the reference value at an interval of
5s) |
| Dimensions | Length X Width X Height = 487X260X298mm |
| Weight | Approx. 8.0 kg |
| Power supply mode | 24V 3A , DCpower adapter |
| Illumination light source lifetime | > 3 million measurements in 5 years |
| Display screen | TFT True Color 7 inch, Capacitive Touchscreen |
| Interface | USB, Print Serial |
| Stored Data | 1,000 samples, 20,000 samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Temperature Range | 0 to 40 ° C (32 to 104 ° F) |
| Storage Temperature Range | - 20 – 50 ° C (-4 – 122 ° F) |
| Standard Annex | Power adapter, user manual, quality management software (download),
USB cable, 0% calibration box, measuring caliber |
| Optional Accessories | Micro printer, Test Fixture, Standard Fog Disk, Footswitch |
| Notes: | Subject to change without notice |
