CR9 3nh Colorimeter Car Paint Intelligent Spectrophotometer Optical Focus

Ask Lasest Price
Brand Name :	3nh
Model Number :	CR9
Certification :	CE, TUV, FCC, ISO9001, RohS
Price :	Discuss
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	1000 Units per Month
Delivery Time :	1-3 work days

Add to Cart

Product Details
Company Profile

CR9 3nh Colorimeter Car Paint Intelligent Spectrophotometer Optical Focus

Spectral colorimetro CR9 car paint colorimeter Intelligent spectrophotometer

CR9 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high cost performance. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food for color difference management.

The CR9 (Advanced) is a portable spectrophotometer developed by 3nh using its own core technology of spectroscopy. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.03. CR9's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices. The CR9 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth.It greatly expands the application space of the colorimeter, and makes the traditional colorimeter glow with a different application charm.

Specification

Model	CR9 (Advanced)
Optical geometry	D/8 (diffuse illumination, 8° direction reception)
	SCI/SCE measurement
	Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics	Dual measurement aperture, wider adaptability; used for accurate color measurement and quality control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size	Φ40mm
Light source	Combined full-spectrum LED light source, UV light source
Spectroscopic method	Planar grating
Sensor	Silicon photodiode arrays (dual row 32 groups)
Wavelength range	400~700nm
Wavelength interval	10nm
Semiband Bandwidth	10nm
Measurement range	L:0~120
Measurement range	Reflectivity: 0~200%
Measurement aperture	Dual apertures:Φ8mm,Φ4mm
Focusing method	Optical Focus
Specular component	SCI&SCE
Color space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
Color difference formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99
Other colorimetric indexs	WI(ASTM E313, CIE/ISO,AATCC,Hunter).
	YI(ASTM D1925, ASTM 313),
	Metamerism index Mt
	staining fastness,color fastness,strength, opacity,color card search
Observer angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed data	Spectrogram/data, chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy	0.01
Measurement time	Approx. 1.5s (Measure SCI & SCE about 3.2s)
Repeatability	Chromaticity value: MAV/SCI, ΔE*ab within 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error	MAV/SCI, within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles)
Measurement method	Single measurement, average measurement (2~99 times)
Locating method	Camera locating,stabilizer locating
Size	LxWxH=81X71X214mm
Weight	About 460g
Battery power	Lithium battery, 6000 times in 8 hours
Illuminant life span	5 years, more than 3 million times measurements
Display	TFT true color 3.5inch, capacitive touch screen
Data port	USB, Bluetooth® 5.0
Data storage	1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time), APP mass storage
Language	Simplified Chinese, English, Traditional Chinese
Operating temperature range	0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range	-20~50℃, 0~85%RH (no condensation)

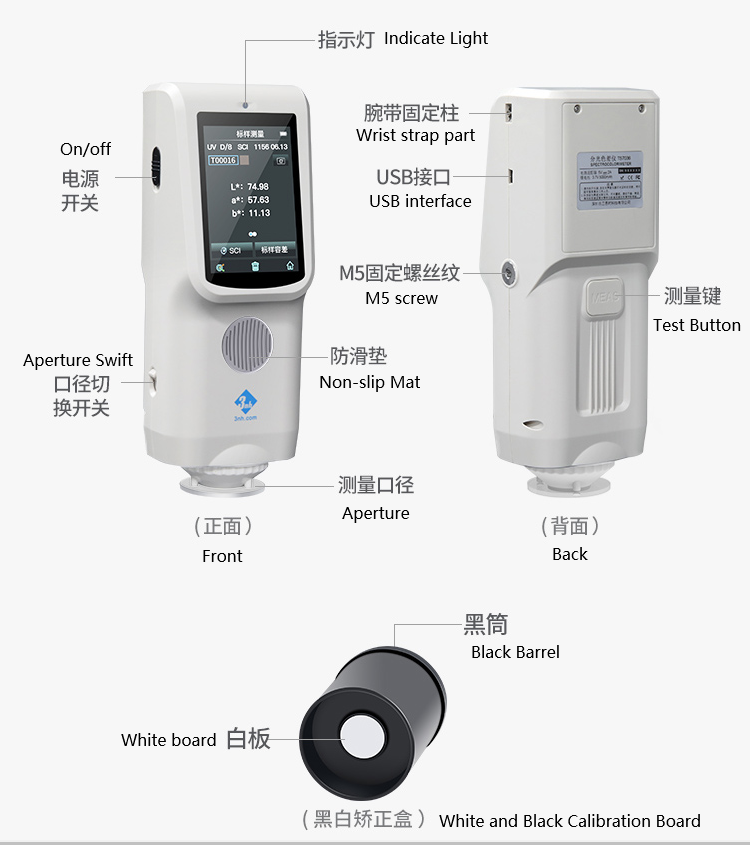

Standard Accessories	Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture, MOBCCS APP (official website download)
Optional Accessories	USB micro printer, powder test box, Bluetooth micro printer,holder base
Notes.	Technical parameters are for reference only, subject to the actual sales of products

Features

1. Silicon photodiode array (double 32 array) sensor.

2. Adopt full-band balanced LED light source.

3. Grating Spectrophotometric technology.

4. Place the base safely to ensure that the whiteboard is not dirty.

5. Professional whiteboard, a promise that will never change color forever.

6. Fast charging, built-in Li-ion battery.

7. Novel and fashionable appearance design based on ergonomics.

8. Equipped with 4/8mm dual measuring apertures to meet the measurement needs of different samples.

9. Camera locating, can clearly observe the measured area.

10. Massive color card database.

11. Excellent inter- instrument error and repeatability to ensure the consistency of measurement data of multiple equipment.

12. Multiple color spaces, multiple observation light sources.

13. Adopt the internationally used D/8 SCI/SCE synthesis technology.

14. Diversified data display.

15. Both Mobile App and SQCX quality management software.
