China 3nh colorimeter price NH310 cheap high accuracy color meter
for powder liquid color test with UTC
Information:

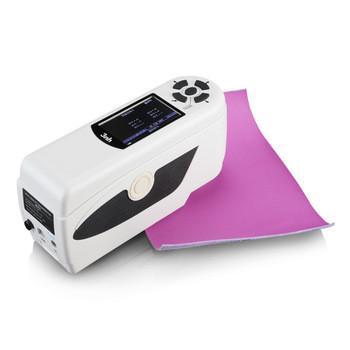

NH310 high-quality portable colorimeter has adopted multi-channel
color sensors of international brands, more stable IC platform as
well as efficient and accurate algorithms to provide users with
accurate and fast color management and application. NH310 is also
designed with ergonomics and humanized operation and it has applied
for a number of patents. NH310 is a multifunctional colorimeter
with high quality and competitive price. 3nh insists on independent
research whose technology innovation is unique in color management
field. NH310 is the most convenient colorimeter for users.
Potents:
No.1 Camera locating and illumination location (NH310 has new
functions of double locating.)
No. 2 Built-in white plate; Automatic calibration at startup (for
NH310)
No. 3 Extended aperture (optional), available for measuring concave
surface
Application:
NH310 colorimeter has many functions which can measure color
fastness, whiteness (Hunter and ISO R457), Yellowness (YI), etc.
However, we can also customize the following light sources for
customers. It's used to compare color difference in plastic,
electronic, painting, coating, ink, texile, garment, printing,
dyeing, food, medical, cosmetic industries and institutes, schools
and laboratoris.
Specification:
| Model | NH310 Colorimeter |
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ8mm/Φ4mm |
| Detector | Silicon photoelectric diode |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness |
| Color Difference Formula | ΔE*ab ΔL*a*b ΔE*C*hΔECIE94 |
| Light Source | D65 D50 A |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.40ΔE*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.06 Average of 30 measurements of standard white plate |
| Weight | 500g |
| Dimension | 205×70×100 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 2 hours (first time 8 hours--100% electricity) |
| Measurement Times Before Recharging | More than 3000 times |
| Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation |
| Data Interface | USB |
| Extended Aperture (optional) | Φ8mm extended aperture, available for measuring concave surface |
| Printer (optional) | Miniature thermal printer |
Images:
Company:
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We
research, develop, produce and market photoelectric detection
products in photoelectric detection technology field and color
management field.After years of intensice research, 3nh has
launched YS series spectrophotometer, NS series spectrophotometer
and NH, NR series colorimeter, ISO12233 resolution test chart,
optical image test solution and specific standard illuminant which
are widely used in plastic, electronic, paint, ink, textile,
garment, printing and dyeing, food, medical, cosmetic, optical
image test industries and the field of scientific research, school
and laboratory. Our products are exported around the world. We can
provide customization service which has been well received by
customers.
FAQ:
1. When I received NH310/NH300 colorimeter and perform measurement,
why the measured data is abnormal?
After receiving NH310/NH300, you have to perform white and black
calibration manually when first starting.
2. In which condition, manual white and black calibration and auto
calibration are required for NH310?
a. It’s needed to perform manual calibration for NH310 when first
starting.
b. In the subsequent starting, NH310 will perform auto calibration
at startup. No need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week
or when NH310 measured data is not accurate.
3. In which condition, manual white and black calibration for NH300
is required?
a. It’s needed to perform manual calibration for NH300 when first
starting.
b. In the subsequent starting, no need to perform manual
calibration.
c. Suggestion: it’s best to perform manual calibration once a week
or when NH300 measured data is not accurate.
4. How to replace NH310 measuring aperture?
There are three measuring apertures for NH310: Φ8mm (standard
accessory), Φ4mm (standard accessory), extended Φ8mm (optional
accessory)
a. Turning on
b. Removing measuring aperture, install the needed measuring
aperture.
c. Select “Settings-Aperture Setting” in main menu to select
corresponding measuring aperture.
d. After selecting aperture, the instrument will display “White and
Black Calibration” interface. White and black calibration must be
performed.
e. Replace completed.
5. CQCS3 (Color Quality Control System) Installation
a. Before installation, please Copy CQCS3 folder to your computer
and don’t remove any files in CQCS3 folder.
b. Double-click the setup.exe to install CQCS3 software.
c. Then double-click Install.bat under the CQCS3USB_Driver file to
install the driver.
d. Detailed installation information please read the "Installing
Software" under CQCS3 User manual.doc.
Warranty:
NH310 color reader colorimeter for liquid powder coffee colour
check with accessory is under warranty for 12 months from the
purchase date. Customers must provide warranty card and valid proof
of purchase.
