Long-tested Reliable Portable Colorimeter NH310 Precise Color
Reader
Technical Specification
| Parameters | Colorimeter NH310 |
| Optical Geometry | 8°/d |
| Measuring Aperture | Φ8mm & Φ4mm |
| Repeatibility | ΔE*≤0.06 |
| Inter-instrument Agreement | ΔE*≤0.4 |
| Measurement Range | L: 0-100 |
| Observer Angle | CIE 10° |
| Color Space | CIE LAB, CIE XYZ, CIE RGB, CIE LCh, CIE L*u*v |
| Color Difference Formula | ΔE*ab, ΔE*Ch, ΔE*CIE94, ΔE*Lab, ΔE*Hunter |
| Displayed Data | Colorimetric Value, PASS/FAIL Result, Color Offset |
| Other Chromaticity Data | White Index Yellow Index
Color Fastness |
| Illuminant | D65, D50, A |
| Illuminant Device | Combined LED Light |
| Illuminant Lifespan | 5 years, More than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Data Storage | 100 Standards, 2000 Samples |
| Data Port | USB |
| Display Size | TFT 2.7" |
| Working Temperature | 0~40℃(32~104℉) |
| Storage Temperature | -20~50℃(-4~122℉) |
| PC Software | CQCS3 |
| Weight | 500g |
| Dimension | 205*70*100mm |
| Battery | 3200mAh Large Capacity Li-ion Battery |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction,
CD-ROM(containing color management software), USB Cable, White and
Black Calibration Cavity, Protective Cover. |
| Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box |
Brief Introduction

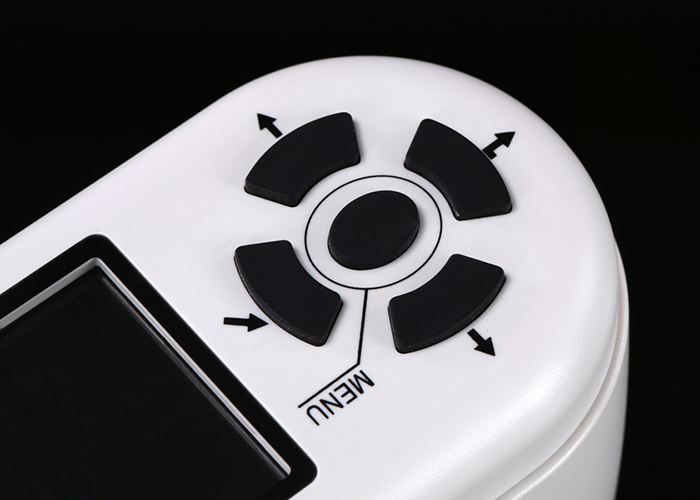

1. NH310 colorimeter features a 2.7" TFT screen with four buttons
beside which makes the operation quite simple, the interface quite
friendly. Elegant appearance combines perfectly with the ergonomic
design, which makes it a model of portable handheld colorimeter.
3. Repetitive error is less than 0.06ΔE*Lab, inter-instrument error
is less than 0.4ΔE*Lab, which make its stability and reliability of
measurement very good.
4. NH310 colorimeter is widely applied to color control in
different industries, such as plastics, painting and coating,
textiles, leather, food, furniture.
5. NH310 colorimeter also goes with a powerful PC software SQC8
which includes more extended functions that can enormously
facilitate your work.
6. With the configuration of universal test component and powder
test box, measurements of liquid, paste, powder and particle can be
implemented without hesitation.
Application Industry
Nowadays, color management instruments, like spectrophotometers,
colorimeters, have been widely applied to industries like painting,
lacquer, ink, coating, leather, paper, printing, plastics,
electronics, furnitures, wood, decorating, ceramics, tiles, metals,
hardware, marble, electroplating, package, food, cosmetics,
pharmacy, cloth, garments, textiles and traffic signage, etc. And
also, schools and laboratories need the color measuring instruments
to teach and study.
Frequently Asked Questions
1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design
and produce, market and sell color measuring instruments and gloss
meters. Our company and factory are located in Shenzhen which is
famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment
confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can
provide discount.
