Cheap digital color printing meter colorimeters for plastic paint
printing color analysis
Product Introduction:

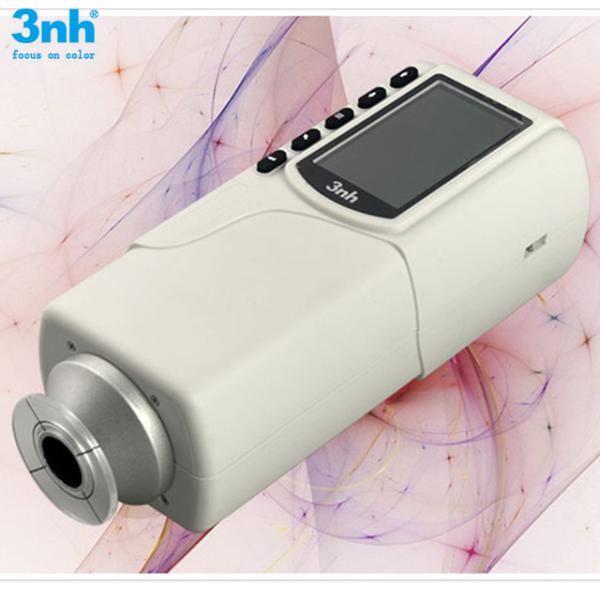

3nh NR20XE is a handheld colorimeter based on 45°/0° optical
geometry. Its measuring aperture is 20mm. NR20XE measuring aperture
is the biggest one in domestic. Meanwhile, it also has high
measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE
is a colorimeter with unique performance. The color measurement
results from NR20XE simulate human eyes but its accuracy is several
times higher than human eyes. NR20XE 45°/0 ° optical geometry
structures can reflect interactive effect between surface stripe
and sample color more effectively than 8°/d colorimeter. NR20XE
will eliminate the errors between human eyes and color tester
caused by surface stripe when judging tolerance critical value of
sample colors. Therefore, NR20XE is widely used in color field.
QC Department:
NR20XE can meet quality control requirements in plastic
(PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate,
coating, textile, fluorescent material, denim, medicine and food
industries, etc. It can help to control product color difference,
improve product competitiveness, reduce enterprises’ loss and
control production cost.
Applications:
Food, medicine, textile, non-woven fabrics, denim, dyeing and
printing, color steel plate, paper, plastic, chemical, coating,
ink, building material industries, etc.
Specification:
| Product model | NR20XE |
| Measuring geometry | 45 ° / 0 ° |
| Measure the diameter | 20 mm large diameter |
| Special function | Especially suitable for measuring surface texture and wet products |
| Positioning way | Light orientation and cross orientation |
| Detector sensor | Silicon photodiode array |
| Color space | CIEL* a*b*C*H* CIEL* a*b* CIE XYZ |
| Optional light source | D65 |
| The light source device | LED blue light excitation |
| repetitive | ≤0.08 E*ab to measure the average of 30 times of white standard
plate |
| Difference between instruments | 0.50 E * ab or less |
| storage | 100 standard samples, 20,000 samples, 500g |
| The weight of the | 500g |
| size | 205x67x80mm |
| The power supply | Rechargeable lithium-ion battery 3.7v@3200mah |
| Charging time | About 8 hours -100% charge |
| Measured times after charging | 3000 measurements in 8 hours |
| Lamp life | More than 1.6 million measurements were made in 5 years |
| Operating temperature and humidity range | -10~40C, 0-85% relative temperature (no condensation) |
| Storage temperature and humidity range | -20~50C, 0-85% relative temperature (no condensation) |
| Data interface | The USB interface |
| PC software | CQCS3 high-end color quality management software |
| Printer (optional) | Miniature thermal printer |
Features:
FAQ:
A1 We accept trade assurance,western union ,Visa master card and
tt. Trade assurance
can protect you, when you confirm the product then the money into
my account.
Q2 Do your product have warranty?
A2 Yes,all our products enjoy one year warranty protect.
Q3 When do you send the products? And how do you send it ?
A3 For the sample or small order, we will send out the goods with 5
days,If have stock ,we will send immediately. We send them by
ups,fedex,tnt or dhl.For big order,normal is 20 days will finish.
Q4 Are you trading company or factory?
A4 We are factory,all selling products we make them by ourself.
Price will direly to the bottom and guaranty the quality.
Q5 Do you accept OEM or revised logo,color,model,size?
A5 Yes,we accept OEM for the qualify buyer.We can make the products
according to customer personal requirement.
