Model | TS7600 |
Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
SCI (specular component included)/SCE (specular component excluded)
; excluded UV light source |
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM
E1164,DIN5033 Teil7 |
Characteristic | Customized one aperture, It is used for precise color measurement
and quality control in plastic electronics, paint and ink,
textile and garment printing and dyeing, printing, ceramics and
other industries, and for fluorescent sample measurement. |
Integrating Sphere Size | Φ40mm |
Light Source | Combined full spectrum LED light source, UV light source |
Spectrophotometric Mode | Flat Grating |
Senso | Silicon photodiode array (double row 40 groups) |
Wavelength Range | 400~700nm |
Wavelength Interval | 10nm |
Semiband Width | 10nm |
Measured Reflectance Range | 0-200% |
Measuring Aperture | Customized one aperture: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm |
Specular Component | SCI&SCE |
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) |
Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
YI(ASTM D1925,ASTM 313), |
Staining Fastness, Color Fastness, Color Strength, Opacity, |
8° Glossiness, |
Observer Angle | 2°/10° |
Illuminant | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) |
Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400
nm to 700 nm: within 0.2%) |
Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white
calibration plate is measured 30 times at 5 second intervals after
white calibration) |
Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles) |
Measurement Mode | Single Measurement, Average Measurement(2-99times) |
Locating Method | Camera Locating,stabilizer cross position |
Dimension | L*W*H=129X76X217mm |
Weight | Approx 600g |
Battery | Li-ion battery, 3.7v, 5000mAh, 6000 measurements within 8 hours |
Illuminant Life Span | 5 years, more than 3 million times measurements |
Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
Data Port | USB, |
Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
Language | Simplified Chinese, English, traditional Chinese |
Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
Storage Environment | -20~50℃, 0~85%RH (no condensing) |

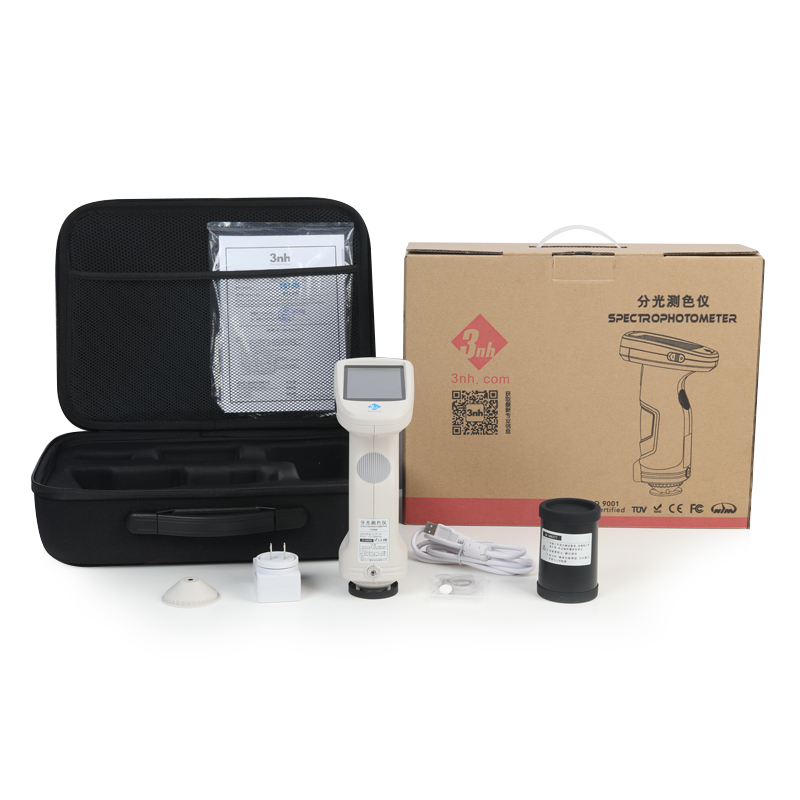

Standard Accessory | Power Adapter, User Guide, PC Software(Download from office
website), USB cable, White and Black Calibration Cavity, Protective
Cover, Wrist strap, One aperture (8mm or 4mm) |
Optional Accessory | Micro Printer, Powder Test Box |
Notes | The specifications are subject to change without notice. |
