Portable 3nh color measurement analysis instrument YS3060 precise
colorimeter manufacturer made in China
Product Specification:
| Model | YS3060 |
| Illumination/ observation system | reflect: di:8°. de:8° ( diffused illuminatiom, 8-degree viewing
angle); UV included/ UV excluded |
| Integrating sphere size | 48mm |
| Light source | Combined LED sources, UV souuces |
| Spectral Mode | Concave-grating |
| Sensor | 256 Image element double arrays CMOS image sensor |
| Wavelength range | 400~700nm |
| Wavelength interval | 10nm |
| Reflectance range | 0~200% |
| Half banwidth | 10nm |
| Measuring aperture | 8mm & 4mm |
| Color space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB |
| Color difference formila | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c),
ΔE(Hunter), WI(ASTM E313, CIE/ISO, AATCC, Hunter) |
| Other chrometric data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),
MI, strength, stainning fastness, cover ratio, 8° gloss value |
| Observer | 2°/10° |
| Illuminant | D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,
F11, F12,CWF, U30, TL83, TL84, U35 |
| Display data | Spectral value/graph, colorimetric value, color difference
value/graph, pass/fail result, color simulation, color index
setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt,
time setting, language setting, restore factory setting |
| Measurement time | Approx 1s ( approx 2.6s in SCI & SCE |
| Repeatability | Spectral reflentance: MAV/SCI, standard deviation within
0.08%(400~700nm: within 0.18%) Colorimetric value: standard deviation within ΔE*ab
0.03(measurement conditions: white calibration plate measured 30
times at 5 seconds intervals after white calibration was
performed.) |
| Errors between each instrument | within ΔE*ab 15.2 (MAV/SCI) (average for 12 BCRA series II color
tiles) |
| Measurement mode | Single measurement, average measurement (2~99 times) |
| Locate mode | Camere locating |
| Dimension | L*W*H=184**77*1050mm |
| Weigh | 600g |
| Battery | Li-ion battery, 5000 times within 8 hours |
| Lamp life | 5 years, more than 1.6 million measurements |
| Display screen | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/ RS-232, Bluetooth 4.0 |
| Data memory | 1000 standard, 15000 samples (SCI & SCE can be included in one
data) |
| Languages | Chinese & English |
| Operating temperature | 0~40 ℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |

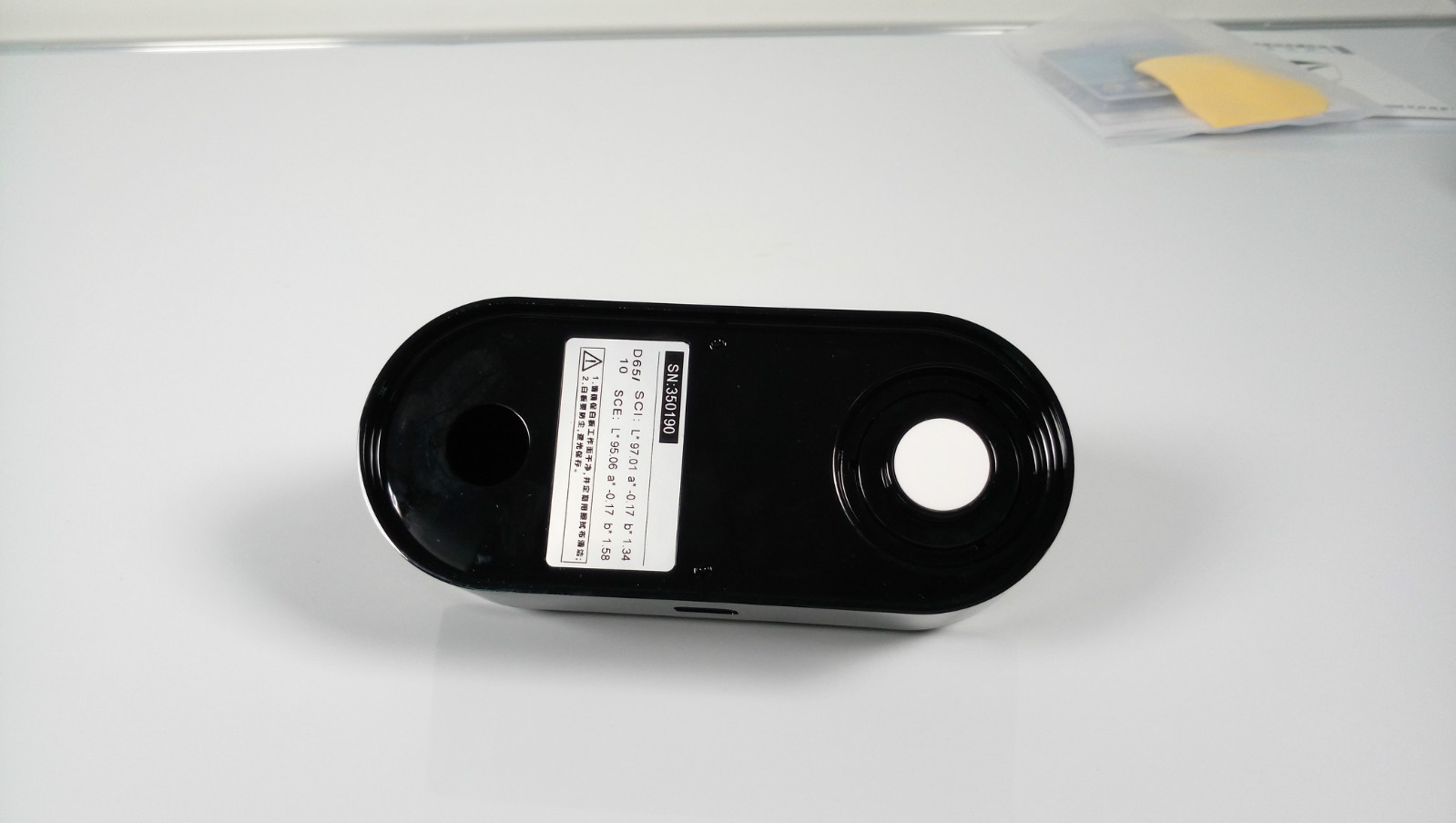

| Standard accessory | Power adaptor, li-ion battery, operating instruction, CD-ROM (
containing management software), white and black calibration
cavity, dust cover |
| Optional accessory | Universal test components, micro printer, power test box |
| Warranty | 1 year |
| Notes | The specifications are subject to change without notice. |

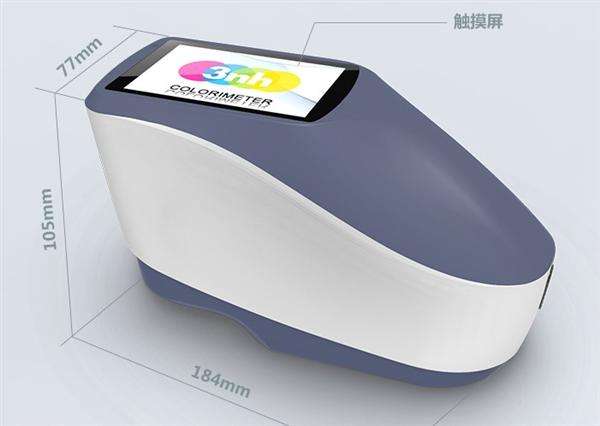

Product Images:
Product Introduction:
YS3060 spectrophotometer is developed by 3nh with indepandent
intellecual property rights. It features with stable performance,
precise measurement and powerful functions in the leading position
of the same industry. It can measure reflentande spectrum and other
color index precisrly. NS 810 spectrophotometer can not only help
to perform color matching management studies, but also control
product quality management accurately. The instrument is equipped
with high-end color management software which can connect PC to
achieve more extension functions.
It's used to compare color difference in plastic, electronic,
painting, coating, ink, textile, garment, printing, dyeing, food,
medical, cosmetic industries and institutes, schools and
laboratories.
Packing & Delivery:
| Size | 405*209*319mm |
| Gross weight | 2.95kg |
| Standard accessory | Power adapter, li-ion battery, operating instruction, CD-ROM (
containing management software), data line, white and black
calibration cavity and dust cover |
| Optional accessory | Universal test components, micro printer, power test box |
Company Information:
Shenzhen Threenh Technology Co., Ltd. is a high-tech enterprise. We
research, develop, produce and market photoelectric detection
products in photoelectric detection technology field and color
management field.After years of intensice research, 3nh has launched NS series
spectrophotometer and NH, NR series colorimeter, ISO12233
resolution test chart, optical image test solution and specific
standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment,
printing and dyeing, food, medical, cosmetic, optical image test
industries and the field of scientific research, school and
laboratory. Our products are exported around the world. We can
provide customization service which has been well received by
customers.
3nh cherishes talents, focuses on talents. Company brings together
many of high-level, high educated professionals. Among them,
undergraduate academic staffs of the total number of company
accounted for more than 80%; postgraduate staffs of the total
number of company accounted for 30%. It involves the fields of
photometry, electronic circuit, embedded system, photoelectric
detection, mechanical structure design, optical design, application
software, lighting technology electronic commerce and internet. 3nh
team has strong capability to design, develop and produce on its
own. The company has a large number of innovation patents, core
technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological
innovation, sustainable development” business philosophy to meet
customer demand continuously, to create value for customers and to
achieve win-win situation and common development.
Certificates:
ISO9001, CE, FCC, ROHS, TUV
Customer Confirmnation:
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green
and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue
abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates
from an accepted standards.The higher the dE, the more inaccurate
the color.
