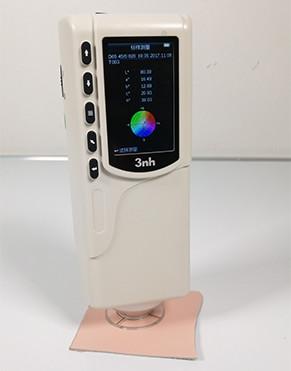

NR60CP Portable Chroma Meter Multifunctional Color Difference Meter
Colorimeter
NR60CP features high accuracy, powerful functions, and high
cost-effective to repay the support and trust of our customers.
Application :
NR60CP colorimeter is widely used in plastic, electronic, paint,
ink, textile, garment, printing and dyeing, food, medical,
cosmetic, industries, scientific research institutes, schools and
laboratories. It not only can precisely measure many kind of color
indexes in many color spaces, but also it is easy to use with
powerful functions. The instrument is equipped with high-end color
management software which can connect PC to achieve more extension
functions.
Features :
Specifications
Illuminating/Viewing Geometry: 8°/ d
Light Source: LED Light
Sensor: silicon photodiode array
Measuring aperture: Φ8mmflat aperture; Φ4mmtip aperture
Color Space:CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Color Difference Formula: ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc (
2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromaticity Data: WI ( E313,CI E, AATCC,Hunt er ),YI (
D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5:
1),FMCI I
Observer: CI E 10°
Illuminant: D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12
Display Data: Colorimetric Value, Color Difference Value/Graph,
PASS/FAIL Result, Color Offset,
Measuring Time: 0. 4s
Repeatability: ΔE* ab 0. 03 (Average of 30 measurements of standard
white plate within 5s)
Errors between each instrument: within Delta E*ab 0.2
Dimension: 205*67*80mm
Weight: 500g
Battery: rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life: 5 years, more than 1.6 million measurements
Screen: TFT 2.8 inch(16: 9)
Interface: USB/ RS- 232
Storage: 100 Standards, 20000 Samples
Operating Temperature:0~40℃(32~104°F)
Storage temperature:-20~50℃(-4~122°F)
PC software: CQCS3 software
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green
and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are
blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates
from an accepted standards.The higher the dE, the more inaccurate
the color.
