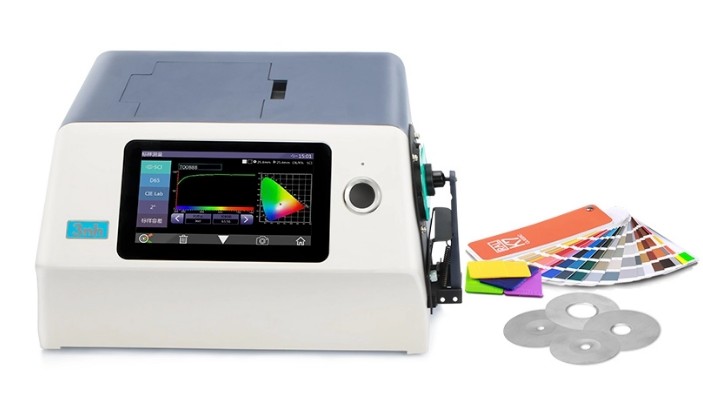

Laboratory drug analyzer liquid powder color analysis uv desktop
precise spectrophotometer YS6060
Brief Introduce:
YS6060 has many features, like 7 inches TFT capacitive touch screen
display, full illuminants, reflective d/8 and transmissive d/0
geometry(including or excluding UV). With very stable and precise
color measurement, large storage and powerful PC software all makes
YS6060 ideal for color analysis within R&D and laboratory
environments.

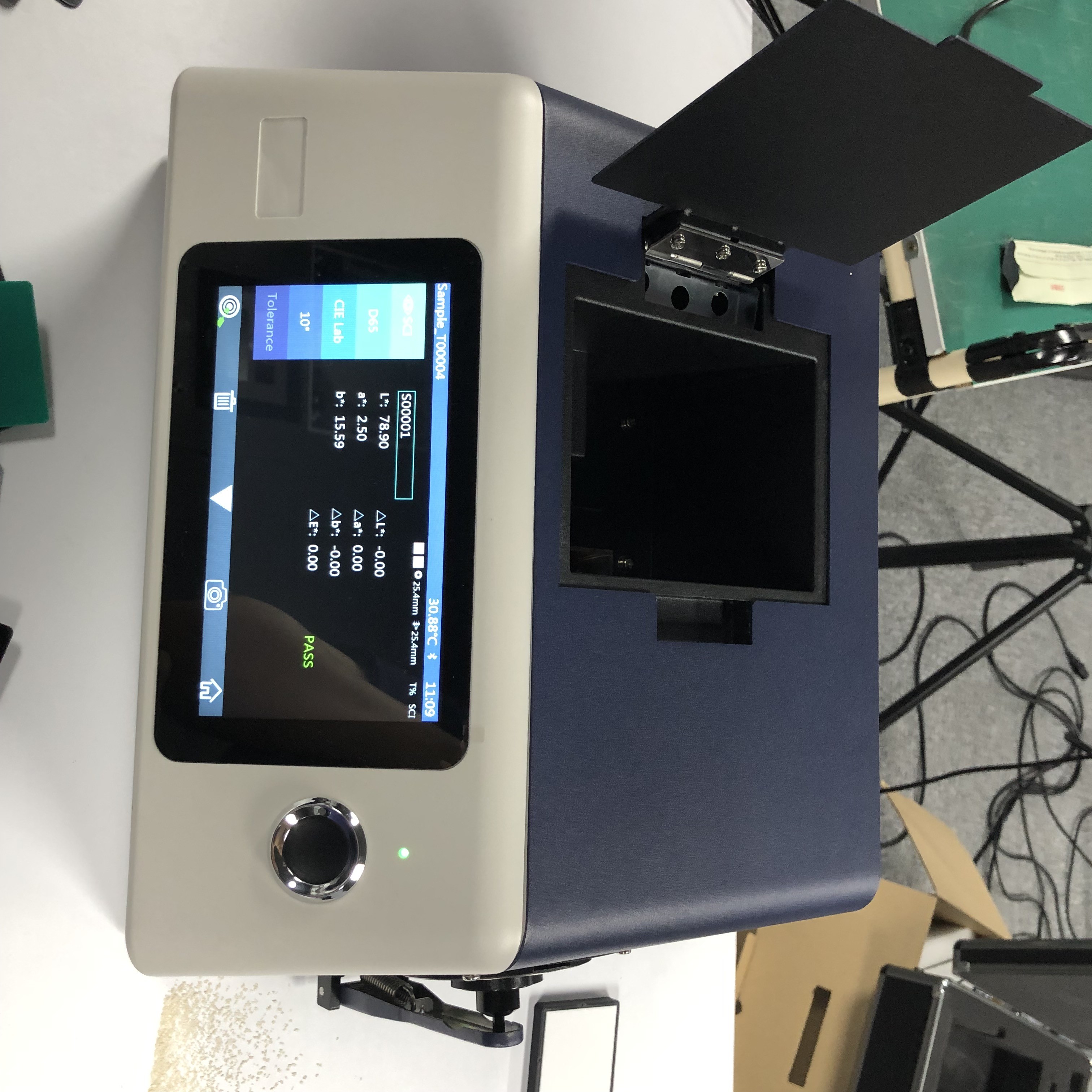

YS6060 benchtop spectrophotometer is used to do precise color
analysis and transmission in laboratories. It can be widely applied
in different industries, such as plastics, electronics, paint and
ink, printing, garments, leather, paper, auto, medical, cosmetics,
food, science institutes, laboratories.
Technical Specification:
| YS6060 | Specification |
| Optical Geometry | Reflectance: d/8 (SCI⪰ Include UV/Exclude UV) Transmittance: d/0 (SCI⪰ Include UV/Exclude UV) Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1,
ASTM E1164, DIN5033 Teil7 |
| Specular Component | Reflectance: SCI&SCE Transmittance: SCI&SCE |
| Integrating Sphere Size | Φ 154mm |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Light Source Device | 360nm-780nm Combined LED Lamp, 400nm cut-off, 420nm cut-off, UV
Lamp |
| Illuminants | D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9,
F10, F11, F12 |
| Spectrophotometric Mode | Concave Grating |
| Observer Angle | 2° & 10° |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05%
(400 nm to 700 nm: within 0.04%) Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.02 (When a white calibration plate is measured 30 times at 5
second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within
0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab
0.03 (When a white calibration plate is measured 30 times at 5
second intervals after white calibration) |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles) |
| Wavelength Range | 360-780nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive: Φ30mm/Φ25.4mm; |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB,
HunterLab, DIN, βxy |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter),
DIN ΔE99 |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference
Values/Graph, Pass/Fail Result, Color Offset |
| Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Gardner Index, Pt-Co Index, 555 Index, |
| PC Terminal Software | SQCX |
| Data Storage Capacity | Standard: 5000 Pcs; Sample: 40000 Pcs. (One PCS can include both SCI and SCE) |
| Data Port | USB & Bluetooth |
| Locating Method | Camera Locating |
| Measurement Mode | Single Measurement & Average Measurement |
| Screen | 7" TFT Capacitive Screen-touch Display |
| Light Source Device Life | 5 years, more than 3 million times measurements. |
| Power Supply | DC 24V, 2A Power Adapter |
| Size | 370×300×200mm |
| Weight | 16kg |
| Language | English & Chinese |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | White and Black Calibration Board, Checking Green Board, Sample
Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB
Cable, User Guide, PC Software |
| Optional Accessory | Micro-printer, Transmissive Test Clamp Component |
Q & A:
1. Whether 3nh are the original manufaturer for YS6060
spectrophotometer or not?
Yes, we are the an company with over 21 years experience in color
analysis machine.
2.What's your MOQ and for more order, is there any discount?
The MOQ for YS6060 is 1pc, more order more discount.
3. Are you welcome OEM and wholesale?
Since from 1998, Shenzhen 3nh Technology Co.,Ltd already have
partner around the world, we welcome OEM, we have special price for
wholesale if you need resell our machine.
4. How about the aftersale service?
Two years warranty for all of our machine.
5. What's about the lifetime for the machine?
The lifetime for the machine is about 8-10 years.
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green
and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue
abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates
from an accepted standards.The higher the dE, the more inaccurate
the color.
