    CIE Lab Color Difference Meter Quality Control Lab Equipment NR20XE 20mm Aperture Precision

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NR20XE
    Certification : CE,RoHs,ISO,etc
    Payment Terms : T/T,Paypal
    Supply Ability : 1000pcs/month
    Delivery Time : 2 works days
    • Product Details
    • Company Profile

    CIE Lab Color Difference Meter Quality Control Lab Equipment NR20XE 20mm Aperture Precision

    NR20XE 20mm aperture precision Colorimeter CIE Lab colorimeter color quality control lab equipment

    When testing products such as meat by ordinary colorimeter, the whole instrument body has to be placed in the object which not only stains the instrument, but also will let the liquid/water enter the instrument directly and bring cross contamination. However, NR20XE is a vertical structure. When measuring, it can make sure only the aperture touches the object which will not stain the instrument body.


    NR20XE Precision Colorimeter/precise CIE Lab colorimeter/Color quality control lab equipment

    Product Introduction

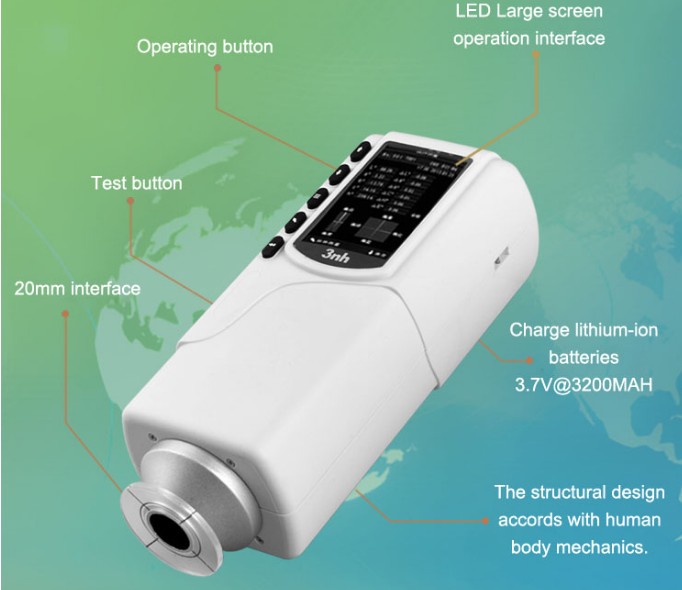

    3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.


    QC Department


    NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.


    Applications


    Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.

    Specification:

    3nhNR20XE Precision Colorimeter
    Illuminating/Viewing Geometry45°/0°
    Measuring ApertureΦ20mm
    Special FunctionEspecially suitable for testing surface stripe and wet products
    LocatingIllumination Locating/Cross Locating
    DetectorSilicon photoelectric diode
    LocatingIlluminating Locating/Cross Locating
    Color SpaceCIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
    Color Difference FormulaE*ab; L*a*b*; E*C*h*
    Light SourceD65
    Light Source DeviceLED blue light excitation
    Errors Between Each
    Equipment
    ≤0.50 E*ab
    Storage100pcs standards 20000pcs samples
    RepeatabilityStandard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
    Weight500g
    Dimension205×67×80 mm
    Power sourceRechargeable lithium-ion battery 3.7V@3200mAh
    Lamp Life5 years, more than 1.6 million measurements
    Charging TimeFirst charging time is 8 hours--100% electricity
    PC SoftwareCQCS3 Software
    Printer (optional)Miniature thermal printer
