D50 Printing Hangling Light Box CC120 Color light table with
optional light source: D65,TL84,U30
Brand: TILO
Made in China
Common Light source: D65,D50,U30
Replacement light source: TL84, UV, CWF ,TL83

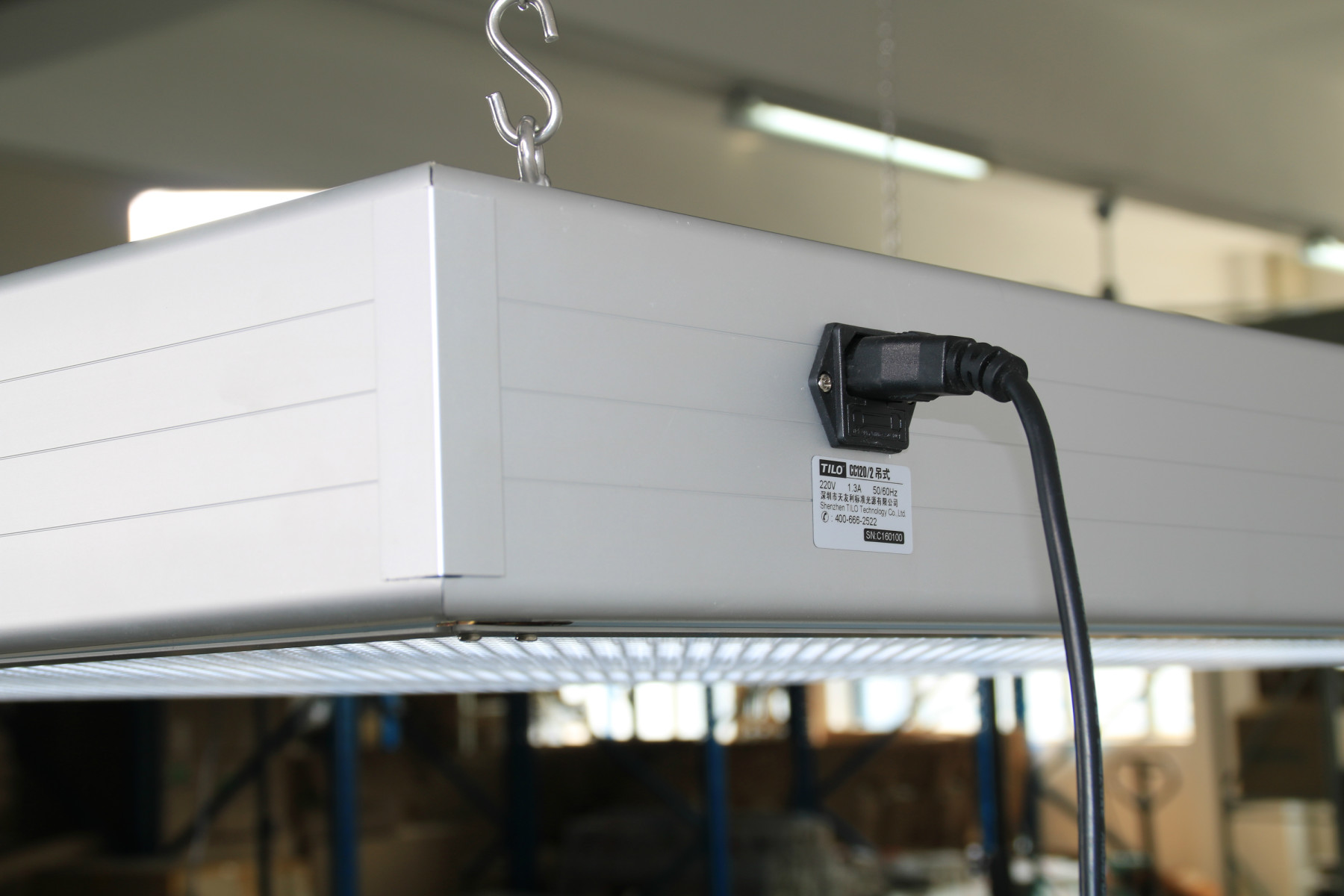

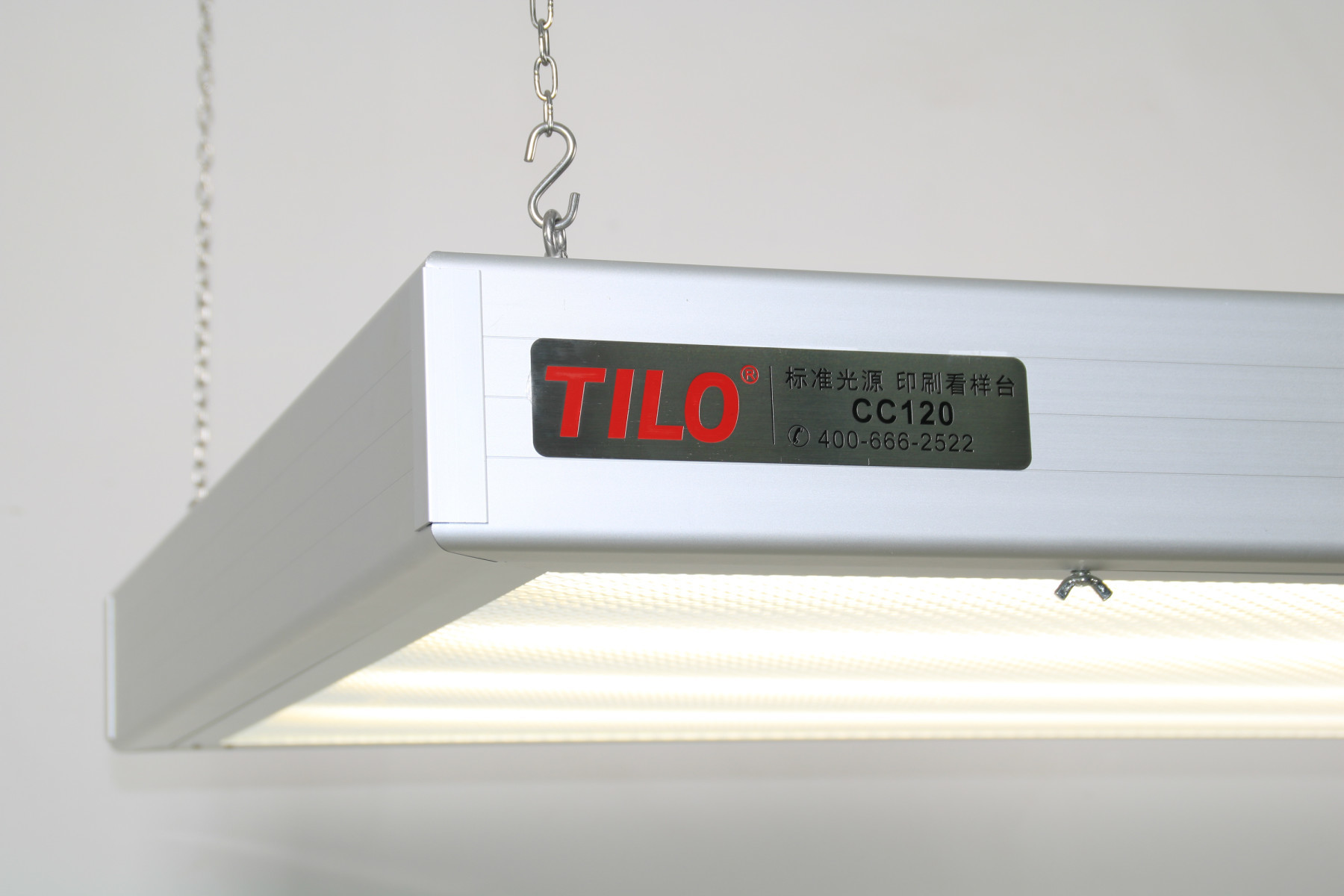

CC120-W Hanging Color Viewer light box is widely applies to
printing industry, furnishings and color matching of the printing
ink industry etc.. It is a necessity for those industry to control
the colors and qualities of products.
CC120-W hanging light box support 3 versions, single light source,
double light source, and 3 light sources. Standard light source is
D65, D50, U30, and we offer TL84, UV, CWF ,TL83 for optional. This

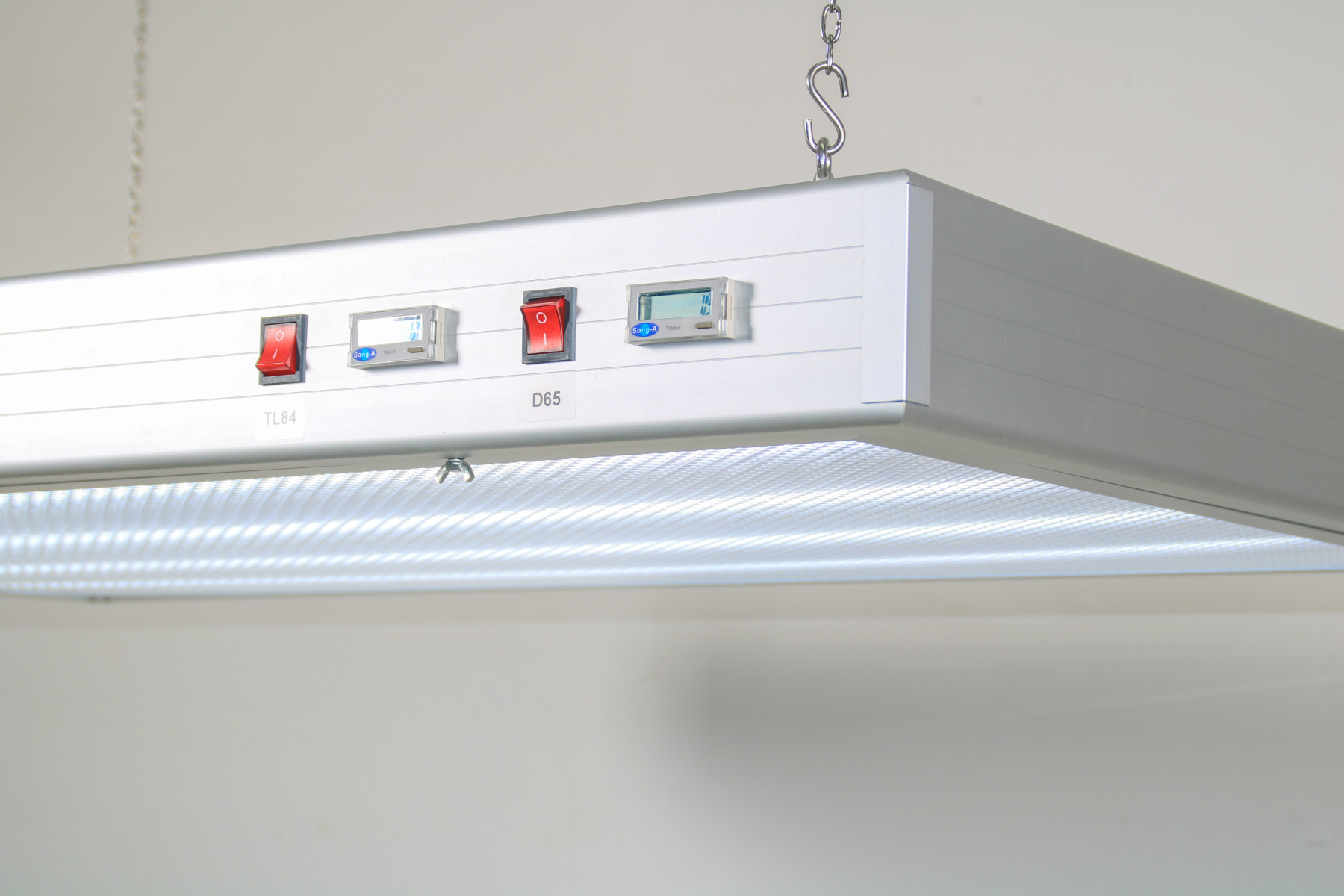

machine was controlled by microcomputer, which allows the rapid
conversion between each light source. The Color Viewer also had the
function of display the running time of each light source.
Light source
In different condition, the object may present different spectrum
with same color. Our vision result of the colors will be
differently, thereby it will affect us to judge the color
accurately by our naked eyes. While according to our customer’s
demand, the Color Viewer ,which is the international standard, can
provide the right light source you need when you check the colors,
such as D65,D50,TL84,UV,U30,CWF etc.. The life-span of lamp depends
on the accumulated running time and the turn-on times. When the
lamp becomes aging, light instability or the two sides turn black,
please replace the lamp timely, otherwise, the checking result will
be affected.
Lamp introduction:
Special artificial daylight source for printing
1.D50 standard light source lamp Simulate Daylight Warm daylight
◆High color rendering index CRI≥95 or CRI=98
◆According to ISO 3664:2009 printing standard observation
conditions
◆Graphica Pro, COLOR proof series for the exclusive use of imported
printing machine
60cm 18W/950 T8 Graphica Pro imported from Europe
120cm 36W/950 T8 Graphica Pro imported from Europe
2.D65 standard light source lamp Simulate Daylight Cold daylight
◆High color rendering index CRI≥95 or CRI=98
◆According to ISO 3664:2009 printing standard observation
conditions
◆Special light source for color viewer and color light box,T60+
P60+ CC120 series
60cm 18W/965 T8 Graphica Pro imported from Europe
120cm 36W/965 T8 Graphica Pro imported from Europe
Other common light sources
CWF light source lamp (4150K, cool white fluorescent, US store
light source)
TL84 light source lamp (4000K, European and Japanese store lighting
source)
U30 light source lamp (3000K, American store lighting source)
U35 light source lamp (3500K, designated light source of United
States Target Department)
Light source tube (UV source for the detection of products using
fluorescent and whitening dyes)
A light source bulb (2856K,American shopwindow spotlight/home
incandescent light,color reference light source)
Technique Parameter
Light source: imported fluorescent lamp
36W D65 *4
36W D50 *4
36W U30 *4
Remark: D65, D50, U30, TL84, U35, UV, TL83, CWF optional.
| Light Source | D65 | D65 & D50 | D65 & D50 & U30 |
| Tubes | D65 6500K 36W | D65 6500K 36W D50 5000K 36W | D65 6500K 36W D50 5000K 36W U30 3000K 36W |
| Power | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ |
| Wortable Size (cm) | 133*97 | 133*97 | 133*97 |
| Size (cm) | 133* 102*216 | 133* 102*216 | 133*102*216 |
About Light Sources:
| Light Source | Color Light Box Application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 36 |
| D50 | International standard Artificial Daylight | 5000 | 36 |
| U30 | Cool White Fluorescent | 3000 | 36 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 36 |
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
| F | "Sun-setting Light Yellow" incandescent light source(imitation of
sunset) | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical
brighteners or fluorescent pigments | Wavelength:365nm | 20 |
| TL83 | Applied to stores in Europe | 3000 | 18 |
